Datalogic AV500/AV900 Series Linear Camera

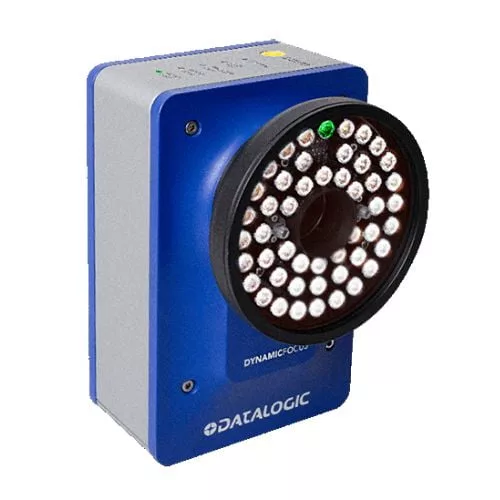

Datalogic AV500 / AV900 – Industrial Linear Cameras for Logistics and Transport

Datalogic AV500 and AV900 are part of the new generation of industrial linear cameras for logistics, transport and retail applications, being ideal for automatic sorting, traceability, OCR and high-speed scanning.

• AV500: equipped with a 5 MP CMOS sensor, up to 32 FPS, multiple C-Mount lenses (16/25/35 mm), fixed or dynamic focus, and white or red illumination without flash.

• AV900: offers superior resolution through a 9 MP CMOS sensor, up to 32 FPS, dynamic/sequential focus and 25/35 mm lenses for extended coverage.

Both models feature advanced software features such as PackTrack™ to minimize the distance between objects, next-generation decoding algorithms for 1D, 2D, postal codes or stacked, and e-GENIUS™, the multi-platform web interface that simplifies configuration and monitoring.

Key Features – AV500 & AV900:

• Image sensor: 5 MP (AV500) / 9 MP (AV900)

• Frame rate: up to 32 fps

• Lenses: 16/25/35 mm (AV500), 25/35 mm (AV900)

• Illumination: integrated, white or red, no flash

• Codes supported: 1D, 2D (DataMatrix, QR, MicroQR), stacked (PDF417, MicroPDF417), international postal codes

• Processor: Intel Quad-Core, Linux OS, 8GB RAM + 32GB eMMC

• Connectivity: 2 x Ethernet TCP/IP, 2 x serial, SyncNet™ (Master/Slave), GigE Vision

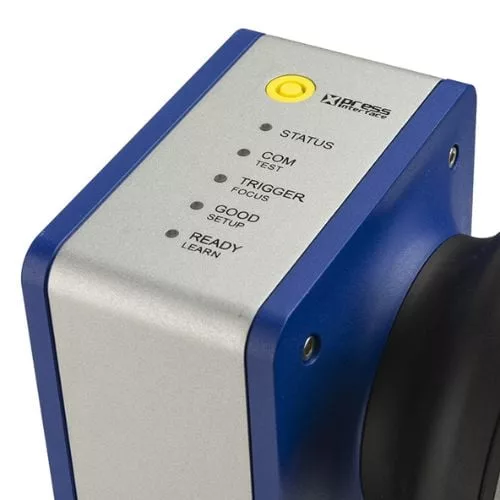

• Operator feedback: visual indicator „Green Spot”

• Protection: IP65, shock and vibration resistance, operation 0–50 °C

• Dimensions: 200 × 126 × 130 mm, weight 2.9 kg

Recommended applications:

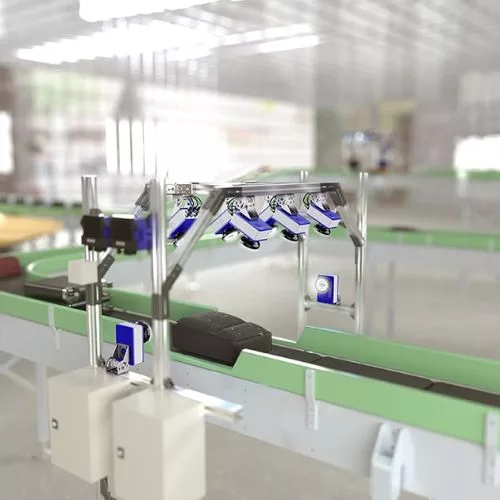

• Transport & Logistics: automatic/manual sorting, DWS (dimension/weight/scanning), OCR, videocode, parcel and container traceability.

• Retail & Distribution: order verification, multimedia sorting, reverse logistics Airports: baggage systems, automatic label reading Model differences: Model Sensor resolution Available lenses Application range: AV500 5 MP, 32 fps 16/16 25 / 35 mm standard logistics, OCR, sorting AV900 9 MP, 32 fps 25 / 35 mm high-end applications, dense codes, detailed images
