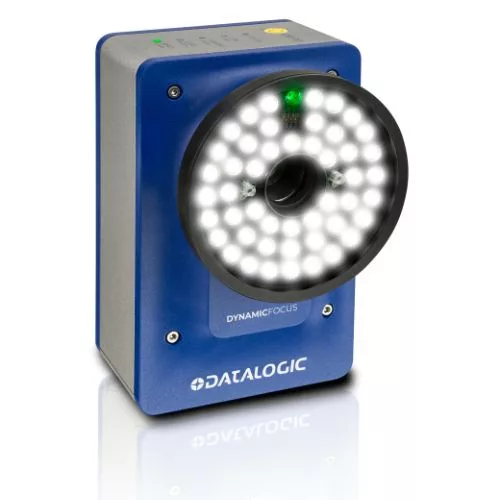

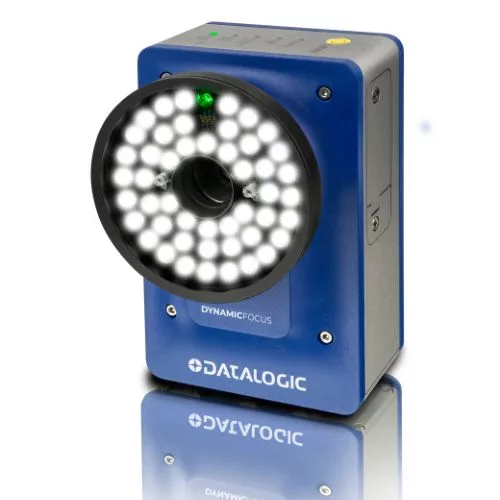

Datalogic AV500-166W (938000007) – 5MP Industrial Line Array Camera with 16mm Lens and White Illumination

Datalogic AV500-166W (code 938000007) is a 5 megapixel industrial line array camera from the AV500 range, developed for high-speed scanning, logistics and automated inspection applications.

Equipped with a 16mm f/6 lens and integrated white LED illumination, the camera is optimized for wider fields of view, ensuring accurate and fast capture of 1D and 2D codes even on large packages or objects at variable distances.

Integrated technologies, such as PackTrack™ for reading of objects located very close to each other and the e-GENIUS™ web interface for remote configuration and monitoring, transform this model into an extremely versatile solution for demanding industrial environments.

Technical specifications – Datalogic AV500-166W (938000007):

• Model: AV500-166W

• Product code: 938000007

• Sensor: CMOS 5 MP, up to 32 fps

• Lens: 16mm, f/6 (C-Mount)

• Illumination: Integrated white LED (without flash)

• Supported codes: 1D, 2D (QR, DataMatrix, MicroQR), stacked (PDF417, MicroPDF417), international postal codes

• Processor: Intel Quad-Core, Linux OS, 8GB RAM, 32GB eMMC

• Connectivity:

  • 2 x Ethernet TCP/IP

  • 2 x serial ports

  • SyncNet™ Master/Slave

  • GigE Vision

• Protection: IP65 – dust and moisture resistance

• Operating temperature: 0°C – 50°C

• Dimensions: 200 × 126 × 130 mm

• Weight: 2.9 kg

Main features:

• Wide field of view thanks to 16mm lens

• White LED illumination – clear images without the need for external flash

• PackTrack™ – accurate reading even on lines with close objects

• e-GENIUS™ Web interface – easy configuration from PC, tablet or smartphone

• Robust IP65 construction – suitable for warehouses and logistics lines

Recommended applications:

• Logistics centers – automatic sorting of parcels and pallets

• Transport and courier – fast reading on high-speed lines

• Retail & distribution – order verification and traceability

• Airports – baggage and container label scanning

• DWS Systems (Dimension, Weigh, Scan)

🔹 Datalogic AV500-166W (938000007) is the ideal choice for applications where wider visual coverage and reliable reading performance are needed, îin a compact and robust design.
