Carl Valentin DPM IV printing module

Carl Valentin DPM IV Printing Modules

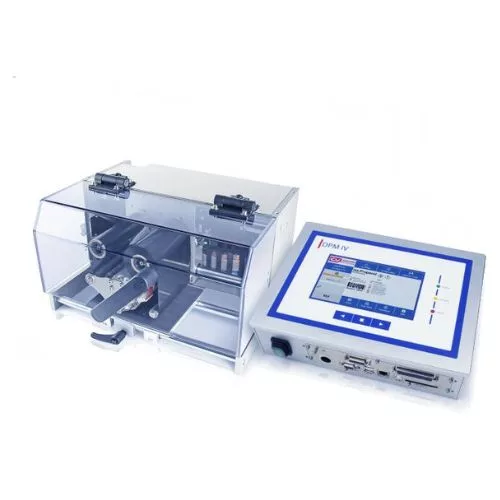

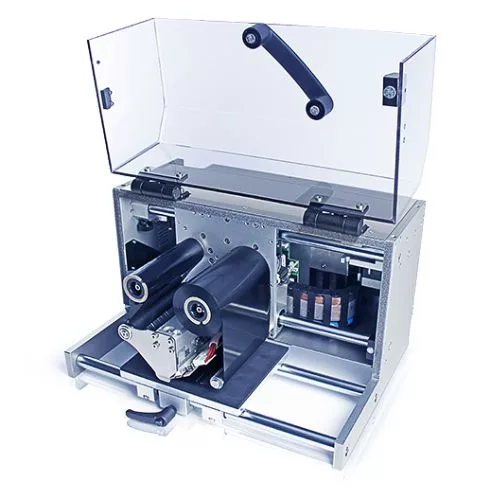

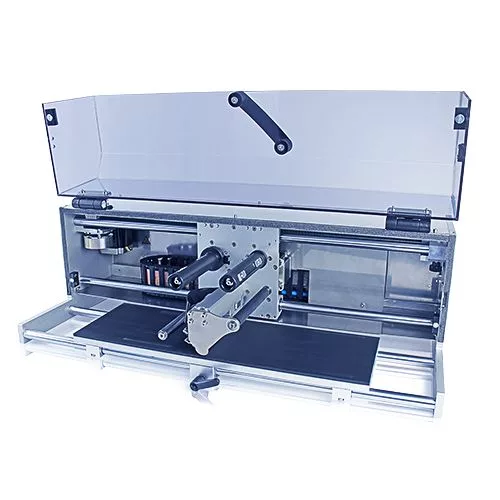

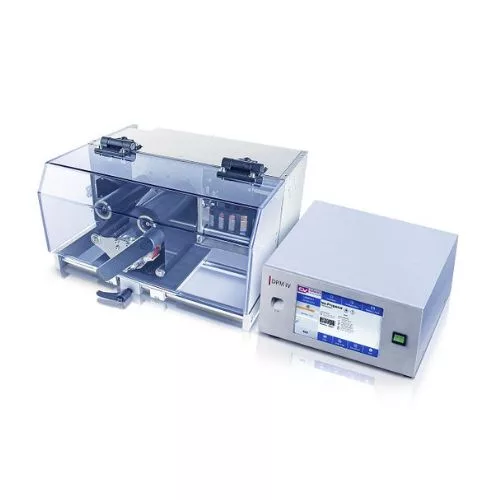

The Carl Valentin DPM IV series is the new generation of direct printing modules on packaging film, specially designed for integration into industrial production and packaging lines. Developed based on the DPM IIIxi series, the DPM IV brings a more stable print mechanism, faster print and return speeds and a 7″ color touch display with an intuitive interface and WYSIWYG layout preview.

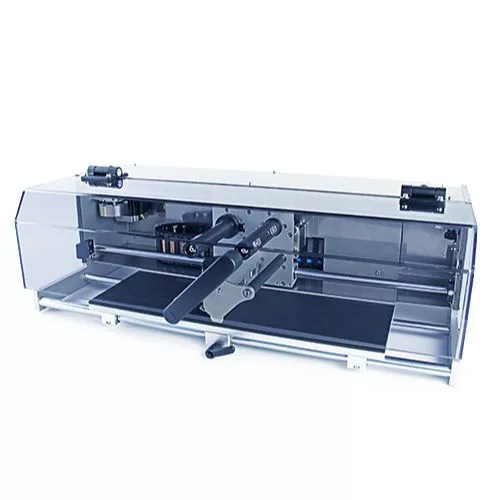

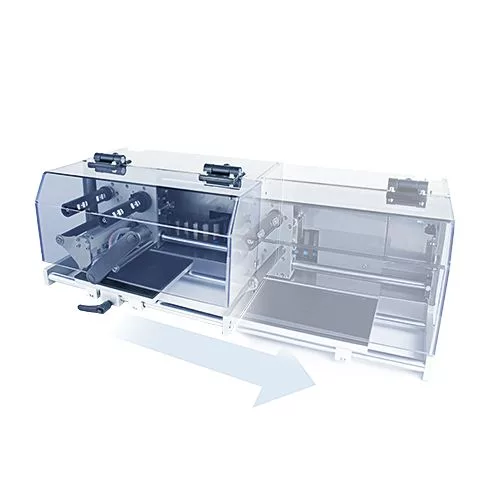

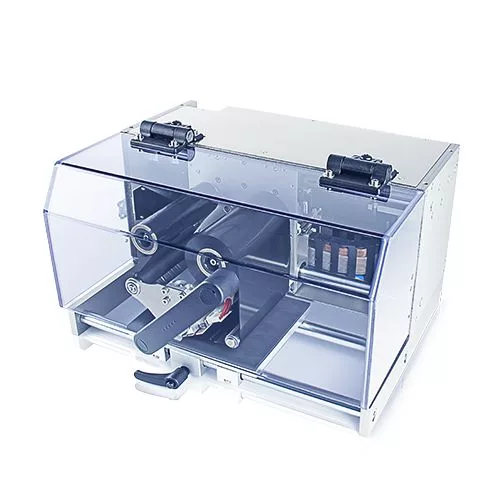

The DPM IV modules print directly onto film via thermal transfer, at 300 dpi resolution, with print widths of 53.3 mm, 106.6 mm and 128 mm, and with configurable print lengths: 140, 240, 340, 447, 570 or 630 mm, îdepending on the model.

Due to the extended model range – different widths, right/left orientation, panel or desktop housing – the DPM IV series covers a very wide range of applications: from batch codes and expiration dates to 1D/2D barcodes and complex traceability marks.

Main advantages of the DPM IV series

• High resolution printing – 300 dpi
  Ideal for small texts, symbols and perfectly legible barcodes.

• High speed: up to 500-700 mm/s (depending on model)
  The DPM IV series achieves 50-500 mm/s, respectively 50-700 mm/s, allowing a very high number of cycles per minute on fast packaging lines.

• Complete range of print widths and lengths

  • Print widths: 53.3 / 106.6 / 128 mm

  • Print lengths: 140, 240, 340, 447, 570, 630 mm
    Thus, both compact applications and wide labels on foils can be covered large.

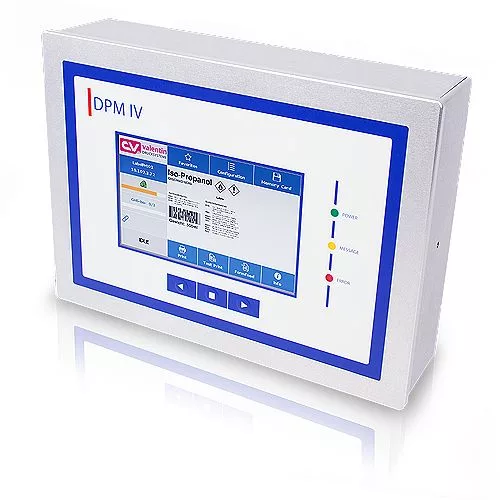

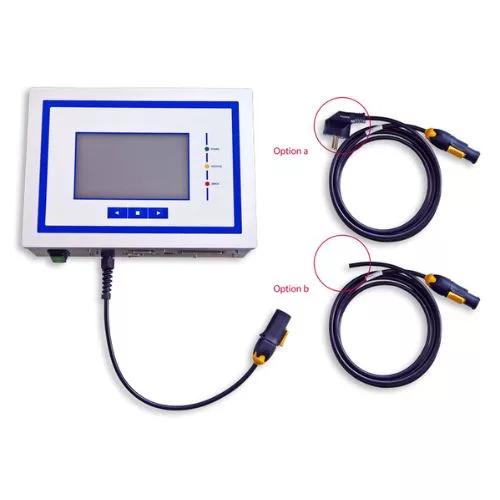

• 7″ color touchscreen
  800×480 px color display with graphical interface with icons, favorites list and intuitive menu for settings, diagnostics and print status.

• Ribbon saving & low operating costs
  Transfer ribbon saving, remaining length display, maximum ribbon length 450 m and roll diameter 85 mm – resulting in fewer downtimes and optimized cost per print.

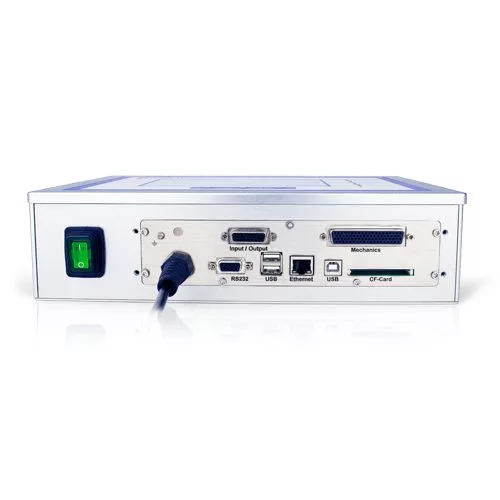

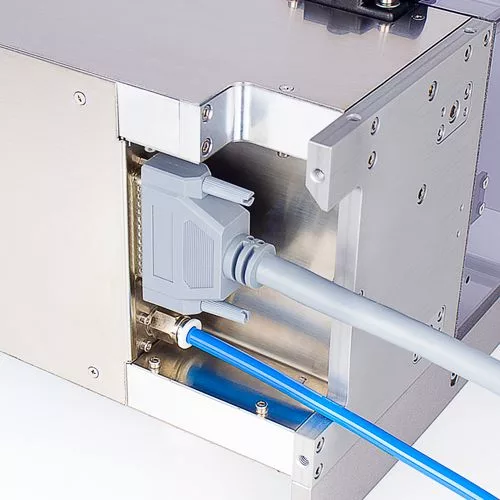

• Full industrial connectivity

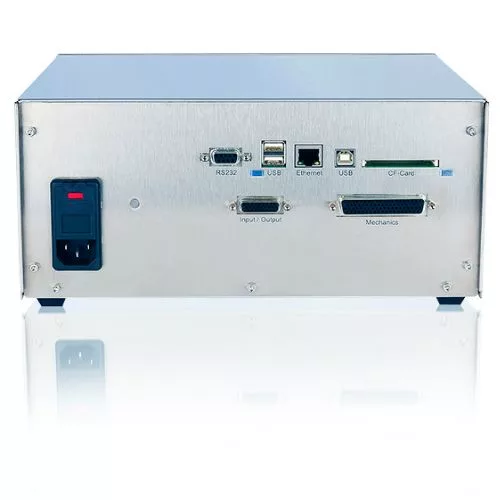

  RS-232C, USB 2.0 High Speed, Ethernet 10/100, 2× USB Master, plus LPD, RawIP, DHCP, HTTP, FTP protocols – easy to integrate îin PLCs, SCADA, WMS etc.

• Reliability îin industrial environment

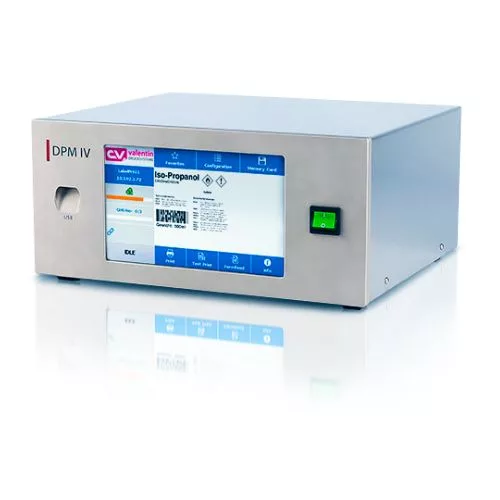

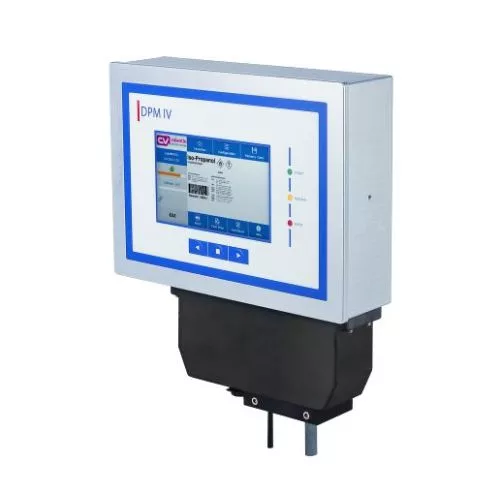

  Robust design, Corner Type printhead, average noise 75 dB(A) and panel/desktop housings for secure mounting îin electrical cabinet or tabletop.

Main technical specifications – Carl Valentin DPM IV

Models available – Carl Valentin DPM IV series

All models below are based on the same DPM IV platform (same electronic and structural characteristics), the differences being print width (53 / 107 / 128 mm), orientation (right/left) and case type (panel / desktop, different lengths).

1. DPM IV 53/12 – width 53.3 mm

Right orientation – print width 53 mm, various housing types:

• Panel / desktop housing, length 140 mm:

  • 9068101, 9068121, 9068111, 9068131, 9068102

• Desktop housing 240 mm / 340 mm / 447 mm:

  • 9068122, 9068103, 9068123, 9068104, 9068124

• Panel / desktop housing 570 mm / 630 mm:

  • 9068106, 9068126, 9068107, 9068127

• Compact / OEM versions with full connectivity:

  • 9068151, 9068171

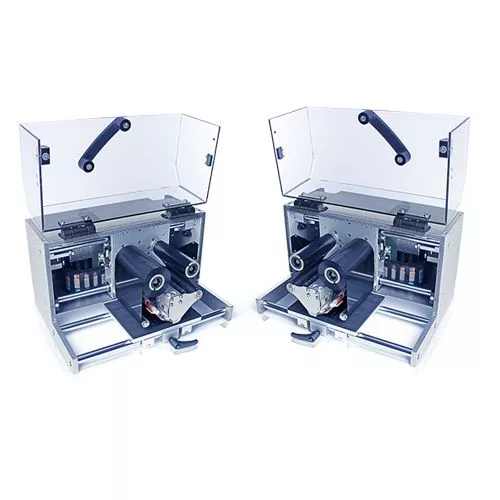

Left orientation (Left) – same basic specifications, mirrored mounting:

• Without housing / desktop housing / panel, various lengths:

  • 9068161, 9068181, 9068152, 9068172, 9068153, 9068173,
    9068154, 9068174, 9068156, 9068176, 9068157, 9068177

2. DPM IV 107/12 – width 106.6 mm

Right orientation – for medium width labels:

• Panel housing 140-630 mm:

  • 9068201, 9068202, 9068203, 9068204, 9068206, 9068207, 9068211, 9068212

• Desktop housing 140-630 mm:

  • 9068221, 9068222, 9068223, 9068224, 9068226, 9068227, 9068231, 9068232, 9068233

• Industrial variants with advanced functions, positioning sensor, etc.:

  • 90682110

Left orientation – same performance, reverse assembly:

• Panel case 140–570 mm:

  • 9068251, 9068252, 9068253, 9068254, 9068256, 9068257, 9068261

• Desktop case 140–630 mm:

  • 9068271, 9068272, 9068273, 9068274, 9068276, 9068277, 9068281, 9068282

3. DPM IV 128/12 – width 128 mm

Right Orientation (Right) – for wide labels, lots of information or large codes:

• Panel housing 140-630 mm:

  • 9068301, 9068302, 9068303, 9068304, 9068306, 9068307, 9068311

• Desktop housing 140-630 mm:

  • 9068321, 9068322, 9068323, 9068324, 9068326, 9068327, 9068331

Left Orientation (Left) – for lines with inverted mechanical configuration:

• Panel housing 140-570 mm:

  • 9068351, 9068352, 9068353, 9068354, 9068356, 9068357, 9068361

• Desktop housing 140-630 mm (including versions without cover / without sensor):

  • 9068371, 9068372, 9068373, 9068374, 9068376, 9068377, 9068381
