Carl Valentin DPM IV 53/12 right 140 mm Printing Module – Panel housing 9068101

Printing Module Carl Valentin DPM IV 53/12 right 140 mm – Panel housing (9068101)

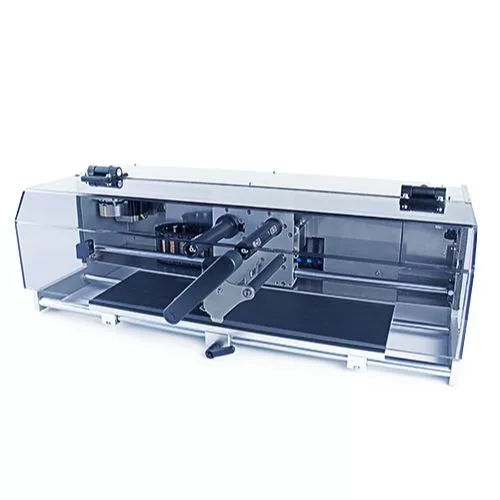

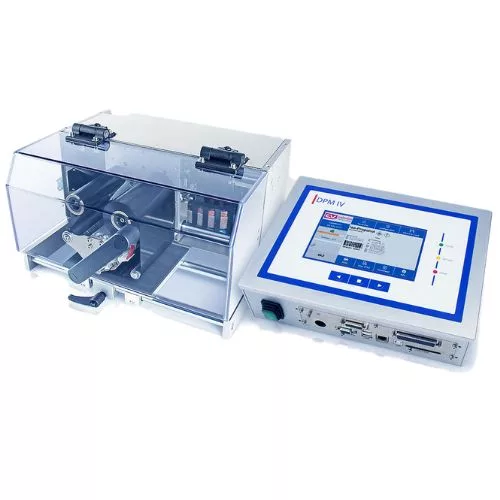

The Carl Valentin DPM IV 53/12 right 140 mm module – Panel housing (code 9068101) is an industrial printing module for direct printing on packaging foil by thermal transfer, developed for integration into automated production and packaging lines.

It is part of the DPM IV family, the newest generation of Carl Valentin print modules, which brings:

• 300 dpi resolution,

• printing width up to 53 mm,

• speed up to 500 mm/s (depending on application),

• 140 mm print length, ideal for compact marking areas.

The Panel housing version means that the control unit is designed for panel / electrical cabinet door mounting, making it the perfect module for machine manufacturers (OEMs) and packaging line integrators. The right orientation indicates the positioning of the print head and the direction of film flow î in relation to the module.

Main advantages DPM IV 53/12 right 140 mm

• Printing at 300 dpi
  Ensures excellent quality for small texts, logos and barcodes (EAN, Code 128, QR, DataMatrix, etc.), easy to read and scan.

• Compact print format – 53 × 140 mm
  Ideal for classic markings: production date, expiration date, batch, internal code, quality stamp, pictograms and symbols.

• High working speed
  Depending on the parameters and layout, the module can reach up to ~500 mm/s, sufficient for fast packaging lines.

• Panel housing

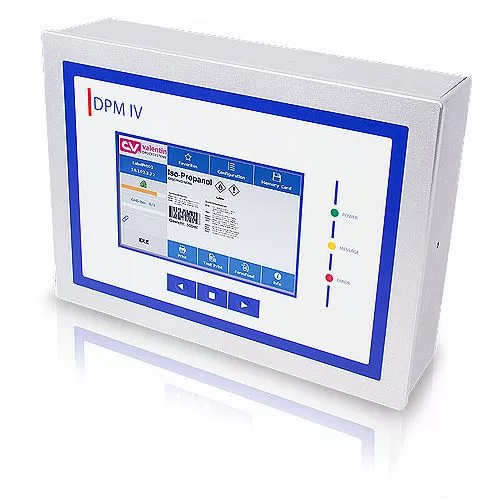

  The control unit is prepared for direct mounting in the electrical panel, with front access to the display and buttons – clean and professional solution for OEMs.

• Right orientation
  Designed for machines where the module is mounted on the right side of the film or where the packaging direction requires this type of orientation.

• Full industrial connectivity
  DPM IV supports USB, RS232, Ethernet and digital I/O, which allows easy integration with PLCs, labeling systems and MES/WMS applications.

• Optimum operating cost and simple maintenance
  Uses long ribbons (up to 450 m), with consumption optimization features, and allows easy cleaning of the print head print.

Recommended applications

The DPM IV 53/12 right 140 mm Panel housing – 9068101 module is suitable for:

• Food industry – bags, foils, trays, flow-pack, where expiration dates and batches need to be printed quickly.

• Pharmaceutical and cosmetic industry – traceability markings, barcodes and 2D codes directly on the packaging.

• Automotive, electronics, general manufacturing – internal codes, quality markings, product identification on the packaging.

• Integrators and OEMs – ideal solution for customized machines, where the module is integrated îin the panel and controlled by the PLC.

Technical specifications – DPM IV 53/12 right 140 mm Panel housing (9068101)
