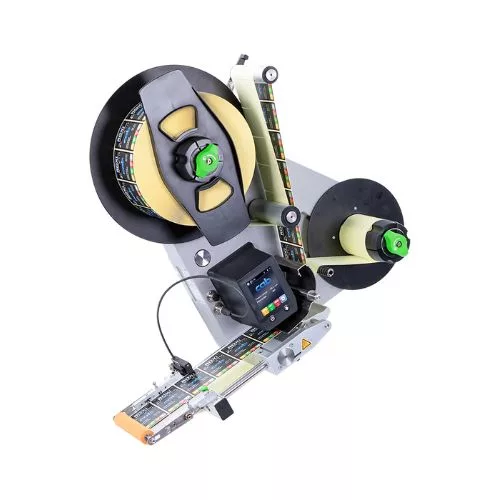

CAB ROXI Industrial Label Dispenser: Advanced Solution for Automatic Labeling
The CAB ROXI industrial label dispenser is designed to ensure fast, accurate and reliable label application in industrial production environments. With a compact and modular design, this equipment is easy to integrate into production lines and offers intuitive operation in 11 different languages. Equipped with advanced speed control and automatic synchronization functions, CAB ROXI optimizes labeling processes, ensuring increased productivity and reduced human errors.
Main Features
✅ Compact and Versatile Design: Designed for vertical, horizontal or inclined installation, in left or right versions.
💪 Reliability and Durability: Functional modules tested and assembled in Germany, designed for intensive industrial use.
🔧 Easy Maintenance: Firmware updates are quickly carried out via Ethernet or USB interface.
💸 Economical Solution: All functions and software interfaces are included as standard, at no additional cost.
🚀 Dynamic Control of Speed: The integrated encoder synchronizes the label feed with the speed of the products on the conveyor.
🔒 Guaranteed Safety: CE, CB and ULus certified by authorized testing laboratories.
Operation and Interface
💡 Intuitive Navigation: The user-friendly interface allows quick access to the main functions and detailed settings through a self-explanatory menu.
🌐 Advanced Data Interfaces: MQTT, Modbus and OPC UA compatibility for cross-platform interaction and real-time data update.
💻 Remote Control: Via VNC, users can control the dispenser from a PC, external panel or the main controller of the machine.
🌍 Web Access: Possibility to make backups and access the device documentation directly through the web interface.
Key Features
- Speed Synchronization: Labels are applied in synchronization with the speed of the products on the conveyor belt.
- Precise Positioning: Multiple labeling capability and setting the label position on the product.
- Error Detection: Integrated sensors identify missing labels and automatically stop feeding.
- Counter Batches: Automatic stop function after a specified number of labeled products.
- Service Tools: Maintenance assistant, video tutorials and diagnostics by displaying the status of inputs and outputs.
Technical Specifications
| Model | ROXI 120 | ROXI 180 |
|---|---|---|
| Feeding Speed | Up to 30 m/min | Up to 20 m/min |
| Orientation Mounting | Vertical / Horizontal | Vertical / Horizontal |
| Application Direction | Left (L) / Right (R) | Left (L) / Right (R) |
| Label Width | 10 – 116 mm | 10 – 176 mm |
| Length Tags | 10 – 6,000 mm | 10 – 6,000 mm |
| Material Thickness | 0.055 – 1.0 mm | 0.055 – 1.0 mm |
| Roll Weight | Up to 12 kg | Up to 12 kg |
| Outer Diameter | 300 mm (unwinder), 200 mm (winder) | 300 mm (unwinder), 200 mm (twisting) |
| Power Supply | 100 – 240 V~, 50 – 60 Hz | 100 – 240 V~, 50 – 60 Hz |
| Operating Temperature | 0 – 40 °C / Humidity: 10 – 85% | 0 – 40 °C / Humidity: 10 – 85% |
| Protection Class | IP40 | IP40 |
| Device Weight | 12 kg | 13.5 kg |
Connection Interfaces
- USB Hosts: Connection for USB sticks, external control panel and WLAN sticks.
- Ethernet TCP/IP: Fast data transmission and remote control.
- I/O Interface: Digital inputs and outputs according to IEC/EN 61131-2, protected against reverse polarity and short circuits.
- START: Start signal for automatic labeling.
- SYNC: Synchronization with conveyor speed via encoder.
- PRINT & APPLY: Interface for printers and transfer units.
- STOP: Inductive sensor for label detection and process stop.
Options and Accessories
- Peel-off Plates:
- Standard (100 mm), angled at 75° for vertical mounting or down to -30°.
- CEON Sensor: Accurate detection of transparent or metalized labels.
- Forked Light Barrier: Detects translucent labels with clear liner.
- Rotary Encoder: Synchronizes labeling speed with conveyor speed.
- Mounting Column: Adjustable with crank for quick positioning.
- Mobile Stand: Ideal for top labeling of products, with adjustable legs and capacity up to 50 kg.
Advantages of the CAB Dispenser ROXI
🚀 Increase Productivity: Automates the labeling process, reducing time and operational costs.
🎯 Maximum Precision: Ensures label application with millimeter accuracy, even on products with irregular surfaces.
🔗 Easy Integration: Quickly connects to production management systems and industrial printers.
💸 Economic Efficiency: Reduces label and consumable waste, contributing to cost optimization.
Order Now
Discover the advantages of automatic labeling with the CAB ROXI Industrial Label Dispenser. Contact the AutoID team for a personalized offer and advice on choosing the right equipment.
📦 Fast delivery throughout the country!
💼 Technical support and specialized advice!
