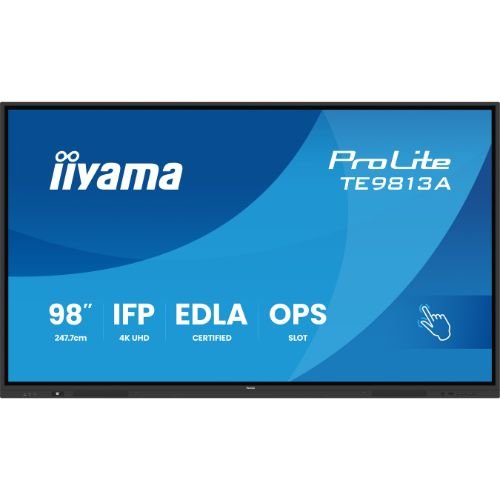

98” Google EDLA-certified 4K UHD interactive display with PureTouch-IR⁺ touch and Android 14 – iiyama TE9813A-B1AG
5.291,33 € incl. VAT
The IIYAMA TE9813A-B1AG is a 98” interactive display with 4K resolution, Google EDLA certified, Android 14, PureTouch-IR+, USB-C 100W, WiFi-6, PIR sensors and OPS Slot – perfect for educational and business collaboration.
IIYAMA ProLite TE9813A-B1AG – 98” Interactive Display, 4K UHD, Google EDLA, for Education & Business
iiyama ProLite TE9813A-B1AG is a 98” (97.5”, 247.7 cm) interactive display with 4K UHD resolution and Google EDLA certification, designed for fluid collaboration in classrooms, training rooms and corporate environments. Zero-Gap Air Bonding eliminates parallax, and PureTouch-IR+ with Palm Rejection provides natural and precise writing (40 touch points, 200 Hz scan, ±1 mm). Runs iiWare 21E (Android 14 – EDLA), with iiControl (DMS) for centralized management, iiShare/EShare for wireless sharing and Wi-Fi 6 + Bluetooth 5.0 connectivity. Modern connectivity includes front USB-C 100W (video+data+touch), a side USB-C 65W, HDMI, DP and HDMI out. The 2×20W front audio system with 20W subwoofer provides excellent clarity for large rooms, and the integrated sensors (PIR, ambient light, pen pick-up) optimize the daily experience.
Why choose TE9813A
- Google EDLA + Android 14: Google apps, accounts and policies at the organization level, with IT management via iiControl (DMS).
- Realistic, parallax-free writing: Zero-Gap Air Bonding + PureTouch-IR+ (40 points, Palm Rejection, 200 Hz scan).
- One-cable connection: Front USB-C 100W PD – charge your laptop, stream 4K video and touch simultaneously.
- Multi-OS wireless sharing: iiShare/EShare for Windows, iOS and Android.
- Front-facing audio with subwoofer: above-average intelligibility for voice and multimedia in medium-large rooms.
- Reliable & easy to manage: PIR & light sensors, metal housing, continuous operation (recommended up to 18h/day), 5 year warranty.
Recommended scenarios
- Education (K-12 & university): interactive lessons, annotations, integration with Google accounts, student-teacher sharing.
- Enterprise & SMB: hybrid meetings, workshops, whiteboard, mirroring, document access and cloud.
- Multifunctional spaces: training rooms, info-hub, projects – centralized IT control via DMS.
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 97.5” (247.7 cm); panel type IPS; 3840×2160 (4K UHD, 16:9); 450 cd/m² brightness; 1200:1 contrast; 8 ms GTG response time; 178°/178° viewing angles; 10-bit (8-bit + FRC), 1.07 billion colors (NTSC 72%); 88% transmittance; 0.562 mm pixel pitch; 2159 × 1214 mm viewable area; 30–135 kHz H-sync. |
| Glass / Touch | Anti-glare glass with treatment anti-gloss, antibacterial layer, 4 mm thickness, 7H hardness; Zero-Gap Air Bonding; PureTouch-IR+ technology; 40 touch points (32 pts writing on supported OS / 32 pts touch on Android); 200 Hz scan; ±1 mm accuracy; methods: stylus, finger, glove; Palm Rejection; USB touch interface. |
| Video inputs | HDMI ×2 (2.0, up to 3840×2160@60 Hz, YUV444; ARC on HDMI #1); DisplayPort ×1 (1.2, 4K@60 Hz); USB-C ×2 – front: USB-C 3.2 Gen1 (5 Gbit, 100W PD); side: USB-C 2.0 (65W PD); both with DP Alt Mode 1.2, 3840×2160@60 Hz, data & touch; 3.5 mm microphone input. |
| Video / Audio Outputs | HDMI out ×1 (2.0, up to 3840×2160@60 Hz, YUV/RGB444, MSD – Multi-Screen Display); S/PDIF optical ×1; 3.5 mm headphones ×1. |
| Audio | Speakers 2 × 20 W (front) + 20 W subwoofer rear. |
| USB / Network & Control | Total USB ×5 (front: 1× USB-C 3.2 Gen1 100W PD, 2× USB-A 3.2 Gen1; side: 1× USB-C 2.0 65W PD, 1× USB-A); RJ45 LAN ×2 (IN/OUT, auto-switch PC & Android, 1000 Mb); RS-232C ×1; HDCP 2.2; OPS Slot ×1 (80-pin) – with OPS installed: Front USB-C 15W, Side USB-C 100W. |
| Integrated system | iiWare 21E (Android 14 – EDLA) with iiControl (DMS), WhiteBoard, iiBrowser, file manager, cloud drives, iiShare/EShare (Windows/iOS/Android); Wi-Fi 6 and Bluetooth 5.0. |
| Android hardware | CPU Quad-core ARM A73×4 (1.4 GHz); Mali-G52 MC1 GPU; RAM 8 GB; 128GB storage. |
| Sensors & Features | PIR sensor, ambient light sensor, Pen Pick-up Sensor, Blue light reducer, OSD key lock, media playback, Plug&Play DDC2B, fanless design. |
| Operation & Reliability | Components 24/7 (recommended up to 18 h/day for optimal longevity); landscape orientation; MTBF 50,000 h (without backlight). |

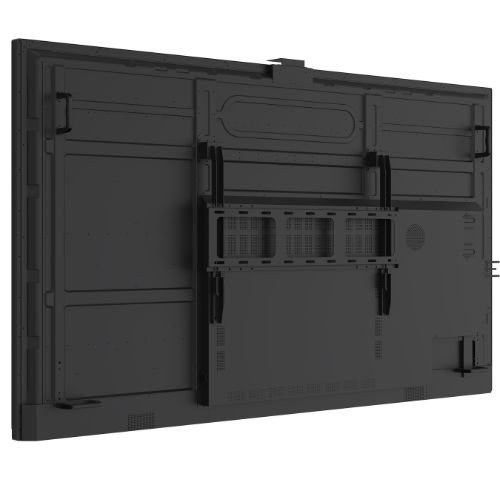

| Mounting & Dimensions | VESA 800×600 mm; metal housing; dimensions 2235.4 × 1326 × 103 mm; box: 2360 × 1445 × 280 mm; net weight 109.6 kg, gross weight 132.2 kg. |
| Consumption / Power | Power supply Internal; AC 100–240 V, 50/60 Hz; 303 W typical consumption, 0.5 W standby, 0.3 W off. |
| Package contents | Remote control (with batteries), 4× stylus (double tip), EU/UK power cables (3 m), USB (3 m), HDMI (3 m), VESA 800×600 wall mount, webcam mount, guides. |
| Compliance / Miscellaneous | CB, CE, TÜV-GS, EAC, RoHS, ErP, WEEE, REACH; Energy Class G; REACH SVHC: Lead; EAN 4948570124831; compatible accessories: OPS OPC51204BC-1, MD-CAR2031-B1, MD-WLIFT2031-W1, UC-CAM120ULB-1, UC-CAM10PRO-1, WP-D003C. |
Benefits at a glance
- 98” huge screen – excellent readability in large rooms.
- USB-C 100W (front): charging + 4K video + touch with a single cable.
- Native wireless sharing: iiShare/EShare for Windows, iOS and Android.
- Front audio with subwoofer: volume and clarity for large audiences.
- Administration centralized: iiControl (DMS), LAN IN/OUT 1 Gbps, RS-232C.
Frequently Asked Questions (FAQ)
1) Can I use Google Classroom and Google apps?
Yes, EDLA certification allows access to the Google ecosystem directly on the display.
2) Can I connect my laptop with a single cable?
Yes, 100W front USB-C provides power, 4K video, data and touch.
3) What are the benefits of Zero-Gap Air Bonding?
Reduces parallax between the stylus tip and the image, for natural and precise writing.
4) Is it suitable for long-term use?
Yes, the components are for 24/7; recommended up to 18 hours/day for optimal lifespan.
5) Can I extend the image to a second screen?
Yes, HDMI out (4K@60Hz) allows for display expansion.
6) What networking and control options does it have?
LAN IN/OUT (1 Gbps), Wi-Fi 6, Bluetooth 5.0, RS-232C, plus DMS for management.
7) What’s included in the package?
Remote control, 4 styluses, main cables (power/USB/HDMI), wall mount and webcam mount.
8) Is it compatible with OPS PC?
Yes, OPS (80-pin) slot – and when OPS is installed, the PD delivery on USB-C adjusts (15W front / 100W side).
