55” Google EDLA-certified 4K UHD interactive display with PureTouch-IR⁺ touch and Android 14 – IIYAMA TE5513A-B1AG
1.491,93 € incl. VAT
IIYAMA TE5513A-B1AG is a 55″ 4K interactive display, Google EDLA certified, with Android 14, PureTouch-IR+, Zero-Gap bonding, WiFi-6, USB-C 100W, PIR sensor and 2x20W speakers + subwoofer. Ideal for education and business.

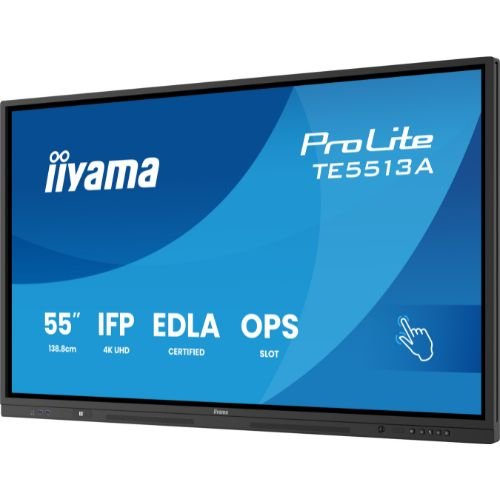

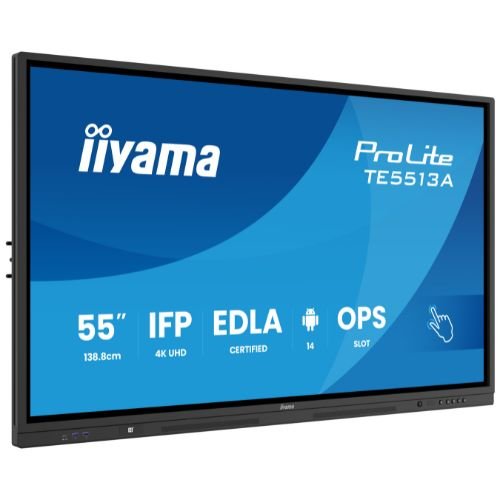

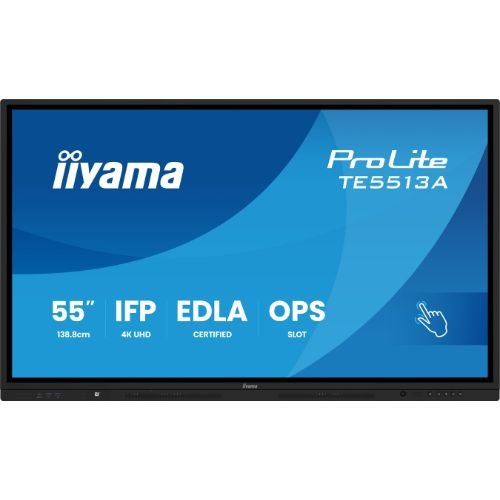

IIYAMA ProLite TE5513A-B1AG – 55” Interactive Display, 4K UHD, Google EDLA, for Education & Business
iiyama ProLite TE5513A-B1AG is a 55” (54.6”, 138.8 cm) interactive display with 4K UHD resolution and Google EDLA certification, designed for frictionless collaboration in classrooms, meeting rooms and corporate spaces. Zero-Gap Air Bonding eliminates parallax for natural writing, and PureTouch-IR+ technology with Palm Rejection provides precise interactions. The iiWare 21E (Android 14-EDLA) platform brings Google apps, iiControl (DMS) for remote management, iiShare/EShare for multi-OS wireless sharing and modern Wi-Fi 6 + Bluetooth 5.0 connectivity. With USB-C up to 100W PD on the front panel, HDMI and DP inputs, 2×20W front speakers plus subwoofer and microphone, the TE5513A becomes an all-in-one hub for teaching, presenting and brainstorming.
Why choose the TE5513A
- Google EDLA & Android 14: Google apps, accounts and integrated ecosystem, plus simplified IT management via iiControl (DMS).
- Realistic, zero-gap writing: anti-glare glass with Zero-Gap Air Bonding and PureTouch-IR+ for low latency, ±1 mm accuracy and palm rejection.
- Modern “one-cable” connectivity: Front USB-C with 100W Power Delivery (video+data+touch), another side USB-C (65W), HDMI 2.0, DP 1.2 and HDMI out.
- Powerful audio for medium-sized rooms: 2×20W front + rear subwoofer, S/PDIF output and headphone jack.
- Instant productivity: Quick Radial Menu, whiteboard, browser, cloud drives, file manager, wireless sharing with Windows/iOS/Android.
- Reliability & management: PIR sensor for energy efficiency, ambient light sensor, 24/7 (recommended up to 18h/day), fanless design, 5-year warranty.
Recommended scenarios
- Education (K-12, university): interactive lessons, digital notes, student-teacher sharing, integration with Google accounts.
- Enterprise & SMB: Hybrid meetings, presentations and workshops with quick access to documents, whiteboard and mirroring.
- Multifunctional spaces: info-hubs, training rooms, huddle rooms – simple settings, centralized IT control.
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 54.6” (138.8 cm); type IPS panel; 3840×2160 (4K UHD, 16:9); 450 cd/m² brightness; 1200:1 contrast; 8 ms GTG response time; 178°/178° viewing angles; 10-bit (8-bit + FRC), 1.07 billion colors (NTSC 72%); 0.315 mm pixel pitch; 1210 × 680 mm viewable area; 88% transmittance. |
| Glass / Touch | Anti-glare glass with anti-gloss treatment; Zero-Gap Air Bonding; PureTouch-IR+ technology; 40 touch points (10 writing points, 32 touch points on Android); 200 Hz scan; ±1 mm accuracy; methods: stylus, finger, glove; palm rejection; USB touch interface. |
| Video inputs | HDMI ×2 (2.0, up to 3840×2160@60 Hz, YUV444; ARC on HDMI #1); DisplayPort ×1 (1.2, up to 3840×2160@60 Hz); USB-C ×2 – front: USB-C 3.2 Gen1, 5 Gbit, 100W PD; side: USB-C 2.0, 65W PD; both with DP Alt Mode 1.2, 3840×2160@60 Hz, data & touch. |
| Video / Audio Outputs | HDMI out ×1 (2.0, up to 3840×2160@60 Hz, YUV/RGB444); S/PDIF optical ×1; 3.5 mm headphone ×1; 3.5 mm microphone ×1 (in). |
| Audio | Speakers 2 × 20 W (front) + 20 W subwoofer rear. |
| USB / Network & Control | Total USB ×6 (front: 1× USB-C 3.2 Gen1 100W PD, 2× USB-A 3.2 Gen1; side: 1× USB-C 2.0 65W PD, 1× USB-A 2.0, 1× USB-A 3.2 Gen1); RJ45 LAN ×2 (IN/OUT, auto-switch PC & Android, 1000 Mb); RS-232C ×1; HDCP 2.2; OPS Slot ×1 (80-pin; with OPS installed: USB-C front 65W, side 15W). |
| Integrated system | iiWare 21E (Android 14 – EDLA) with iiControl (DMS), WhiteBoard, iiBrowser, file manager, cloud drives, iiShare/EShare (Windows/iOS/Android); Wi-Fi 6 and Bluetooth 5.0; hardware: Quad-core A73×4 CPU (1.4 GHz), Mali-G52 MC1 GPU, 8 GB RAM, 128 GB storage. |
| Features | PIR sensor (motion) for energy efficiency, ambient light sensor, Blue light reducer, Plug&Play DDC2B, OSD key lock, media playback. |
| Operation & Reliability | Max. non-stop 24/7 (recommended up to 18 h/day for optimal longevity); landscape orientation; fanless design; MTBF 50,000 h (without backlight). |
| Mounting & Dimensions | VESA 400×400 mm; metal housing; dimensions 1267 × 765.4 × 86 mm; box: 1385 × 865 × 185 mm; net weight 28.7 kg, gross 34.8 kg. |
| Consumption / Power | Internal power supply; AC 100–240 V, 50/60 Hz; 125 W typical consumption, 0.5 W standby, 0.3 W off. |
| Package contents | Remote control (with batteries), 4× stylus (dual tip), EU/UK power cable (3 m), USB (3 m), HDMI (3 m), VESA 400×400 wall mount, webcam mount, guides. |
| Compliance / Miscellaneous | CB, CE, TÜV-GS, EAC, RoHS, ErP, WEEE, REACH; Energy Class G; REACH SVHC: Pb; EAN 4948570124794; compatible accessories: OPS OPC51204BC-1, MD-CAR2031-B1, MD-WLIFT2031-W1, MD-CART02-S1, UC-CAM120ULB-1, UC-CAM10PRO-1, WP-D003C. |
Benefits at a glance
- Google EDLA + Android 14: Organization-wide account, app, and policy login.
- USB-C 100W (front): Charges laptop, streams 4K video, and touch over a single cable.
- Native wireless sharing: iiShare/EShare for Windows, iOS, and Android.
- Built-in audio with subwoofer: Better clarity and sound pressure for medium-sized rooms.
- Centralized management: iiControl (DMS), 1 Gbps LAN IN/OUT, RS-232C.
Frequently Asked Questions (FAQ)
1) Can I use Google Classroom and other Google apps?
Yes, EDLA certification allows access to Google apps directly on the display.
2) Can I connect my laptop with a single cable?
Yes, via USB-C (up to 100W PD on the front port) with 4K video, data and touch.
3) What makes Zero-Gap Air Bonding different?
Reduces parallax between the stylus tip and the image, making writing more precise and natural.
4) Is it suitable for extended use?
Yes, the components are 24/7, recommended up to 18 hours/day for optimal lifespan.
5) Does it have video output for a second screen?
Yes, HDMI out (4K@60Hz) for display expansion.
6) What networking and control options are there?
LAN IN/OUT (1 Gbps), Wi-Fi 6, Bluetooth 5.0, plus RS-232C and DMS for management.
7) What’s in the package?
Remote control, 4 styluses, basic cables (power/USB/HDMI), wall mount and webcam mount.
8) Is it OPS compatible PC?
Yes, OPS (80-pin) slot – for modular PC upgrades.
