4″ Industrial Printing Module for Print & Apply | 203 dpi, 150 mm/s, SATO LT408
2.778,23 € ex. VAT
SATO LT408 is a 4” OEM print engine for Print & Apply, pallet labeling and logistics applications. 203 dpi, 150 mm/s speed, 450 m ribbon, multiple interfaces and easy integration into industrial automation systems.

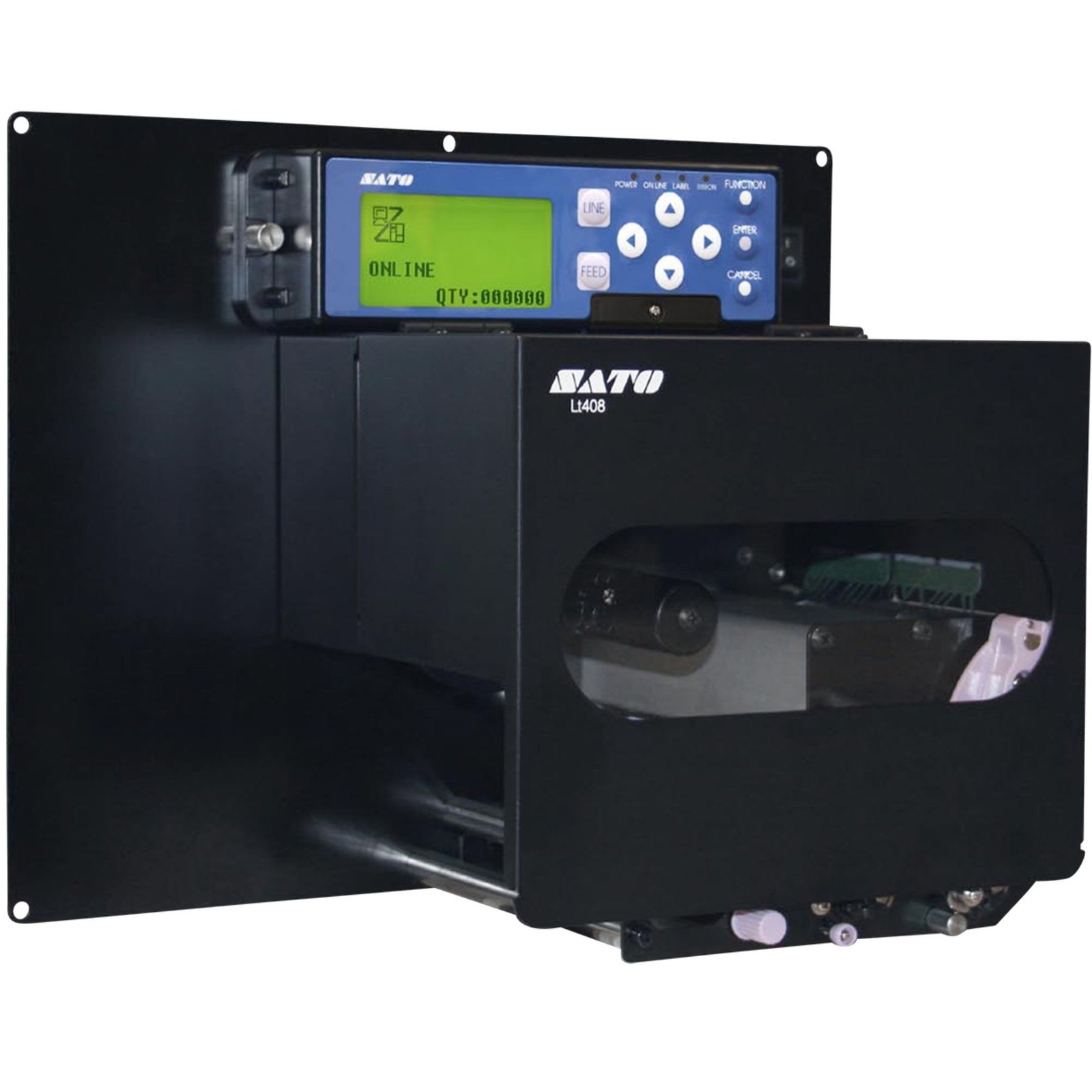

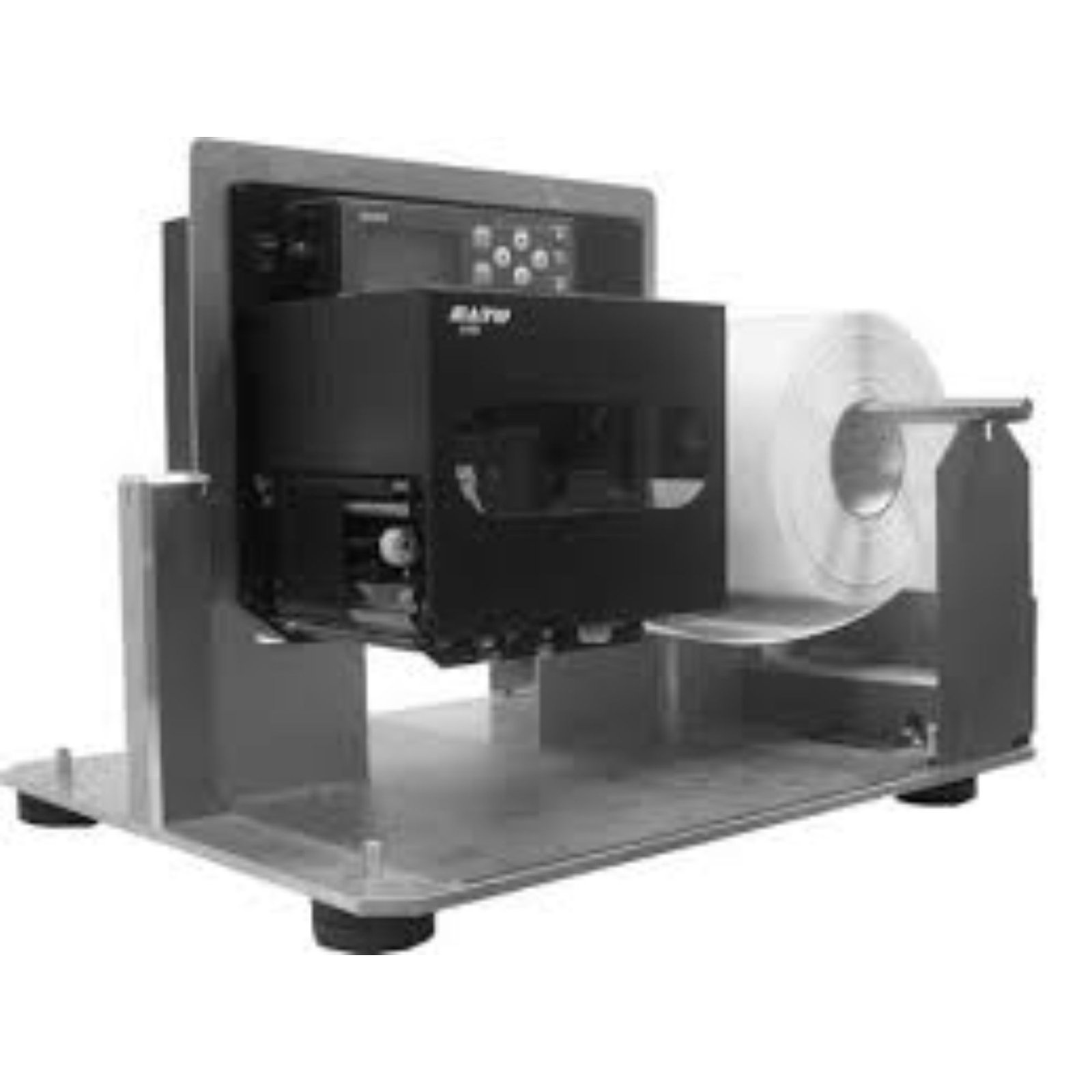

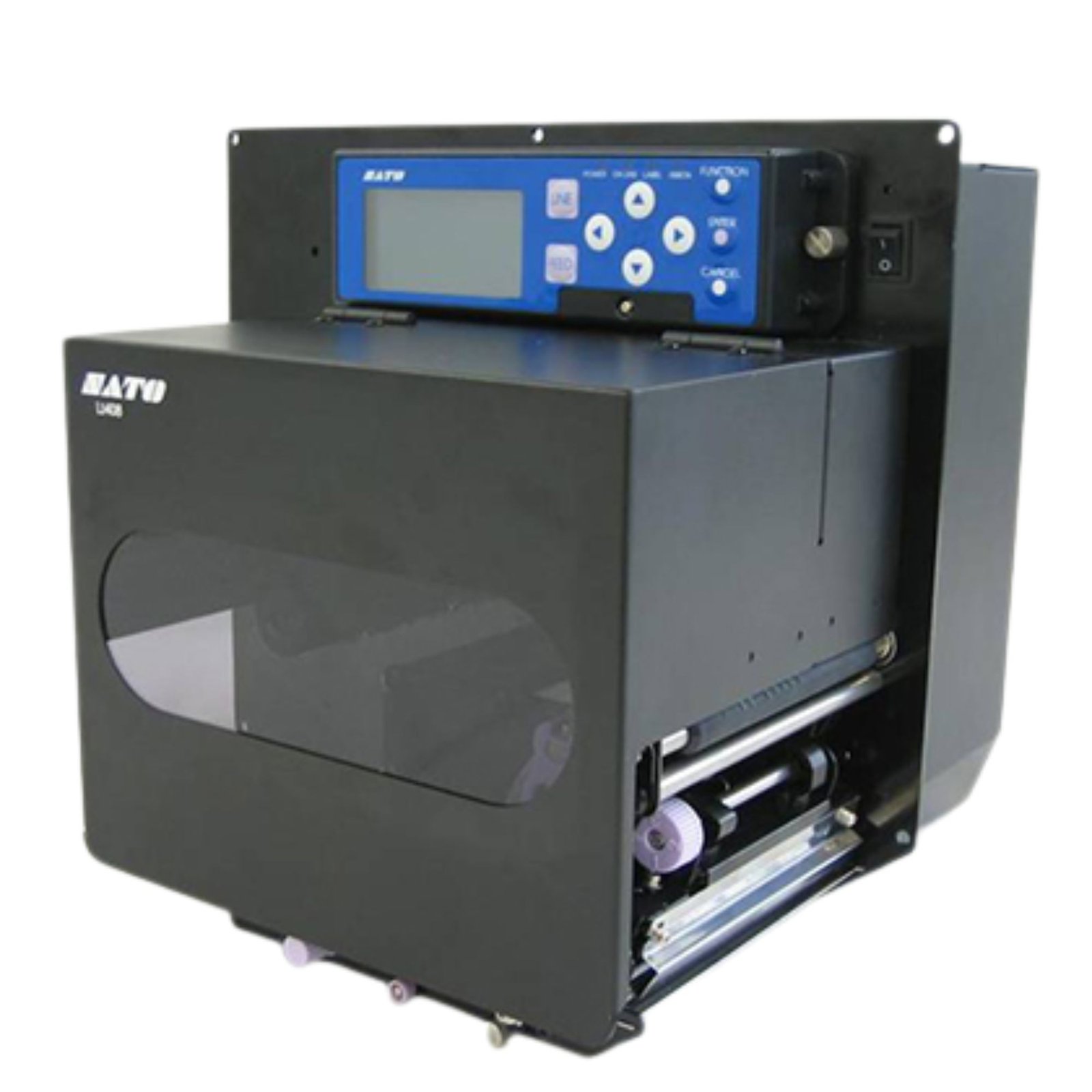

SATO LT408 – 4” Entry Level Print Engine for Print & Apply applications
The SATO LT408 is a 4-inch industrial OEM print engine , specifically designed for Print & Apply applications, pallet labeling, receiving/delivery workflows and automated logistics processes. Designed for entry-level markets, the LT408 offers an excellent balance of performance, reliability and cost, making it an ideal solution for replacing manual labeling or costly pre-printed box inventories.
If you want an automated yet affordable solution for integration into an automatic label application system, the SATO LT408 is the right choice.
Why choose SATO LT408 for your labeling system?
In modern industrial environments, efficiency is everything. Every second counts, every label must be perfectly legible, and every integration must be stable. The LT408 was developed with these exact goals in mind.
- Designed for Print & Apply systems
- 203 dpi print resolution for clear, legible barcodes
- Speed up to 150 mm/sec (6 ips)
- Available in Left Hand (LH) and Right Hand (RH) versions
- Large LCD display and intuitive menu
- Flexible connectivity through multiple interfaces
- Easy OEM integration into automated lines
Industrial performance for low and medium volume applications
The SATO LT408 is optimized for low-throughput or light-duty applications, where automation of the labeling process is required without major investments in high-end equipment.
With a maximum print width of 104 mm (4.1”) and a print length of up to 1249 mm, this print engine allows for flexible labeling of boxes, crates and pallets.
- Pallet labeling in logistics
- Labeling boxes in warehouses
- Applications in production and distribution
- Integration into industrial automation systems
Technical specifications SATO LT408
| Specification | Value |
|---|---|
| Printing method | Direct Thermal / Thermal Transfer |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum printing width | 104mm (4.1”) |
| Maximum print length | 1249mm |
| Print speed | Up to 150 mm/sec (6 ips) |
| CPU | 32-bit RISC |
| Memory | Flash ROM 4MB, SDRAM 16MB, FRAM 32Kb |
| Ribbon length | Max. 450 m |
| Ribbon width | 25mm – 111mm |
| Sensor type | I-Mark (reflective), Gap (transmissive) |
| Optional interfaces | USB, RS232C, Centronics, LAN (10/100), Wireless LAN 802.11b/g, Ext I/O |
| Dimensions (W x D x H) | 330 x 271 x 270 mm |
| Weight | 9.7 kg |
| feeding | AC 100–240V, 180W (peak) |
| Operating temperature | 5 – 40°C |
| CERTIFICATION | FCC, UL, CSA, CCC, CE, RoHS |
Consumables and media compatibility
The LT408 supports a wide range of labels and ribbons, being compatible with:
- Die-cut roll labels
- Paper or synthetic materials
- Average thickness: 0.08 – 0.26 mm
- Label width: 10 – 112 mm
- Label length: 18 – 1252 mm
For optimal performance, it is recommended to use certified or SATO-produced consumables.
Industrial interfaces and integration
As a genuine OEM print engine , the LT408 includes a dedicated port for integration with automated applicators and external systems. Optional interfaces include:
- IEEE1284 / Centronics
- Standard and high-speed RS232C
- USB (12 Mbps)
- LAN 10/100 BaseT (TCP/IP)
- Wireless LAN 802.11b/g
- Ext Signal Board 14-pin or D-Sub 25-pin
This level of connectivity allows for rapid integration into ERP systems, WMS or automated production lines.
Areas of use
- Healthcare
- Transport & Logistics
- Food Industry
- road
- Manufacturing
- Warehouse & Distribution
- Postal services
Available options and accessories
- Real Time Clock
- Smart Keyboard
- SATO Label Gallery™
- Additional interface boards
- Cleaning kit
- Wireless Kit
Advantages of using SATO LT408 in an automated system
Labeling automation is no longer a luxury – it’s a necessity. By integrating the SATO LT408 into a Print & Apply system:
- Reduce labor costs
- Eliminate human errors
- Increase order processing speed
- Ensure full traceability
- Optimize logistics flows
The SATO LT408 is a robust, reliable and easy-to-maintain solution, perfectly suited to industrial environments that need a compact, stable and efficient print engine .
