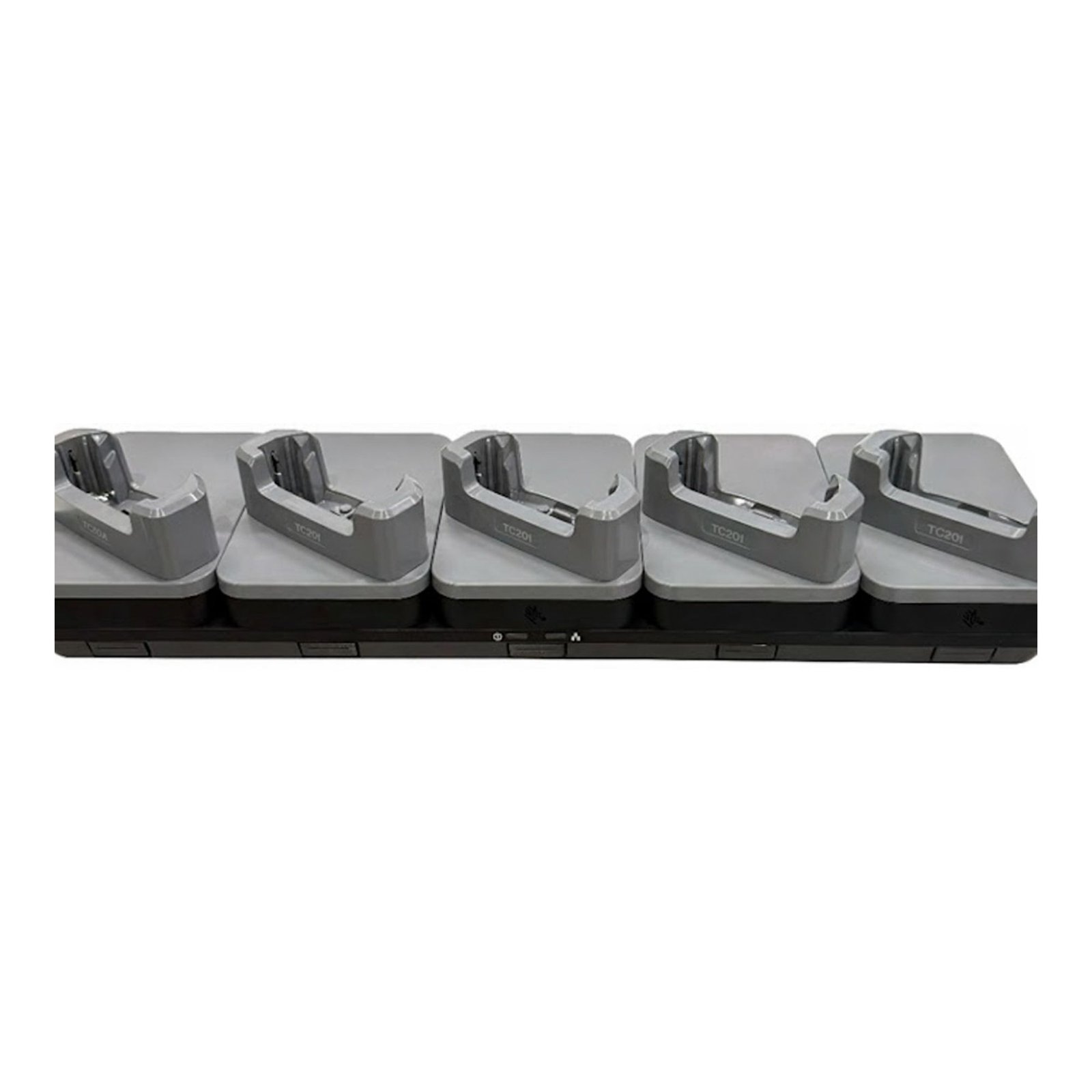

Zebra TC201 Ethernet/USB 5 Terminal Cradle with Rugged Boot CRD-TCVTB-5DE

Zebra CRD-TCVTB-5DE – Ethernet and USB ShareCradle for five TC201 terminals

The Zebra CRD-TCVTB-5DE is a professional ShareCradle that allows simultaneous charging of up to five Zebra TC201 mobile terminals with Rugged Boot mounted and offers Ethernet and USB communication.

The station is designed for centralized management of terminals used in warehouses, logistics, retail, manufacturing, courier, transportation and service activities. Devices can be inserted into the cradle with the Rugged Boot protection mounted, without removing it before each charging cycle.

The CRD-TCVTB-5DE is sold without a power supply. For operation, the Zebra PWR-BGA12V150W1WW 150 W power supply and an AC cord appropriate for the country of use are required.

See the Zebra TC101/TC201 terminal family .

Main features

• simultaneous charging of up to five Zebra TC201 terminals;
• compatible with terminals that have Rugged Boot installed;
• Ethernet communication for connection to the network infrastructure;
• USB communication with compatible systems;
• does not require disassembling the Rugged Boot before charging;
• centralized management of a terminal fleet;
• suitable for synchronization, configuration and service operations;
• reduces the number of individual charging stations;
• Zebra PWR-BGA12V150W1WW power supply must be ordered separately;
• Regional AC cable must be ordered separately.

Compatibility and configuration

Characteristic	Detail
Product code	CRD-TCVTB-5DE
Accessory type	ShareCradle with Ethernet and USB communication
Compatible terminal	Zebra TC201
Capacity	Up to 5 terminals
Use with Rugged Boot	Yes
Ethernet communication	Yes
USB communication	Yes
Spare battery slots	Not specified
Source required	PWR-BGA12V150W1WW, 150W
Source included	Not
AC cable included	Not

Simultaneous charging of five TC201 terminals

The CRD-TCVTB-5DE allows centralized charging of up to five Zebra TC201 terminals. The configuration is suitable for organizations that distribute devices to multiple operators or work in successive shifts.

Using ShareCradle helps to:

• simultaneous preparation of devices for the next shift;
• organizing terminals in a common point;
• reducing the number of individual chargers;
• simplifying the delivery and collection of equipment;
• quick verification of returned terminals;
• keeping the fleet ready for daily activity.

Use with Rugged Boot mounted

The ShareCradle slots are sized for Zebra TC201 terminals equipped with Rugged Boot. Operators can insert devices directly into the station without removing the protective covers.

This configuration offers practical advantages:

• reduces the time required to connect terminals;
• avoids repeated removal and reassembly of covers;
• reduces wear and tear associated with frequent handling of Rugged Boots;
• keeps terminals protected between uses;
• reduces the risk of losing covers;
• standardizes the configuration of devices in the fleet.

The compatible Rugged Boot is ordered separately for each terminal.

See Rugged Boot Zebra SG-TCVT-BOOT-01 .

Ethernet communication

The Ethernet function allows the TC201 terminals to be connected to the wired network infrastructure via the ShareCradle. This configuration is useful when the devices need to be managed at a fixed location or periodically connected to company systems.

Ethernet connectivity can support streams such as:

• operational data synchronization;
• connecting terminals to local applications and systems;
• device management through the company’s infrastructure;
• updating configurations and applications;
• information transfer in areas with limited wireless coverage;
• preparing terminals before distribution to operators.

The network configuration and components required to connect to the Ethernet infrastructure must be determined based on the project.

USB communication

The CRD-TCVTB-5DE also offers USB communication with compatible systems. This feature can be used to configure, synchronize or manage terminals from a centralized point.

USB communication can support:

• controlled data transfer;
• synchronization of terminals with a local system;
• device configuration;
• maintenance and service operations;
• simultaneous preparation of multiple terminals.

The components required for USB connection must be verified based on the infrastructure and host system used.

Solution for centralized fleet management

By combining charging with Ethernet and USB functions, the CRD-TCVTB-5DE can be used as a central point for provisioning and managing a fleet of up to five TC201 terminals.

The station can be located in:

• terminal drop-off and pick-up areas;
• warehouses and distribution centers;
• the back-office of stores;
• courier and transportation hubs;
• IT service and configuration areas;
• secure spaces for equipment management;
• workstations for supervisors.

Power supply sold separately

The Zebra PWR-BGA12V150W1WW 150 W power supply is required to power the CRD-TCVTB-5DE. The power supply is not included and must be ordered separately.

An AC cable compatible with the source and the electrical standard of the country where the station will be installed is also required.

compound	Code or specification	Included
ShareCradle Ethernet/USB	CRD-TCVTB-5DE	Yes
Rugged Boot	Compatible model with Zebra TC201	Not
Power supply	PWR-BGA12V150W1WW, 150W	Not
Regional AC cable	Country-specific version	Not
Zebra TC201 terminals	Compatible configurations	Not

The difference between CRD-TCVTB-5DE and CRD-TCVTB-5DE-1

Characteristic	CRD-TCVTB-5DE	CRD-TCVTB-5DE-1
Terminal capacity	Up to 5	Up to 5
Terminal configuration	With Rugged Boot	With Rugged Boot
Ethernet communication	Yes	Yes
USB communication	Yes	Yes
Power supply PWR-BGA12V150W1WW	Not included	It is included
Rugged Boots	Separated	Separated
AC cable	Separated	Separated

Choose the CRD-TCVTB-5DE when you already own a compatible Zebra PWR-BGA12V150W1WW power supply or want to order the power supply separately.

Choose CRD-TCVTB-5DE-1 when you need the kit that includes the 150 W power supply.

Difference from CRD-TCVTB-5D

Characteristic	CRD-TCVTB-5DE	CRD-TCVTB-5D
Terminal capacity	Up to 5	Up to 5
Terminal configuration	With Rugged Boot	With Rugged Boot
Loading	Yes	Yes
Ethernet communication	Yes	No; Charge-Only model
USB communication	Yes	No; Charge-Only model
150 W power supply	Separated	Separated

The CRD-TCVTB-5DE is suitable when terminals need to be charged and connected via Ethernet or USB. The CRD-TCVTB-5D is intended exclusively for charging devices.

Difference from CRD-TCVT-5DE

Characteristic	CRD-TCVTB-5DE	CRD-TCVT-5DE
Terminal capacity	Up to 5	Up to 5
Terminal configuration	With Rugged Boot	Without Rugged Boot
Ethernet communication	Yes	Yes
USB communication	Yes	Yes
150 W power supply	Separated	Separated

CRD-TCVTB-5DE is intended for terminals that keep the Rugged Boot mounted. For terminals used without a case, CRD-TCVT-5DE should be selected.

Recommended apps

Warehouse and logistics

• synchronization of terminals used for picking;
• transfer of reception and dispatch data;
• preparing devices for the next shift;
• terminal management in a centralized point;
• charging without removing the Rugged Boots.

Retail

• synchronization of terminals used for inventory;
• back-office device management;
• updating applications and configurations;
• loading terminals between shifts;
• preparing equipment for online orders.

Courier and transportation

• data synchronization after completing routes;
• preparing terminals for the next flights;
• device management in logistics hubs;
• transfer of information to company systems;
• keeping protective covers fitted.

IT service and administration

• configuring multiple terminals at a common point;
• updating applications and settings;
• controlled data transfer;
• device diagnostics and management;
• preparing terminals before distribution to users.

Installation and use

1. place the ShareCradle on a stable and ventilated surface;
2. connect the PWR-BGA12V150W1WW power supply purchased separately;
3. connect the regionally compatible AC cable;
4. configure the necessary Ethernet or USB infrastructure;
5. mount the compatible Rugged Boot on each terminal;
6. insert the devices into the available positions;
7. check the charging indicators;
8. checks the functioning of the configured communication.

The terminals must be positioned correctly, without forcing the cradle or the charging and communication contacts.

Package contents

• 1 × ShareCradle Ethernet/USB Zebra CRD-TCVTB-5DE.

Zebra TC201 terminals, Rugged Boots, PWR-BGA12V150W1WW power supply and country-specific AC cord are not included.

Frequently asked questions

1. How many terminals can the CRD-TCVTB-5DE charge?

The ShareCradle can charge up to five Zebra TC201 terminals simultaneously.

2. Can the terminals be inserted with the Rugged Boot mounted?

Yes. The CRD-TCVTB-5DE is designed for TC201 terminals used with Rugged Boot mounted.

3. Are Rugged Boots included?

No. Compatible Rugged Boots must be ordered separately for each terminal.

4. Does the cradle offer Ethernet communication?

Yes. The model includes Ethernet communication functionality.

5. Does it also offer USB communication?

Yes. The CRD-TCVTB-5DE also offers USB communication with compatible systems.

6. Is the power supply included?

No. The Zebra PWR-BGA12V150W1WW 150W power supply must be ordered separately.

7. Is the AC cord included?

No. An AC cord compatible with the source and specific to the country of use is required.

8. Does it include slots for spare batteries?

The product description specifies charging up to five terminals and does not mention separate battery slots.

9. What is the difference from CRD-TCVTB-5DE-1?

The CRD-TCVTB-5DE does not include a power supply. The CRD-TCVTB-5DE-1 variant includes the Zebra PWR-BGA12V150W1WW 150 W power supply.

10. What is the option for terminals without Rugged Boot?

For TC201 terminals used without Rugged Boot, the CRD-TCVT-5DE model must be selected.

Order Zebra CRD-TCVTB-5DE

The Zebra CRD-TCVTB-5DE is recommended for organizations managing up to five TC201 terminals with Rugged Boot and requiring centralized charging, Ethernet communication, and USB connectivity.

For the complete configuration, compatible Rugged Boots, the Zebra PWR-BGA12V150W1WW 150 W power supply and the AC cable appropriate for the country of use are required.
