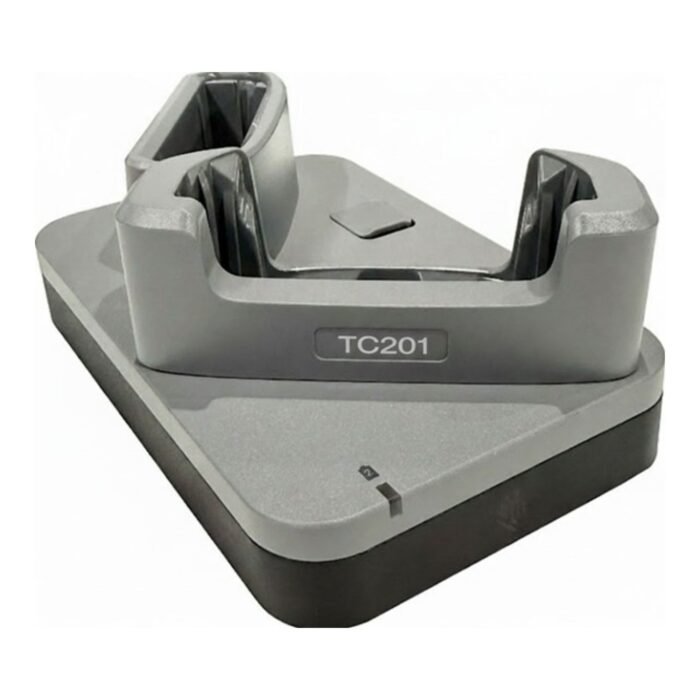

Zebra TC201 Cradle and Battery without Rugged Boot CRD-TCVT-1D1B

Zebra CRD-TCVT-1D1B – cradle for the TC201 terminal and a spare battery

The Zebra CRD-TCVT-1D1B is a Charge-Only ShareCradle designed for simultaneous charging of a Zebra TC201 mobile terminal without Rugged Boot and a compatible backup battery .

The station combines a terminal position and a separate battery slot in a single unit. This configuration is recommended for companies that need to keep both the device and an extra battery ready for the next shift.

The CRD-TCVT-1D1B can be used in retail, warehouses, logistics, courier, transportation, manufacturing and field services. Being a Charge-Only model, the cradle is intended for charging and does not provide data transfer or Ethernet communication.

Main features

• charging a Zebra TC201 mobile terminal;
• separate slot for a compatible backup battery;
• simultaneous charging of the terminal and the battery;
• designed for the terminal used without Rugged Boot;
• Charge-Only function, no data transfer;
• compact configuration for the individual operator station;
• suitable for activities carried out in multiple shifts;
• reduces the need for a separate battery charger;
• USB-C cable and 45W adapter must be ordered separately.

Compatibility and configuration

Charging the Zebra TC201 terminal

The main cradle position allows charging of a Zebra TC201 terminal in the standard configuration. The device can be placed in the station at the end of the activity or between shifts, without direct and repeated connection of a cable to the terminal.

Using an individual cradle helps to:

• preparing the terminal for the next shift;
• organizing the device at a fixed point;
• simplifying terminal handover and pickup;
• reducing the number of cables on the operator station;
• quick verification of device positioning when charging;
• keeping the terminal easily accessible.

Use without Rugged Boot

The terminal cup is sized for the Zebra TC201 without a Rugged Boot or other additional case that changes the dimensions of the device.

For correct use:

1. remove the Rugged Boot or additional case;
2. check that the terminal and charging contacts are clean;
3. insert the device into the dedicated position;
4. check for correct alignment;
5. confirms the start of the charging process.

Slot for a spare battery

The CRD-TCVT-1D1B includes a separate slot for charging a Zebra TC201 compatible backup battery. The battery can be charged at the same time as the terminal.

This configuration is useful for:

• long work shifts;
• operations carried out in multiple shifts;
• intensive scans throughout the day;
• activities that frequently use wireless communications;
• quick replacement of a discharged battery;
• keeping a backup battery ready at all times.

The exact battery code must be checked before ordering to confirm compatibility with the TC201 terminal and cradle slot.

Simultaneous charging of device and battery

By combining the two positions, the CRD-TCVT-1D1B allows the terminal and the backup battery to be prepared simultaneously. The operator can start the next shift with the device charged and an additional battery available.

This configuration contributes to:

• reducing interruptions caused by battery discharge;
• maintaining operational continuity;
• avoiding the purchase of a separate charger for a single battery;
• organizing the terminal and battery at the same point;
• faster preparation of the equipment for the next user.

Charge-Only function

The Zebra CRD-TCVT-1D1B is intended for terminal and battery charging only. The model does not offer data transfer, USB sync, or Ethernet connectivity.

It is recommended when the main objective is:

• charging a terminal and a spare battery;
• preparing equipment between shifts;
• creating an individual charging point;
• reducing the number of separate adapters;
• keeping the device and battery in an organized area.

For Ethernet or USB communication, a cradle variant must be selected that explicitly mentions the respective functions.

Accessories required for operation

For installation in Romania, the 45 W power adapter must be selected in a version compatible with European sockets.

The difference between CRD-TCVT-1D1B and CRD-TCVT-1D

Choose CRD-TCVT-1D1B when the terminal and a backup battery need to be charged simultaneously.

For exclusive charging of the terminal, the CRD-TCVT-1D can be used.

Difference from CRD-TCVTB-1D1B

CRD-TCVT-1D1B is intended for the terminal used without a case. For a device that keeps the Rugged Boot mounted, CRD-TCVTB-1D1B should be selected.

Recommended apps

Retail

• loading the terminal used for inventory;
• preparing a battery for the next shift;
• organizing equipment in the back-office;
• preparing the device for replenishing shelves;
• maintaining a backup battery for busy periods.

Warehouse and logistics

• loading the terminal used for picking;
• preparing a battery for the next shifts;
• placing the cradle at the operator’s station;
• reducing interruptions due to low battery;
• organizing the device and battery in the same point.

Courier and transportation

• loading the terminal after completing the route;
• preparing the battery for the next race;
• organizing equipment in a hub or warehouse;
• keeping a backup battery available;
• simplifying terminal handover between shifts.

Field services

• loading the technician’s terminal;
• preparing a battery for the following interventions;
• reducing the risk of leaving with a flat battery;
• organization of equipment at the headquarters;
• maintaining continuity of field activity.

Installation and use

1. place the cradle on a stable and ventilated surface;
2. connect the Zebra CBL-EC5X-USBC3A-01 cable;
3. Connect the 45W power adapter;
4. remove the Rugged Boot from the terminal, if mounted;
5. insert the terminal into the dedicated position;
6. insert the compatible battery into the separate slot;
7. check the charging indicators.

The terminal and battery must be positioned correctly, without forcing the cups or charging contacts.

Package contents

• 1 × ShareCradle Charge-Only Zebra CRD-TCVT-1D1B.

Zebra TC201 terminal, backup battery, USB-C cable CBL-EC5X-USBC3A-01, and 45W power adapter are not included.

Frequently asked questions

1. What can CRD-TCVT-1D1B load?

The cradle can simultaneously charge a Zebra TC201 terminal and a compatible backup battery.

2. Can the terminal be charged with Rugged Boot installed?

No. CRD-TCVT-1D1B is designed for the terminal used without Rugged Boot.

3. Does it include a battery slot?

Yes. The station includes a separate slot for a compatible backup battery.

4. Does the cradle offer data transfer?

No. It is a Charge-Only model intended exclusively for charging.

5. Is the USB-C cable included?

No. Zebra CBL-EC5X-USBC3A-01 cable required, sold separately.

6. Is the power adapter included?

No. A 45W power adapter in the version appropriate for the country of use is required.

7. Are the terminal and battery included?

No. The Zebra TC201 terminal and backup battery are sold separately.

8. What is the difference from CRD-TCVT-1D?

The CRD-TCVT-1D1B also includes a slot for a backup battery. The CRD-TCVT-1D only charges the terminal.

9. What is the difference from CRD-TCVTB-1D1B?

CRD-TCVT-1D1B is for the terminal without Rugged Boot, and CRD-TCVTB-1D1B is designed for the device with Rugged Boot installed.

10. Is it compatible with Zebra TC101?

The description provided for this code specifies the Zebra TC201 terminal. Compatibility with TC101 must be confirmed separately before pairing the product.

Order Zebra CRD-TCVT-1D1B

The Zebra CRD-TCVT-1D1B is recommended for organizations that use the TC201 terminal without Rugged Boot and need to simultaneously charge the device and a backup battery.

Zebra USB-C cable CBL-EC5X-USBC3A-01 and 45W power adapter for Europe are required for a functional setup.
