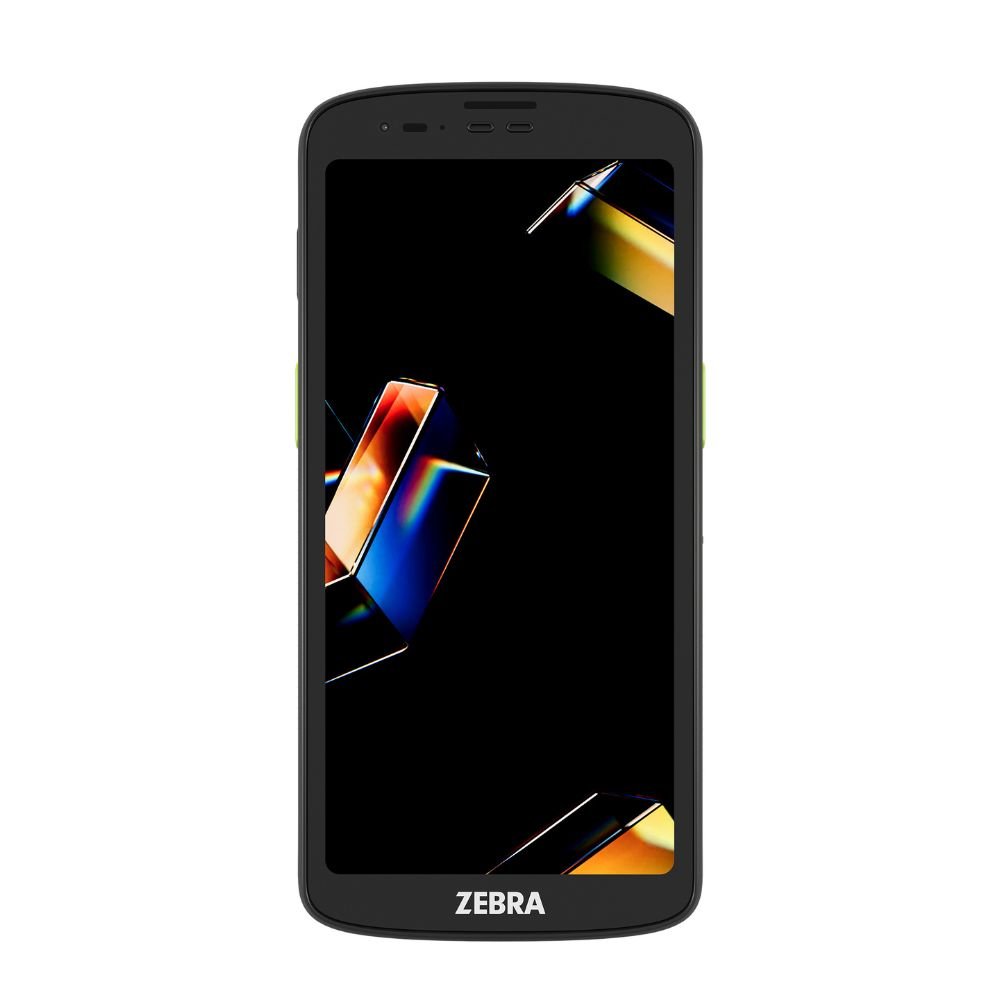

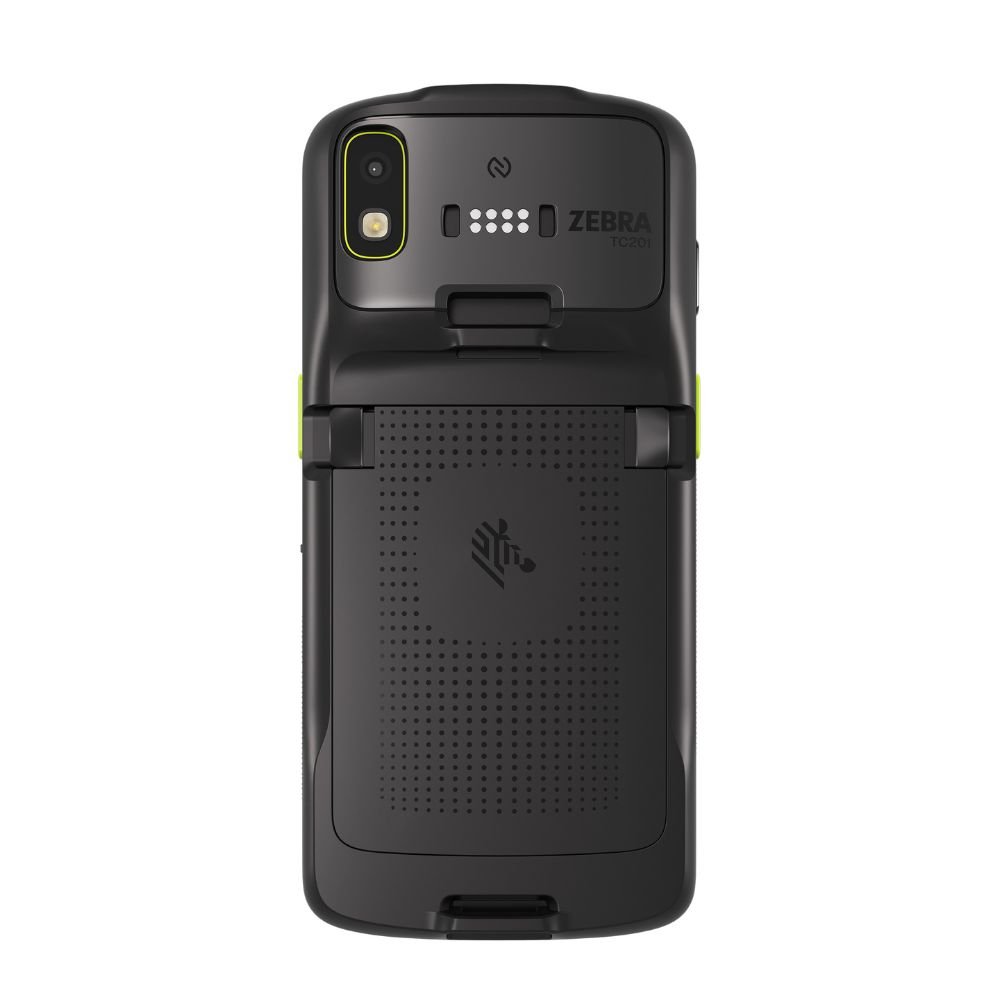

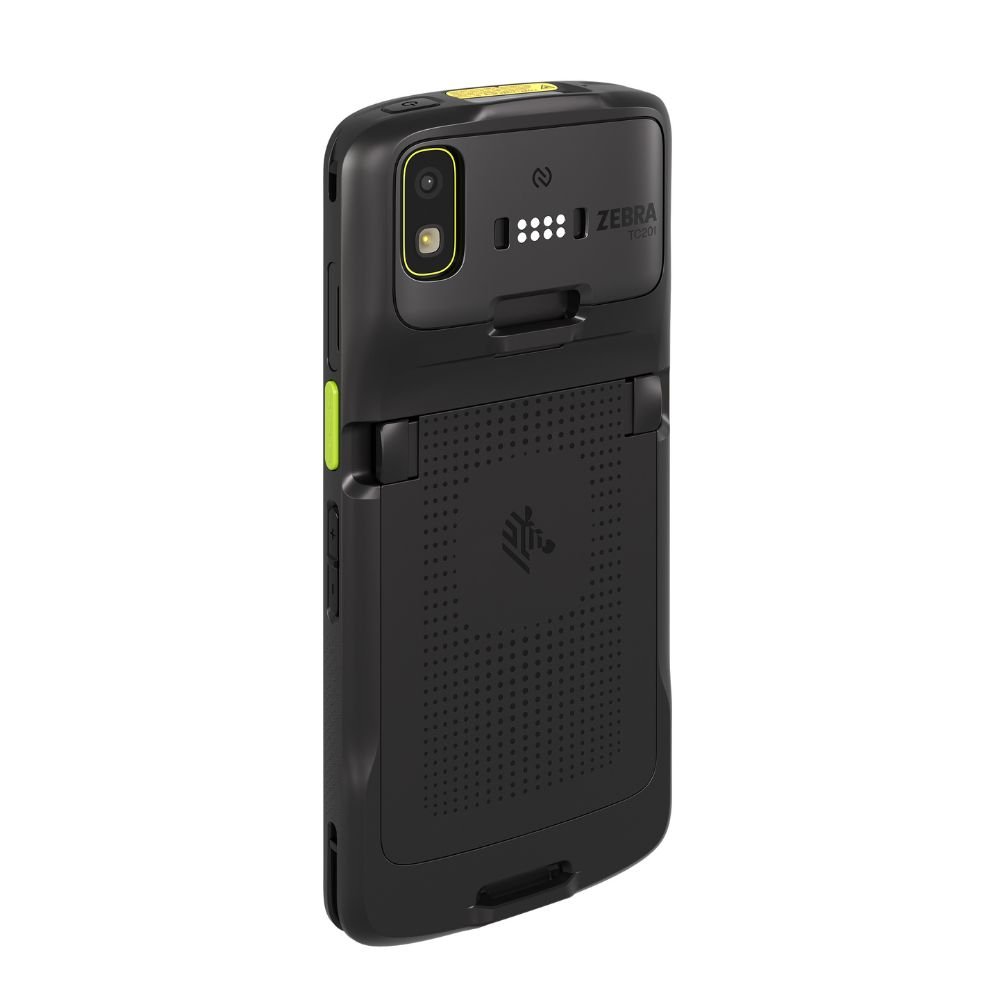

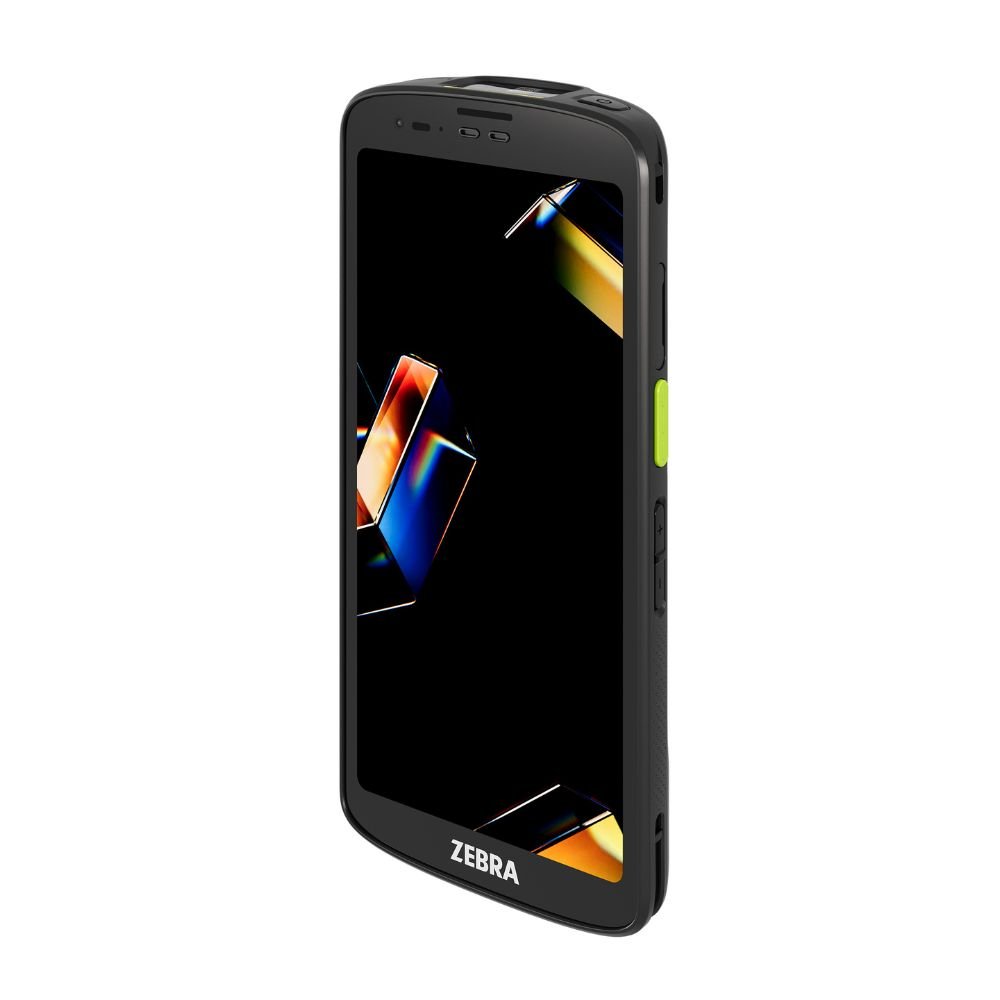

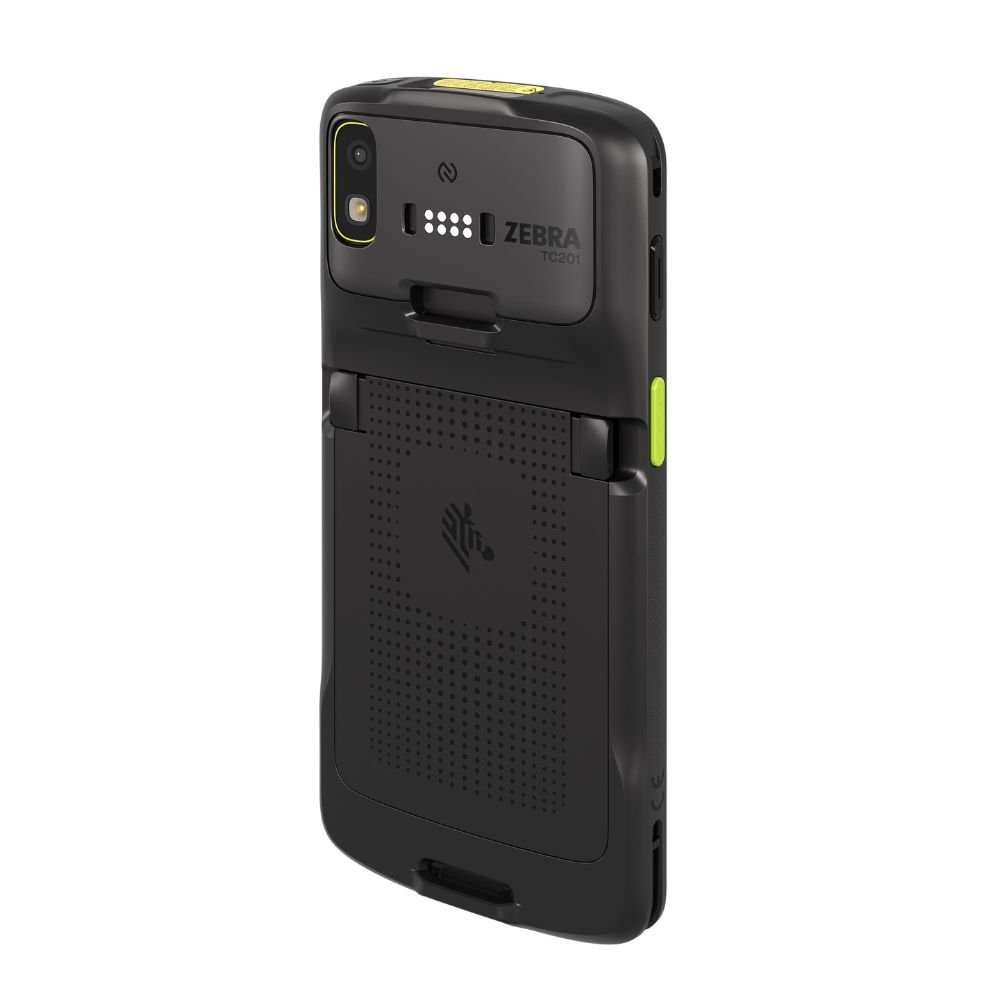

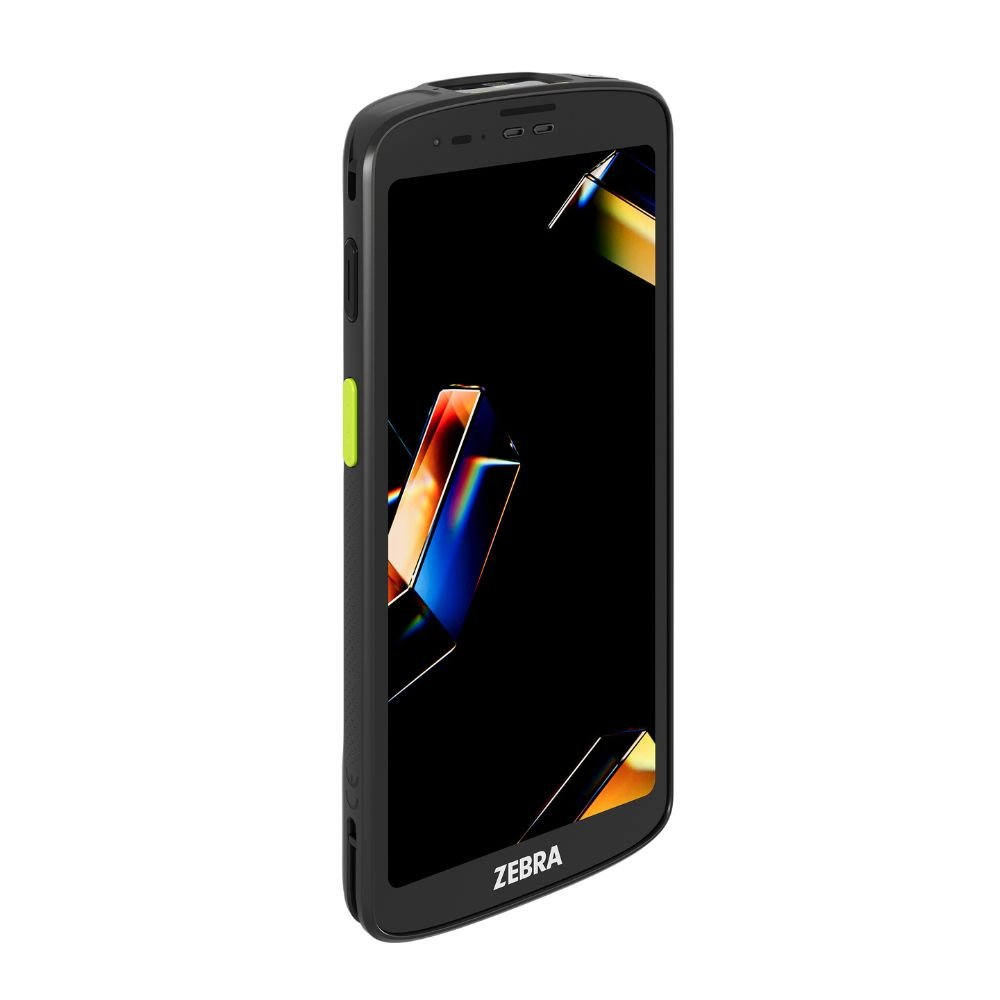

Zebra TC201 5G Wi-Fi 7 Mobile Terminal without Scanner TC201G-3N306BA00-A6

Zebra TC201G-3N306BA00-A6 – 5G mobile terminal without dedicated scanner

The Zebra TC201G-3N306BA00-A6 is a WAN configuration of the Zebra TC201 mobile terminal, designed for enterprise applications that require always-on connectivity, mobile app access, and photo capture, without the need for a professional barcode scanning engine.

The model combines 5G cellular connectivity with Wi-Fi 7, a 6-inch display, 6GB of RAM, and 64GB of internal storage. The configuration includes a 16MP rear camera, a 5MP front camera, and a standard battery.

The terminal does not include a dedicated scanning engine and does not have a Back I/O interface. It is recommended for field services, transportation, communication, order management, photo documentation and mobile applications that do not involve intensive scanning.

See the full presentation of the Zebra TC201 series .

Main features

• Zebra TC201 mobile terminal in WAN configuration;
• 5G cellular connectivity;
• Wi-Fi 7 for enterprise wireless networks;
• 6-inch touchscreen;
• 6GB RAM memory;
• 64 GB internal storage;
• 16 MP rear camera;
• 5 MP front camera;
• standard removable battery;
• without dedicated scanning engine;
• without Back I/O interface;
• ROW variant for international deployments.

Exact configuration TC201G-3N306BA00-A6

Characteristic	Configuration
Product code	TC201G-3N306BA00-A6
Family	Zebra TC201
Network type	WAN and WLAN
Cellular connectivity	5G
WiFi	Wi-Fi 7
Scanning engine	Not included
Professional 1D/2D scanning	Not
RAM memory	6GB
Internal storage	64GB
Screen	6 inches
Rear camera	16 MP
Front camera	5 MP
Back I/O interface	Not included
Battery	Standard
Hot swap	Not indicated in the supplied configuration
Secure Element	Not indicated in the supplied configuration
Integrated UHF RFID	Not indicated in the supplied configuration
Region	ROW – Rest of World

5G connectivity for field work

The TC201G-3N306BA00-A6 is a WAN configuration designed for users who need to access company applications and data outside of the Wi-Fi network.

5G connectivity can support activities such as:

• updating orders and tasks in real time;
• accessing cloud applications;
• sending photos and documents;
• communication with the dispatcher or technical team;
• consulting addresses and routes;
• updating intervention sheets;
• reporting incidents in the field;
• operational data synchronization.

Wi-Fi 7 for connecting to company infrastructure

In addition to the cellular network, the terminal includes Wi-Fi 7 for connecting to the wireless infrastructure available in the office, warehouse, store, factory or service center.

Wi-Fi 7 can be used for:

• accessing ERP and CRM applications;
• synchronization of orders;
• sending photos;
• voice and video communications;
• updating documents;
• accessing cloud services;
• roaming between company access points.

The combination of 5G and Wi-Fi 7 allows the use of the same terminal inside the location and during field activities.

Configuration without barcode scanner

The TC201G-3N306BA00-A6 does not include a dedicated barcode scanning engine. The configuration is intended for applications where professional scanning is not a primary requirement.

The model is suitable for:

• consulting and updating orders;
• filling out digital forms;
• capture photos and documents;
• voice and video communications;
• navigation and access to maps;
• service and maintenance applications;
• task management;
• mobile applications developed for touch screen.

For workflows involving frequent scanning of 1D or 2D codes, a TC201 configuration equipped with an SR500 or AC670 motor should be selected.

The difference between a model without a scanner and one with SR500

Characteristic	TC201G-3N306BA00-A6	TC201 configuration with SR500
Dedicated scanning engine	Not	Yes
Professional 1D/2D scanning	Not	Yes
Recommended use	Applications, communication and documentation	Inventory, reception, picking and deliveries
5G connectivity	Yes	Depending on SKU
Wi-Fi 7	Yes	Depending on SKU

Choose this configuration when the terminal is mainly used for mobile applications, communication, and documentation.

For inventory, receiving, picking, shipping or scanning packages, a configuration with an SR500 engine is recommended.

6-inch screen for mobile applications

The 6-inch screen provides ample space for displaying applications, forms, documents, orders, and routes.

It can be used for:

• consulting worksheets;
• data entry via the virtual keyboard;
• viewing orders and addresses;
• filling out digital forms;
• displaying technical documentation;
• viewing photos;
• calls and collaboration applications.

6 GB RAM and 64 GB storage

The configuration includes 6 GB of RAM and 64 GB of internal storage .

This combination is suitable for:

• service and maintenance applications;
• mobile CRM and ERP applications;
• order management;
• communication and collaboration;
• capture and store photos;
• documents available offline;
• transportation and delivery applications without intensive scanning.

16 MP and 5 MP cameras

TC201G-3N306BA00-A6 includes:

• 16 MP rear camera;
• 5 MP front camera.

The rear camera can be used for:

• proof of the condition of a package or equipment;
• photographing documents;
• reporting damages;
• documentation of technical interventions;
• image capture for quality control;
• attaching photos to worksheets.

The front camera is suitable for video calls, remote collaboration, and other compatible applications.

No Back I/O interface

The configuration does not include a 2-pin or 8-pin Back I/O interface.

This should be checked before selecting accessories, as some Zebra products depend on rear contacts for power, communication, or mechanical connection.

Standard removable battery

The terminal is shipped with the standard battery specified for this configuration.

The standard battery is suitable for:

• regular work shifts;
• operators who prefer a lighter terminal;
• applications with periodic access to the load;
• fleets using additional batteries;
• activities with moderate energy consumption.

Recommended apps

Field services

• accessing intervention sheets;
• photographing defects;
• updating works in real time;
• consulting technical documentation;
• communication with the support team;
• data transmission via 5G.

Transportation and distribution

• consulting routes;
• updating the transport status;
• photographing documents and goods;
• communication with the dispatcher;
• confirmation of operations;
• accessing cloud applications.

Management and supervision

• monitoring operations;
• consulting reports;
• approval of tasks;
• communication with operators;
• viewing documents and photos;
• managing activities in multiple locations.

Retail and customer service

• stock consultation through applications;
• customer support;
• order processing;
• internal communication;
• photo capture;
• accessing product information.

Configuration content

• 1 × Zebra TC201 mobile terminal, SKU TC201G-3N306BA00-A6;
• 1 × standard battery compatible with Zebra TC201.

The dedicated scanner, cradle, power adapter, cable, additional battery, Rugged Boot, SIM card, and other accessories are not specified as included.

Frequently asked questions

1. Does TC201G-3N306BA00-A6 have 5G connectivity?

Yes. It is a WAN configuration with 5G connectivity.

2. Does it include Wi-Fi?

Yes. The terminal includes Wi-Fi 7 for connecting to the company’s wireless infrastructure.

3. Does it have a barcode scanner?

No. This configuration does not include a dedicated scan engine.

4. Is it suitable for intensive inventory?

Not the recommended configuration for intensive scanning. For inventory and picking a TC201 with SR500 or AC670 scanner should be selected.

5. What memory does it include?

The terminal has 6 GB of RAM and 64 GB of internal storage.

6. What rooms does it include?

The configuration includes a 16 MP rear camera and a 5 MP front camera.

7. Does it include Back I/O?

No. The model is configured without a Back I/O interface.

8. Does it have Hot Swap function?

Hot Swap is not indicated in the supplied configuration and should not be considered included.

9. Does it include Secure Element?

Secure Element is not indicated for this SKU.

10. For what applications is it recommended?

It is recommended for field services, communication, order management, photo documentation and mobile applications that do not require professional scanning.

Order Zebra TC201G-3N306BA00-A6

The Zebra TC201G-3N306BA00-A6 is recommended for organizations that need a 5G mobile terminal for applications, communication and documentation, without a dedicated scan engine.

The configuration is suitable for field services, transportation, supervision and other activities where permanent connectivity is more important than barcode scanning.

See Zebra mobile terminals or discover all Zebra products available at AutoID .
