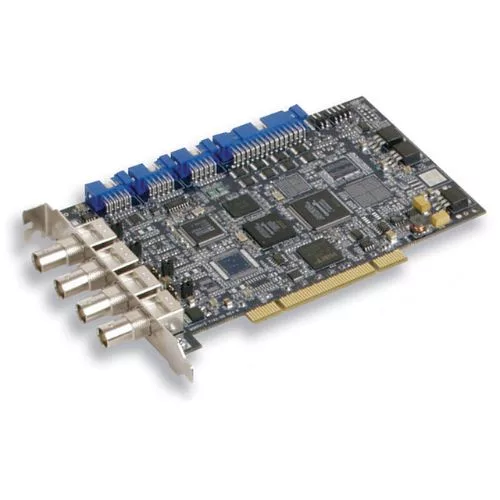

Zebra Matrox Morphis MOR4VDE/84/R2
995,00 € incl. VAT
Zebra Matrox Morphis MOR4VDE/84/R2 – PCIe x1 frame grabber, analog color/monochrome, with 4 video decoders and BNC inputs, ideal for surveillance and medical applications.
Zebra Matrox Morphis MOR4VDE/84/R2 – PCIe x1 frame grabber with 4 video decoders
Matrox Morphis MOR4VDE/84/R2 is a PCIe x1 frame grabber from the Morphis family, designed for standard analog video capture and/or real-time JPEG2000 compression. With a four video decoders architecture, the card enables fast and reliable capture from multiple sources simultaneously, making it ideal for video surveillance, industrial inspection, and medical archiving applications:contentReference[oaicite:0]{index=0}.
🔥 Key Benefits
- 🎥 Multi-source capture – up to 4 independent standard video inputs (NTSC, PAL, RS-170, CCIR)
- ⚡ Fast switching – dual/quad decoder architecture for ultra-fast switching between sources
- 📐 Real-time formatting – cropping (ROI), horizontal/vertical flip, subsampling
- 💾 Full compatibility – standard BNC connections, support for up to 16 CVBS or 8 Y/C via expansion modules
- 🧠 MIL (Matrox Imaging Library) software support – advanced programming for image capture, analysis and archiving
- 🔒 Industrial reliability – integrated watchdog, TTL auxiliary I/O and RS-485 interface for complete integration
📦 Typical applications
- 🚨 Video surveillance – capture and archiving from multiple analog cameras
- 🏥 Medical – archiving and transmitting images with JPEG2000 compression
- 🏭 Industrial – visual inspection and quality control on production lines
📐 General Specifications – Matrox Morphis MOR4VDE/84/R2
| Feature | Details |
|---|---|
| Host Interface | PCIe® x1 (up to 250 MB/s) |
| Video Decoders | 4 (color/monochrome) |
| Supported Sources | NTSC, PAL, RS-170, CCIR |
| Connectivity | BNC (video input analog) |
| Compression | JPEG2000 hardware (optional, depending on model) |
| Image format | BGR32, BGR24, RGB planar, YUV422, MONO8:contentReference[oaicite:1]{index=1} |
| I/O | 16 TTL I/Os, RS-485, 2 opto-isolated trigger inputs |
| Dimensions | 16.7 × 10.7 cm |
| Supported systems | Windows XP/Vista/7 (32/64-bit), Linux (32/64-bit) |
👉 Quick Tip: Choose Matrox Morphis MOR4VDE/84/R2 if you need multi-source analog video capture with fast switching and full support for surveillance and archiving applications.
