Vertical label dispenser VS60 CAB 5542511
484,00 € 467,54 € incl. VAT
CAB VS60 5542511 – VS60 label dispenser, vertical dispensing direction, without operating panel, automatic label feed after label removal, label width 0.3-2.5 inches (8-65 mm), label height wide 0.2-11.8 inches (5-300 mm) and Multi-Wide 0.2-4.3 inches (5-110 mm), roll diameter 7.8 inches, core size 1.5-3 inches, speed up to 7.8 inches per second

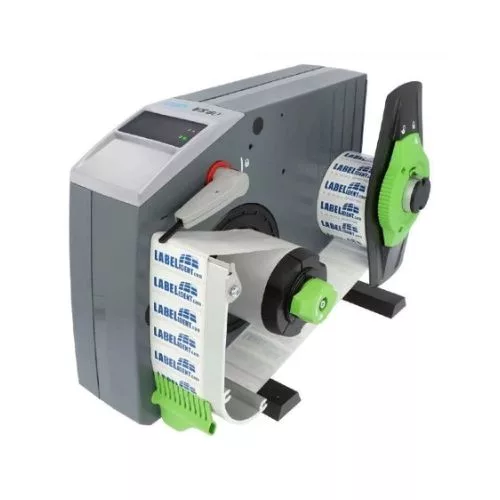

CAB VS60 Vertical Label Dispenser
CAB VS60 5542511 is a vertical label dispenser, used for automatically applying labels to various surfaces or packaging. Here are some of the key specifications and features of this label dispenser:
- Vertical Dispensing Direction: This label dispenser feeds and applies labels in a vertical direction.
- Automatic Label Feeding: After a label is applied, the dispenser automatically feeds the next label, making the labeling process efficient and continuous.
- Label Width Supported: This dispenser can handle labels with a width between 0.3 and 2.5 inches (8-65 mm).
- Label Height Supported: It can handle labels with different heights, including wide labels with a height between 0.2 and 11.8 inches (5-300 mm) and Multi-Wide labels with a height between 0.2 and 4.3 inches (5-110 mm).
- Roll Diameter: Features a roll with a diameter of up to 7.8 inches, which allows the use of larger label rolls.
- Core Size: Supports roll cores with sizes between 1.5 and 3 inches.
- Working Speed: This dispenser can apply labels at a speed of up to 7.8 inches per second, making it fast and suitable for production applications.
Label dispensers like the CAB VS60 are essential in automated labeling processes and help improve efficiency in packaging and labeling products. These devices can be used in a variety of industries, including manufacturing, packaging, and logistics.
| Common technical data | HS | VS | with “+” operating panel | |
|---|---|---|---|---|
| Delivery direction | horizontal | vertical | ||
| Label orientation – print image | by bottom | top | ||
| Labels | on rolls, standard or die-cut, optionally fan-folded | |||
| Materials | paper, textiles, plastics, also transparent | |||
| Supply rate up to | 200 mm/sec | 100 / 200 mm/sec | ||
| Label roll: outside diameter up to | 200 mm | |||
| core diameter | 38 – 76 mm | |||
| weight | 4 max. kg | |||
| winding direction | outside or inside | |||
| Rewinder | ||||
| Outside diameter liner up to | 155 mm | |||
| Label sensor | ||||
| Scan | leading edge of label | |||
| Distance to leading edge mm A | 5 – 55 mm | |||
| Pre-distribution: B | 4 – 18 mm | |||
| Panel operation | ||||
| Device indicator “ON” | Green LED | LED and label counter “ON” | ||
| Error | Red LED | Label counter | ||
| Selector switch: automatic or on-demand label feed | – | standard | ||
| Control button with label feed on demand | – | standard | ||
| Feed speed with selector switch | – | slow / fast | ||
| LCD display counter labels | – | 0 – 9999 | ||
| Control button resets label counter | – | standard | ||
| Distribution of display via external signal | – | standard | ||
| Connections | ||||
| Peripheral connection for desoldering on demand via external signal | – | standard | ||
| Input connector for devices without heating | Power supply | |||
| Power switch | On / Off | |||
| Operational Data | HS and VS | mobile | |
| Power supply | 100 – 240 V ~ 50/60 Hz | 16.5 – 25 VDC | Power consumption | standby < 5 W / typical 30 W / max. 100 W |
| Temperature / humidity: operation | +5 – 40°C / 10 – 85% non-condensing | ||
| repository | +0 – 60°C / 20 – 80% non-condensing | ||
| transport | – 25 – 60°C / 20 – 80% non-condensed | ||
| Noise level | < 60 dB | ||
| Approvals | CE, FCC Class A, ICES-3, cULus | ||
| Device specific dimensions | HS60 and VS60 | HS120 and VS120 | HS180+ and VS180+ | Width of labels, including liner | 8 – 65 mm | 20 – 120 mm | 80 – 180 mm |
| Label height single width | 5 – 300 mm | 8 – 600 mm | 20 – 600 mm |
| multi-wide | 5 – 110 mm | 8 – 110 mm | 20 – 110 mm |
| Device dimensions | |||
| Height x depth without material | 250 x 360 mm | 250 x 360 mm | 250 x 360 mm |
| Width | 180 mm | 230 mm | 300 mm |
| Weight | 3.6 kg | 4.0 kg |
