TWIN-CAT-2 label rewinder 10 inch dual spindle Labelmate LMR016/LMX462
1.687,95 € incl. VAT

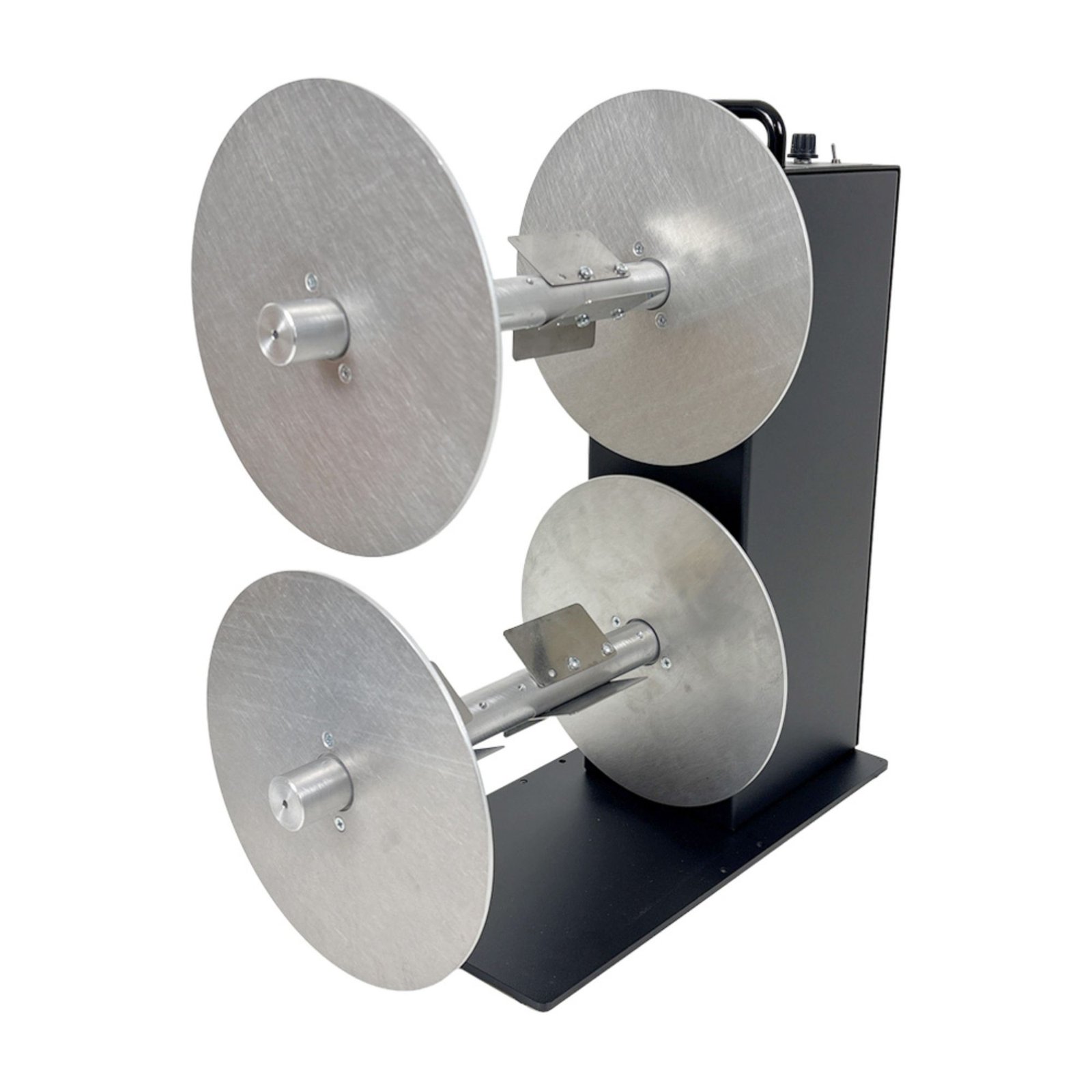

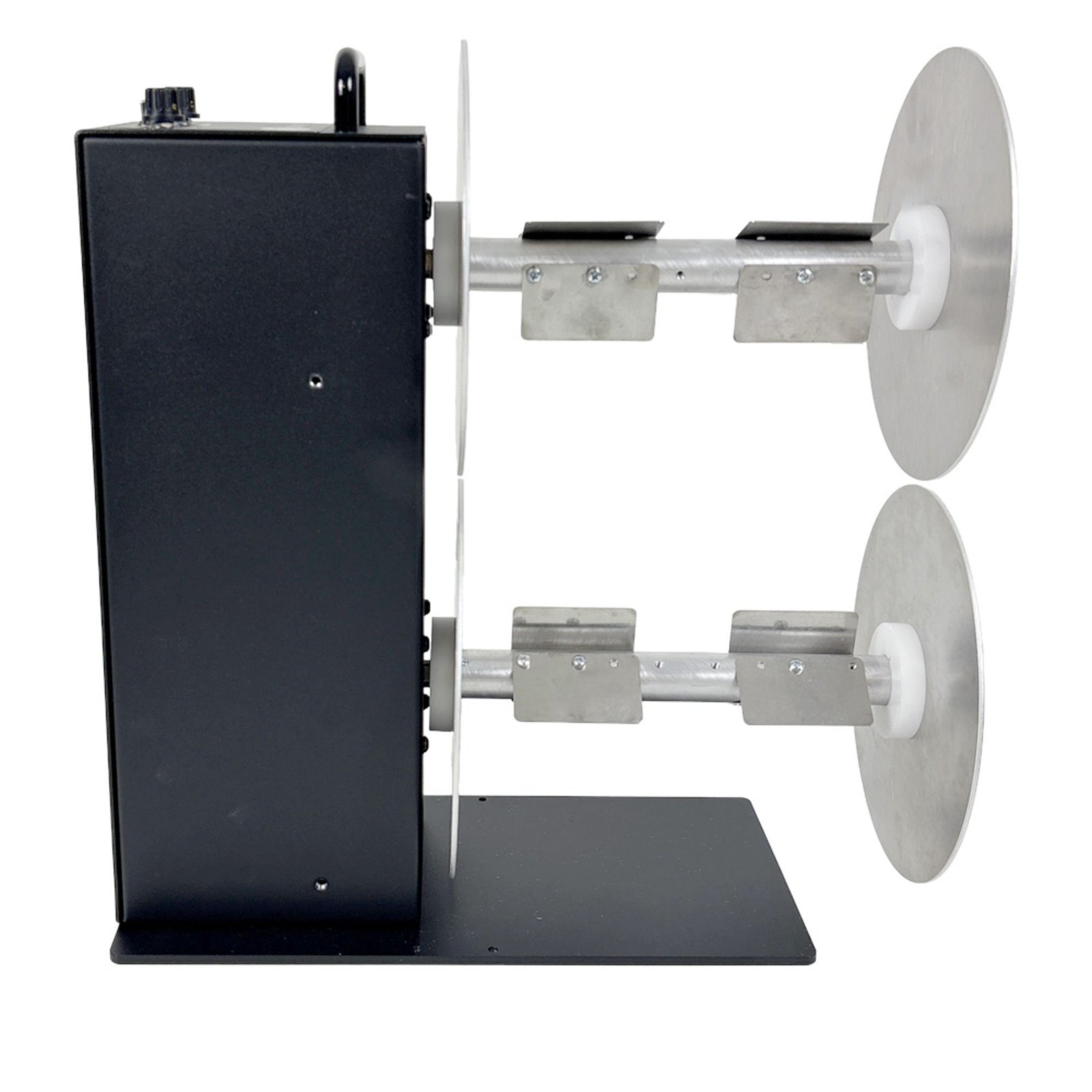

Labelmate TWIN-CAT-2-10” dual spindle station (LMR016/LMX462) with 2 10” core holders. Independent torque/speed + direction control, 2×Ø220 mm, 2×5 kg, speed up to 125 cm/s. Ideal for rewinding/unwinding.
TWIN-CAT-2 label rewinder 10 inch dual spindle Labelmate LMR016/LMX462
When you want to work with wider rolls and have “millimeter-level” control over the tension, the Labelmate TWIN-CAT-2-10” is exactly the kind of station that gives you freedom. The LMR016/LMX462 configuration means: TWIN-CAT-2 station (2 axes, 2 motors) + 2 10-inch core holders , ideal for flows where the material width matters.
- Dual spindle (2 axes) + 2 motors – you can rewind and/or unwind , controlled.
- Independent control on each axis: direction and speed/torque .
- 10” holders – suitable for wider materials, with valve/flange guidance.
- Ideal for : core change, inside/outside wound reversal, rewinding onto another core, preparing rolls for application/packaging.
Why the “WITH 10″ CORE HOLDERS” (LMX462) version?
Because you get two 10-inch core holders right out of the box, designed for working with wider materials (compared to standard holders). If you have wide applications, it’s a logical choice: fewer limitations, more control.
Technical specifications
| Characteristic | Value |
|---|---|
| Brandi | Labelmate |
| Model / Series | TWIN-CAT-2-10″ (Dual Spindle Station) |
| SKU / P/N | LMR016/LMX462 |
| Configuration | Dual spindle with 2 10″ core holders |
| Number of axles | 2 (dual spindle) |
| Direction | Bi-directional (rewind & unwind) |
| Control | Direction + speed/torque setting for each axis (independently) |
| Maximum material width (with 10″ core holders) | up to 255 mm |
| Maximum speed | up to 125 cm/sec (under nominal conditions) |
| Maximum roll diameter | 2 × 220mm |
| Maximum roll weight | 2 × 5 kg |
| Dimensions (W × D × H) | 180 × 370 × 470mm |
| feeding | Input 230V / 50Hz, Output 15VDC – 4.6A |
| Guarantee | 2 years (1 year for power supply) |
What do you get in the package?
- Dual spindle station Labelmate TWIN-CAT-2 (LMR016)
- 2 × 10″ core holder (LMX462)
- Power supply
- Documentation / instructions
