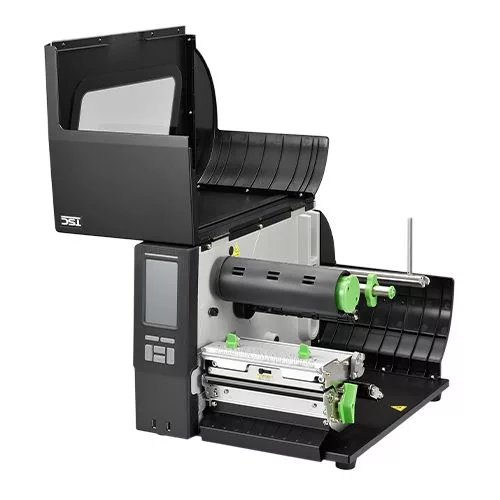

TSC MH Series 6-Inch Thermal Printer

TSC MH Series 6-Inch Industrial Thermal Printer – Speed ​​and Extended Width for Professional Labels

The new TSC MH Series 6-inch is the top of the line in industrial label printers, designed for demanding applications in manufacturing, logistics, signage and distribution. The MH261T and MH361T models integrate advanced technologies for high-resolution printing and speeds up to 12 ips, with a maximum width of 168 mm.

Key Technical Features

• Resolution: 203 dpi (MH261T) or 300 dpi (MH361T) for detailed barcodes and fine text
• Maximum speed: up to 305 mm/s
• Print width: max. 6.61” (168 mm)
• Full connectivity: Ethernet, USB, RS-232, GPIO, optional Wi-Fi + Bluetooth
• Remote management: TSC Console, SOTI Connect (optional license)

Benefits for Your Business

• Media adaptability: supports label rolls up to 6.8″ wide, including fan-fold, notch and black mark
• Industrial durability: robust die-cast aluminum mechanism and transparent media viewing window
• Easy maintenance: print head and rollers are easily replaced, without special tools
• Automatic head error detection printing: TSC Sense Care system – reduces operational downtime

Recommended Applications

• Product labeling in factories and assembly centers
• Logistics and transportation – large labels for pallets and parcels
• Customized signage labels (vinyl, indoor/outdoor signage)

Detailed Technical Specifications

• Memory: 256 MB RAM / 512 MB Flash (expandable up to 32 GB via microSD)
• Supported media types: continuous, die-cut, black mark (back only), fan-fold, notch
• Ribbon: max. length 450 m; width 2″ – 7″
• Optional connectivity: Wi-Fi 802.11 a/b/g/n/ac + Bluetooth 4.2

Available models

• MH261T: 203 dpi resolution, max. speed 12 ips
• MH361T: 300 dpi resolution, max. speed 10 ips

Why choose the MH261 series?

If you need large, clear and fast labels in a demanding industrial environment, the TSC MH261 Series is the ideal choice. With high performance, full connectivity and modern management options, these printers reduce costs and increase productivity at the enterprise level.
