Touchscreen Monitor 17″ SXGA 5-Wire Resistive, 1 Touch, TN, HDMI/DP/VGA – iiyama T1731SR-B1S
454,96 € incl. VAT
IIYAMA T1731SR-B1S 17″ touchscreen monitor with 5-wire resistive technology, HDMI, DisplayPort and VGA connectivity, ideal for commercial and industrial applications. Ergonomic design, durable and compatible with Windows and Linux.

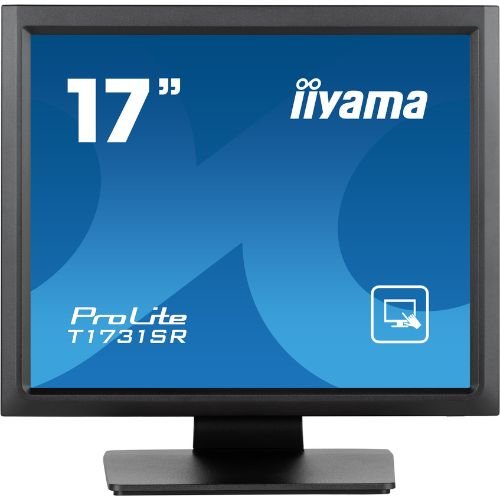

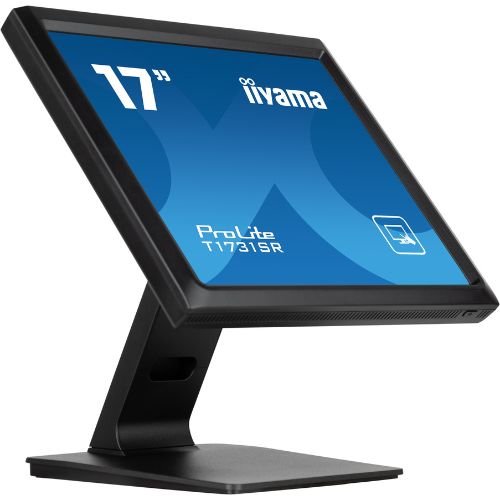

IIYAMA ProLite T1731SR-B1S – 17” touch monitor, 5:4, 5-wire resistive (single-touch), TN panel, anti-glare glass, IP54 (front) – ideal for POS, front-desk and industrial
iiyama ProLite T1731SR-B1S is a 17” (5:4, 1280×1024) touch monitor with 5-wire resistive technology – robust, gloves tolerant and passive stylus, perfect for repetitive workflows in POS, receptions and industrial HMI. It has HDMI + DisplayPort + VGA and USB inputs for touch (HID), +90° / –5° tilt stand for digital signature and IP54 front for dust and splashes – just what you need in public spaces.
Why choose T1731SR-B1S
- 5-wire resistive touch (single-touch): works with finger, passive stylus and glove – very reliable in intensive use.
- 17” 5:4 display at 1280×1024: professional format with more height for POS/HMI lists/tables.
- IP54 on the front: dust and splash resistant, suitable for front-desk and light industrial environments.
- Universal connectivity: HDMI, DisplayPort, VGA + USB for touch, 2×1 W speakers and audio-out.
- Ergonomics & security: tilt +90°/–5°, OSD key-lock, Kensington-lock ready, cable management.
Recommended scenarios
- Retail & POS: cash register, digital signatures, forms, loyalty screens.
- Reception & public services: check-in/out, public relations counters, ticketing.
- Industrial & HMI: control panels with large buttons, production lines, service stations.
- Museums & expos: info-kiosks with intensive use, areas with varying traffic and conditions.
Technical Specifications
| Section | Specifications |
|---|---|
| Model | ProLite T1731SR-B1S |
| Panel / Image | 17” (43 cm) • TN • 1280×1024 @60 Hz (5:4) • panel brightness 250 cd/m² (200 cd/m² with touch) • transmittance 80% • contrast 1000:1 (with touch) • response time 5 ms BTB • viewing angles 170°/160° (R/L 85°/85°, U/D 80°/80°) • 16.7 million colors • viewable area 338 × 270 mm • pixel pitch 0.264 mm • anti-glare finish, matte black. |
| Touch technology | 5-wire resistive (single-touch) • methods: stylus, finger, glove • USB interface (HID). |
| Inputs / Outputs | VGA ×1, HDMI ×1, DisplayPort ×1 • Audio-out 3.5 mm ×1 • Speakers 2×1 W • HDCP: Yes. |
| Protection & Control | IP54 (front) • OSD key-lock • buttons: Menu, Up/Brightness, Down/Mute, Select, Power • OSD languages: EN, DE, FR, ES, IT, CN, JP • Plug&Play DDC2B. |

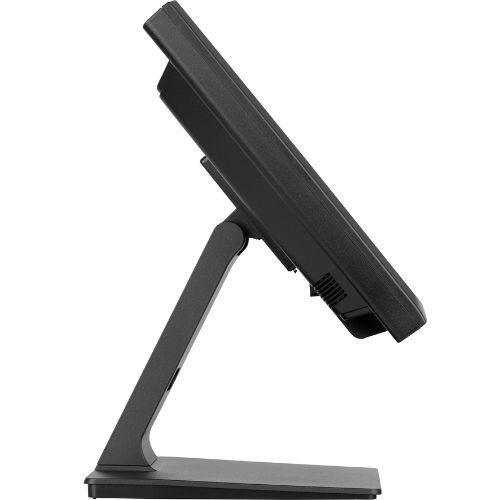

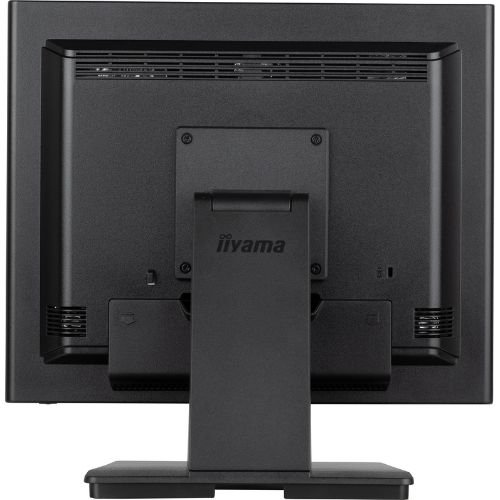

| Ergonomics & Montage | Inclination +90° / –5° • VESA 100×100 mm • cable management. |
| Power & Power Consumption | Internal Power Supply • AC 100–240 V, 50/60 Hz • 20 W typical, 1.5 W standby, 0.3 W off. |
| Dimensions & Weight | 387 × 378 × 239.5 mm (W × H × D) • 5.4 kg (net). |

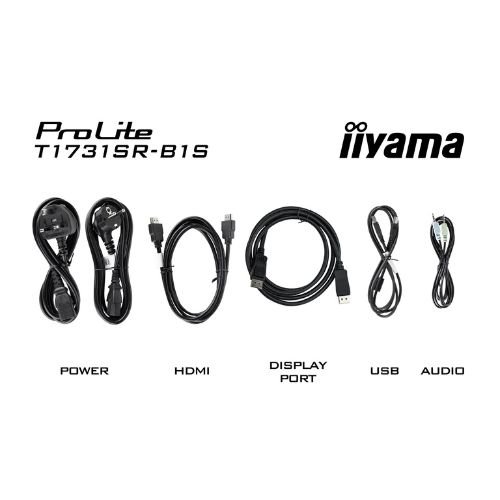

| In the box | Cables: power, USB, HDMI, Audio, DisplayPort • cable cover • Quick guide & Safety guide. |
| Compliance & Energy | CE, EAC, RoHS, ErP, WEEE, cULus, VCCI, REACH, UKCA • Energy Class E (EU 2017/1369) • REACH SVHC: Pb >0.1% • EAN 4948570122127. |
“5-wire resistive means robustness and glove compatibility – exactly what you want in POS, reception or HMI.”
Benefits at a glance
- Single-touch resistive – reliable, tolerant to light dirt/liquids, ideal for repetitive processes.
- 5:4 format – more useful height for lists and tables.
- Full connectivity + USB touch plug-and-play.
- IP54 front and OSD lock – suitable for public spaces.
- Counter ergonomics – tilt +90° for comfortable signatures.
Frequently asked questions (FAQ)
1) Does the touch work with gloves?
Yes, the 5-wire resistive technology supports gloves and passive stylus.
2) Can I lock the menu in public spaces?
Yes, via OSD key-lock (button/port lock).
3) Can it be wall-mounted?
Yes, via VESA 100×100 mm (wall, arm, stand).
4) Does it have integrated speakers?
Yes, 2×1 W for basic signage and multimedia.
5) Is it suitable for dusty or splashy environments?
Yes, the front is IP54 (dust + splash).
6) What video ports does it have?
HDMI, DisplayPort and VGA, plus USB for touch.
7) What is the power consumption?
Approx. 20 W typical; 1.5 W in standby.
8) What comes in the box?
Power/USB/HDMI/Audio/DP cables, cable cover, guides.
