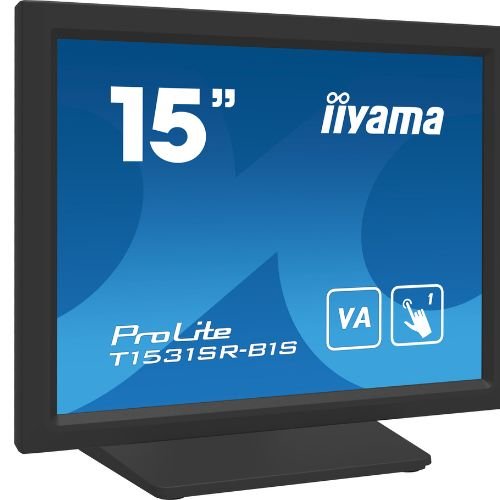

Touchscreen Monitor 15″ XGA 5-Wire Resistive, 1 Touch, VA, HDMI/DP/VGA – iiyama T1531SR-B1S
431,97 € incl. VAT
IIYAMA T1531SR-B1S 15″ touchscreen monitor with 5-wire resistive technology, HDMI, DisplayPort and VGA connectivity, Windows/Linux compatible. Ideal for use in retail, restaurants and industrial environments.
IIYAMA ProLite T1531SR-B1S – 15” touch monitor, 4:3, 5-wire resistive (single-touch), TN panel, anti-glare glass, IP54 (front) – ideal for POS, front-desk and industrial
iiyama ProLite T1531SR-B1S is a 15” (4:3, 1024×768) touch monitor with 5-wire resistive technology – robust, gloves tolerant and passive stylus, perfect for repetitive workflows in POS, reception, ticketing and industrial HMI. It features HDMI + DisplayPort + VGA and USB for touch (HID), has anti-glare glass for readability in ambient light and IP54 front for dust and splashes. The stand allows tilt +90° / –5° (excellent for digital signatures), and the VESA 100×100 mount makes it easy to mount on a wall or arm.
Why choose T1531SR-B1S
- 5-wire resistive touch (single-touch): works with finger, passive stylus and gloves – reliable in intensive use.
- 4:3 format at 1024×768: more height for lists/tables in POS/HMI applications (less scrolling).
- IP54 front + anti-glare: dust/splash resistant, visible in bright spaces.
- Universal connectivity: HDMI, DisplayPort, VGA + USB touch (HID), audio-out and speakers.
- Ergonomics & security: tilt +90°/–5°, OSD key-lock, Kensington-lock ready, cable management.
Recommended scenarios
- Retail & POS: cash register, digital signature, forms, loyalty.
- Reception & public services: check-in/out, public relations counters.
- Industrial & HMI: control panels with large buttons, service stations.
- Museums & expo: info-kiosk in areas with variable traffic and conditions.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite T1531SR-B1S |
| Panel / Image | 15” (38 cm) • TN LED • 1024×768 @60 Hz (4:3) • panel brightness 250–370 cd/m² (~200–330 cd/m² with touch) • contrast ~700–1000:1 • response time ~5–8 ms • viewing angles ~170°/160° • anti-glare glass, matte black |
| Touch technology | 5-wire resistive (single-touch) • methods: finger, passive stylus, glove • USB interface (HID plug-and-play) |
| Inputs / Outputs | HDMI ×1 • DisplayPort ×1 • VGA ×1 • USB (touch) ×1 • Audio-out 3.5 mm ×1 • integrated speakers (2× ~1 W) |
| Protection & Control | IP54 (front) – dust & sprinkles • OSD key-lock • buttons: Menu, Up/Brightness, Down/Mute, Select, Power • DDC/CI, Plug&Play DDC2B |
| Ergonomics & Mounting | Tilt +90° / –5° (signature mode) • VESA 100×100 mm • cable management |
| Compatibility | Windows 10/11, Linux (HID), POS/embedded compatible |
| Power & Consumption | Internal power supply • AC 100–240 V, 50/60 Hz • typical consumption ~9–15 W • ~1 W stand-by |
| Dimensions & Weight | Compact counter/front-desk case • weight ~3–4 kg |
| In the box | Power cable, USB (touch), HDMI (and/or DP, depending on market), cable management cover, guides |
| Compliance | CE, RoHS, ErP, WEEE, REACH, UKCA • Kensington-lock ready |
“5-wire resistive means rugged and glove-friendly – just what you need for POS, reception or HMI.”
Benefits at a glance
- Single-touch resistive – stable, accurate in repetitive workflows.
- 4:3 format – more usable height for list/table UIs.
- Full connectivity + USB touch plug-and-play.
- IP54 front and OSD lock for public spaces.
- Tilt +90° – convenient digital signatures.
Frequently Asked Questions (FAQ)
1) Does the touch work with gloves?
Yes, the 5-wire resistive technology supports gloves and passive stylus.
2) Can I lock the menu in public spaces?
Yes, via OSD key-lock (button/port lock).
3) Can it be wall-mounted?
Yes, via VESA 100×100 mm (wall, arm, stand).
4) Does it have built-in speakers?
Yes, for basic audio and multimedia signaling; there is also a 3.5mm audio-out.
5) What is the typical power consumption?
Around 9–15W, efficient for extended daily use.
6) What video ports are available?
HDMI, DisplayPort, and VGA, plus USB for touch functionality.
7) What are the advantages of the 4:3 format over 15”?
It offers more height for POS/HMI interfaces – more visible lists and tables.
8) Is it suitable for dusty/splashy locations?
Yes, the front is IP54, suitable for front desk and light industrial environments.
