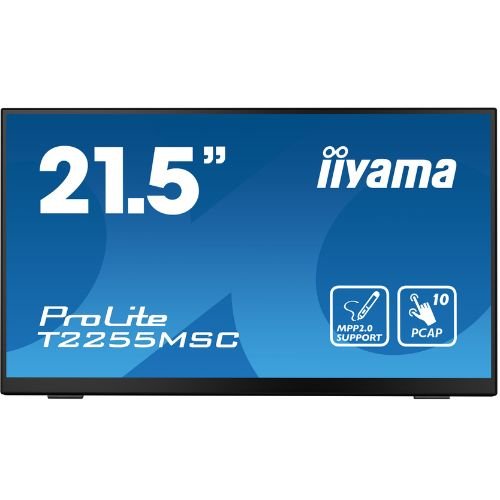

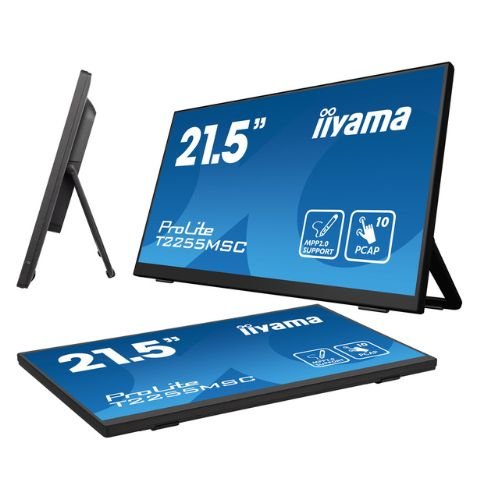

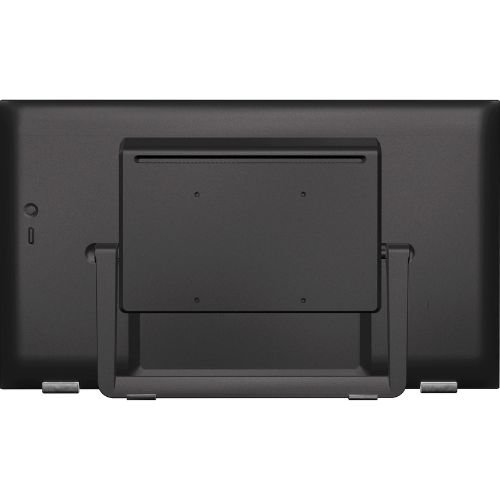

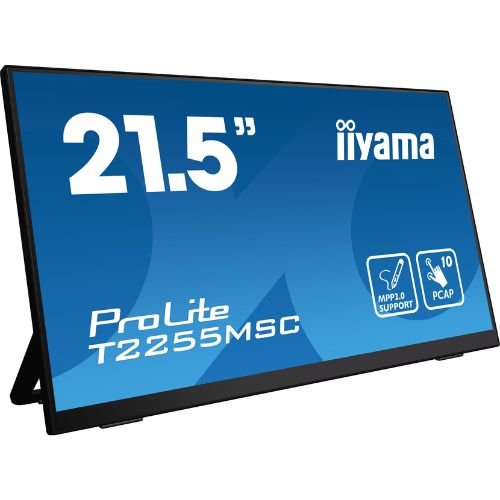

Touch Monitor 21.5″ PCAP 10 points, Full HD, IPS, Active Stylus MPP2.0, Anti-Glare – iiyama T2255MSC
346,06 € incl. VAT
The IIYAMA T2255MSC is a 21.5” Full HD touchscreen monitor with 10-point PCAP technology, optical bonding, MPP 2.0 active stylus support, edge-to-edge glass and anti-fingerprint treatment. It offers excellent precision, wide viewing angles and advanced functionality for creative applications.
IIYAMA ProLite T2255MSC-B1 – 21.5” IPS, DeepContrast-PCAP+ 10-touch touch monitor, edge-to-edge glass, anti-fingerprint, MPP 2.0 stylus support
iiyama ProLite T2255MSC-B1 is a 21.5” Full HD touch monitor with IPS panel and PCAP 10-touch technology with optical bonding (DeepContrast-PCAP+) for fast, precise response and low reflections. The edge-to-edge glass has an anti-fingerprint coating, and the MPP 2.0 (Microsoft Pen Protocol) active stylus support allows writing and drawing with tilt – the line thickness adjusts naturally depending on the tilt of the pen. The ergonomic design with flexible stand (+15° / –70° tilt), USB 3.2 hub and easy cable management makes the T2255MSC the right choice for POS/retail, reception, education, office and creative applications.
Why choose T2255MSC-B1
- Natural writing with active stylus: MPP 2.0 support with smooth response and tilt function.
- Clear image, accurate colors: IPS panel with 178°/178° viewing angles and optical bonding for minimal parallax.
- Precise 10-point touch: PCAP with palm rejection – works with stylus, finger or glove (latex).
- Always clean screen: anti-fingerprint glass and anti-glare for excellent readability.
- Modern connectivity + hub: HDMI, DisplayPort, Audio out, 2×3 W speakers, USB Hub x2 (USB 3.2 Gen1).
- Front-desk ergonomics: +15° / –70° support, VESA 100×100 for mounting alternatives.
- Visual comfort & safety: Blue Light Reducer, Flicker-Free, OSD key lock.
Recommended scenarios
- Retail & POS: digital signatures, forms, assisted payments, customer surveys.
- Reception & hospitality: check-in, wayfinding, self-help info-desk.
- Education & office: whiteboard, document annotations, feedback desk.
- Creative & production: sketching with stylus MPP, control panels and timelines.
Technical specifications
| Section | Specifications | |
|---|---|---|
| Model | ProLite T2255MSC-B1 | |
| Screen | 21.5” (54.5 cm), IPS • 1920×1080 @60 Hz (Full HD, 16:9) • panel brightness 400 cd/m² (360 cd/m² with touch layer) • transmittance 90% • static contrast 1000:1 • response time 5 ms GTG • viewing angles 178°/178° • viewable area 478.7 × 260 mm • pixel pitch 0.249 mm • matte black bezel, edge-to-edge glass | |
| Touch | 10-point PCAP (HID) • optical bonding (DeepContrast-PCAP+) • ±2 mm accuracy • methods: stylus/ finger/ glove (latex) • palm rejection • USB interface • MPP 2.0 active stylus support (with tilt) | |
| Audio & Hub | Speakers 2 × 3 W • Audio-out 3.5 mm • USB Hub x2 (USB 3.2 Gen1, 5 Gbps, 5V/900 mA) | |
| Inputs video | HDMI ×1, DisplayPort ×1 | |
| OSD & functions | Joystick OSD (right/menu/enter; left/input/exit; up/eco; down) • Blue Light Reducer, Flicker-Free, i-Style/Advanced Contrast, OverDrive, X-Res • OSD key lock, DDC/CI, Plug&Play DDC2B | |
| Ergonomics & montage | Inclination: +15° / –70° • VESA 100×100 mm
tr tdt MTBF 50,000 h (without backlight) tr tdt Internal Power Supply • AC 100–240 V, 50/60 Hz • Consumption 16 W typical, 1.5 W standby, 0.3 W off tdt Connectivity package |
Cables: power, USB, HDMI |
| Conformity | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA, cTUVus | |
| Energy | Class D (EU 2017/1369) • REACH SVHC: Lead >0.1% | |
| Dimensions & weight | 493.5 × 289.5 × 48.5 mm (W×H×D) • weight 3.2 kg | |
| EAN code | 4948570121625 |
Frequently asked questions (FAQ)
1) Can I use an active stylus?
Yes, the monitor supports MPP 2.0 with tilt function for a more natural writing/drawing.
2) Does the touch work with gloves?
Yes, with gloves latex, as well as with a stylus or finger.
3) Does it have an integrated USB hub?
Yes, 2 USB 3.2 Gen1 ports for peripherals or sticks.
4) What tilt angle does it have?
The stand allows +15° / –70°, ideal for front-desk and signatures.
5) Can it be mounted on a wall/stand?
Yes, via VESA 100×100 mm.
6) What video ports does it offer?
HDMI and DisplayPort, plus Audio-out and USB touch to PC.
7) What is the power consumption typical?
About 16 W, energy efficient for daily use.
8) Is it suitable for long-term use?
Yes, it is designed with MTBF 50,000 h and has visual comfort features.
