Terminal NQuire 201 Newland NQUIRE23M1RW-C

Newland NQUIRE23M1RW-C NQuire 201 Terminal

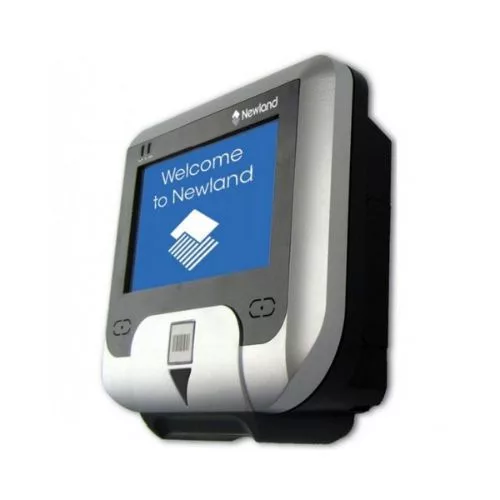

Newland NQUIRE23M1RW-C, part of the NQuire 200 series, is a customer information terminal, compact and versatile, with LCD touchscreen, 1D CCD scan engine and connectivity via LAN and WiFi (802.11b/g). It is ideal for displaying product information, price verification or loyalty points and can be easily mounted on a wall or shelf, thanks to VESA 75 compatibility.

With extensive features such as USB Host port, programmable GPIO and Power-over-Ethernet, the NQuire 201 can be integrated into complete self-service, access control or customer information solutions.

Key Features

• >Fast and accurate 1D CCD scanning – ideal for UPC, EAN, Code128 codes etc.

• Graphic LCD display (240×128 px) – clear visual user interface

• Extended connectivity – Ethernet + WiFi 802.11b/g

• Additional interfaces – USB Host, GPIO (2 inputs, 2 outputs)

• Easy mounting – compatible with VESA 75 mounts

• Optional – PoE power supply and RFID reader

Technical specifications

• Model: NQUIRE23M1RW-C

• Processor: 32-bit ARM9

• Memory: 32MB SDRAM, 8MB Flash, Mini SD support up to 2GB

• Scanner: 1D CCD Imager

• Network: LAN 10/100 Mbps, WiFi 802.11b/g

• Display: 240×128 px graphic LCD

• Interfaces: USB Host, GPIO, RJ45

• Power: 12V/2A or PoE (IEEE 802.3af)

• Mounting: VESA 75

• Operating System: Linux Kernel 2.6.25

• Dimensions: 140 x 140 x 60 mm

• Weight: 440 g

• Certifications: FCC, CE

Recommended Applications

• Retail – price display, promotions, loyalty points

• Supermarkets – price checker

• Office and access control – integration with automatic doors, RFID

• Self-service kiosks – customer information

• Pharma – product/prescription information display
