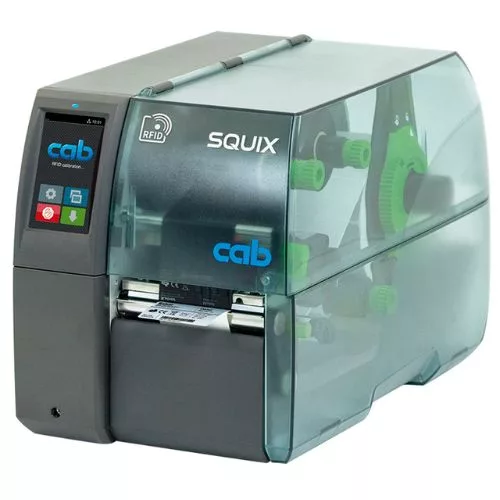

SQUIX 4.3/300M UHF RFID 4 On-Metal Label Printer CAB 5977019.407

SQUIX 4.3/300M UHF RFID 4 On-Metal Label Printer CAB 5977019.407

The SQUIX 4.3/300M UHF RFID 4 On-Metal CAB 5977019.407 label printer is a top-of-the-line solution for printing and encoding UHF RFID labels, specially designed for complex industrial applications. With support for direct thermal and thermal transfer printing, this printer offers high flexibility for standard labels and On-Metal labels (for applications on metal surfaces). Thanks to the 300 dpi resolution, the printer offers exceptional print quality, and the ability to print and encode RFID labels makes it ideal for logistics, production and inventory management.

Key Features:

• UHF RFID Printing and Encoding: High-quality printing and RFID encoding on standard labels and On-Metal labels.
• Printing Technology: Support for Direct Thermal Printing and Thermal Transfer.
• High Resolution: 300 dpi for optimal clarity of text, barcodes and graphics.
• Extended Connectivity: Multiple connection interfaces: USB, LAN (Ethernet) and serial port.
• Wide Label Size Support: Print width up to 108 mm, ideal for larger labels larger and more complex.
• RFID On-Metal Capability: The ability to print and encode labels for metal surfaces, an essential functionality in areas such as industrial and automotive equipment manufacturing.
• Advanced Control: Easy-to-use touch screen for fast and intuitive operation.
• Print Speed: Fast printing at a speed of up to 300 mm/s, reducing production time.

Technical Specifications:

• Model: SQUIX 4.3/300M UHF RFID 4 On-Metal
• Printing Method: Direct Thermal and Thermal Transfer Printing
• Resolution: 300 dpi (12 dots/mm)
• Maximum print width: 108 mm
• Media width (label): Maximum 114 mm
• Label length: From 4 mm to 2000 mm
• Maximum print speed: 300 mm/s
• Roll diameter: Max. 210 mm
• Internal diameter of the roll core: 76 mm
• Connection interfaces:
  • USB 2.0
  • LAN (Ethernet 10/100 Mbps)
  • RS-232 serial port
• Memory: 64 MB RAM, 256 MB Flash for storing fonts and images.
• Supported label types: Paper labels, plastic labels (PET, PP, PE) and On-Metal labels.
• Barcodes supported: 1D (EAN, UPC, Code 39, Code 128 etc.) and 2D (QR code, DataMatrix etc.).
• Integrated operating system: Friendly touch screen interface for quick use and intuitive configuration.
• RFID capabilities: UHF RFID encoding, including special On-Metal labels.
• Supported consumables: Thermal transfer ribbon with a length of up to 450 m, compatible with various types of labeling materials.

Advantages:

• On-Metal RFID support: Prints and encodes special On-Metal RFID labels, used on metal surfaces where other RFID labels do not work.
• Speed and precision: Print speed of 300 mm/s and resolution of 300 dpi, ideal for high-quality barcodes, texts and graphics.
• Full connectivity: The Ethernet interface allows for quick connection to the local network, while USB and serial ports provide additional connectivity.
• High efficiency: Thanks to its high print speed and the ability to process long labels, the SQUIX 4.3/300M is suitable for production environments with high demands.
• Intuitive control and operation: The graphical touch screen interface allows for quick and easy printer configuration.
• Durability: Robust, wear-resistant construction, suitable for industrial environments.

Areas of application usage:

• Logistics and Warehousing – for tracking products using RFID tags and barcodes.
• Industrial Manufacturing – used for printing component identification labels, including On-Metal labels for metal parts.
• Automotive – identifying spare parts and tracking assets in vehicle production.
• Distribution and Transportation – tracking and managing parcels and packages during delivery.
• Retail – managing and tracking inventory.
