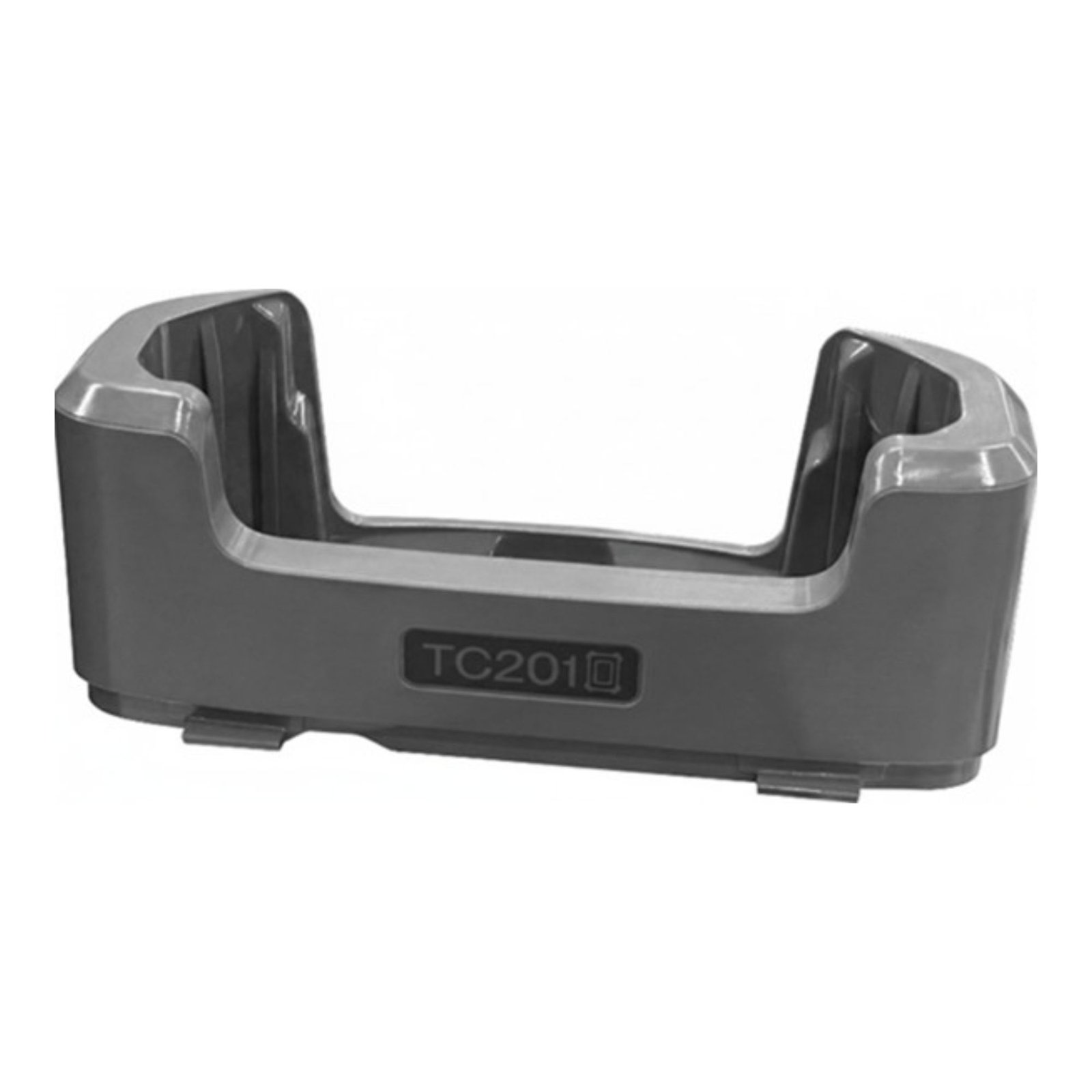

ShareCradle Zebra TC201 Cup Holder with Rugged Boot HLD-TCVTB-01

Zebra HLD-TCVTB-01 – replacement bracket for ShareCradle TC201

The Zebra HLD-TCVTB-01 is a replacement Cup Holder for Next Generation ShareCradle systems used with the Zebra TC201 mobile terminal equipped with Rugged Boot .

The component is intended to replace a damaged, worn or lost mount, allowing the docking position to be restored without purchasing a complete ShareCradle.

The HLD-TCVTB-01 is an individual service part and does not represent a complete charging station. The terminal, Rugged Boot, cradle, power supply and cables are not included.

Main features

• Replacement Cup Holder for Next Generation ShareCradle;
• compatible with Zebra TC201 terminal;
• designed for the device used with Rugged Boot;
• replaces a damaged or lost support;
• allows the existing ShareCradle database to be kept in use;
• individual part for service and maintenance;
• does not include the mobile terminal;
• does not include the Rugged Boot;
• does not include the ShareCradle base;
• does not include power supply or cables.

Compatibility and configuration

Characteristic	Detail
Product code	HLD-TCVTB-01
Accessory type	Cup Holder / replacement holder
Compatible system	Next Generation ShareCradle
Compatible terminal	Zebra TC201
Use with Rugged Boot	Yes
Use without Rugged Boot	This is not the specified configuration for this code.
Function	Replacing a damaged or lost media
Complete charging station	Not

Replacement part for damaged or lost supports

In daily use, the individual brackets of a ShareCradle can be damaged by handling, impact, or incorrect installation of the terminal. A bracket can also be lost during service or reconfiguration operations.

The HLD-TCVTB-01 allows the replacement of the respective component without changing the entire charging system.

Using a dedicated spare part can help:

• rapid return to service of the affected position;
• cost reduction compared to replacing the complete cradle;
• maintaining existing infrastructure;
• extending the useful life of the ShareCradle system;
• standardization of components used in the fleet;
• reducing downtime.

Use with Zebra TC201 and Rugged Boot

The cradle is sized for the Zebra TC201 terminal used with the Rugged Boot installed. This configuration allows the terminal to be inserted into the ShareCradle without removing the compatible protective case.

The Rugged Boot used with this configuration must be ordered separately.

See Rugged Boot Zebra SG-TCVT-BOOT-01 .

Not a full ShareCradle

The HLD-TCVTB-01 is only the individual cradle that the terminal is positioned in. The product does not include the base, charging circuitry, Ethernet or USB interface, power supply, or cables of a complete ShareCradle system.

compound	Included
Cup Holder HLD-TCVTB-01	Yes
Next Generation ShareCradle Base	Not
Zebra TC201 terminal	Not
Rugged Boot SG-TCVT-BOOT-01	Not
Power supply	Not
AC cable	Not
Communication cables	Not

When is media replacement recommended?

Replacement may be necessary when the existing support:

• is cracked or deformed;
• no longer properly secures the terminal;
• was damaged during handling;
• missing from ShareCradle configuration;
• prevents the correct positioning of the terminal;
• no longer allows proper contact with the docking system.

Before ordering, you must check if the problem comes from the stand and not from the base of the cradle, terminal, Rugged Boot or charging contacts.

Installation and service

Mounting the cradle must be done according to Zebra documentation for the Next Generation ShareCradle model used.

Before the intervention:

• disconnect the cradle from the power supply;
• remove the terminals from the station;
• check the cradle model and configuration;
• confirms the use of the TC201 terminal with Rugged Boot;
• inspect the base for other damage;
• avoids forcing the support during assembly.

If the base, contacts, or electrical components are damaged, replacing the Cup Holder alone may not fix the problem.

Recommended apps

Warehouses and logistics

• maintenance of stations used for picking terminals;
• replacement of damaged supports in loading areas;
• reducing fleet unavailability;
• re-creating docking positions used in multiple shifts.

Retail

• repair of back-office stations;
• maintenance of terminals used for inventory;
• replacement of lost supports;
• preserving existing infrastructure.

Courier and transportation

• service for stations used in hubs;
• replacement of components damaged by intensive use;
• rapid preparation of terminals for the next routes;
• maintaining operational loading positions.

IT service and administration

• preventive and corrective repairs;
• keeping spare parts for quick interventions;
• standardization of service components;
• reconditioning existing ShareCradle systems.

Package contents

• 1 × Zebra Cup Holder HLD-TCVTB-01.

ShareCradle base, Zebra TC201 terminal, Rugged Boot, power supply and cables are not included.

Frequently asked questions

1. What is Zebra HLD-TCVTB-01?

It is a replacement Cup Holder for the Next Generation ShareCradle, used with the Zebra TC201 terminal equipped with Rugged Boot.

2. Is the product a complete cradle?

No. It is the individual replacement stand only and does not include the ShareCradle base.

3. Is it compatible with Zebra TC201?

Yes. The product is specified for the Zebra TC201 terminal.

4. Does the terminal need to have Rugged Boot installed?

Yes. The HLD-TCVTB-01 is designed for the TC201 configuration with Rugged Boot.

5. Is the Rugged Boot included?

No. The Rugged Boot is ordered separately.

6. Is the Zebra TC201 terminal included?

No. The mobile terminal is not part of the package.

7. Does it include the power supply?

No. The product is a replacement mechanical component and does not include power.

8. Can it replace a lost bracket?

Yes. The product is intended to replace damaged or lost media.

9. Is it intended for the terminal without Rugged Boot?

No. The product description specifies use with the TC201 equipped with Rugged Boot.

10. Does the entire ShareCradle need to be replaced?

No, when the problem is limited to the individual support and the cradle base is functional, the HLD-TCVTB-01 allows for the replacement of only the affected component.

Order Zebra HLD-TCVTB-01

The Zebra HLD-TCVTB-01 is recommended for repair and maintenance of Next Generation ShareCradle systems used with TC201 and Rugged Boot terminals.

Before ordering, the cradle model, terminal configuration, and the fact that the damaged part is the individual support must be confirmed.
