SATO WS4-2 4” Desktop label printer, Direct Thermal & Thermal Transfer, 203dpi / 300dpi, USB, LAN, RS232, WLAN & Bluetooth optional. Speed up to 152 mm/s, 300m ribbon, optional cutter and dispenser. Ideal for retail, logistics and medical.
SATO WS4-2 Label Printer – 4” Desktop Direct Thermal & Thermal Transfer Series

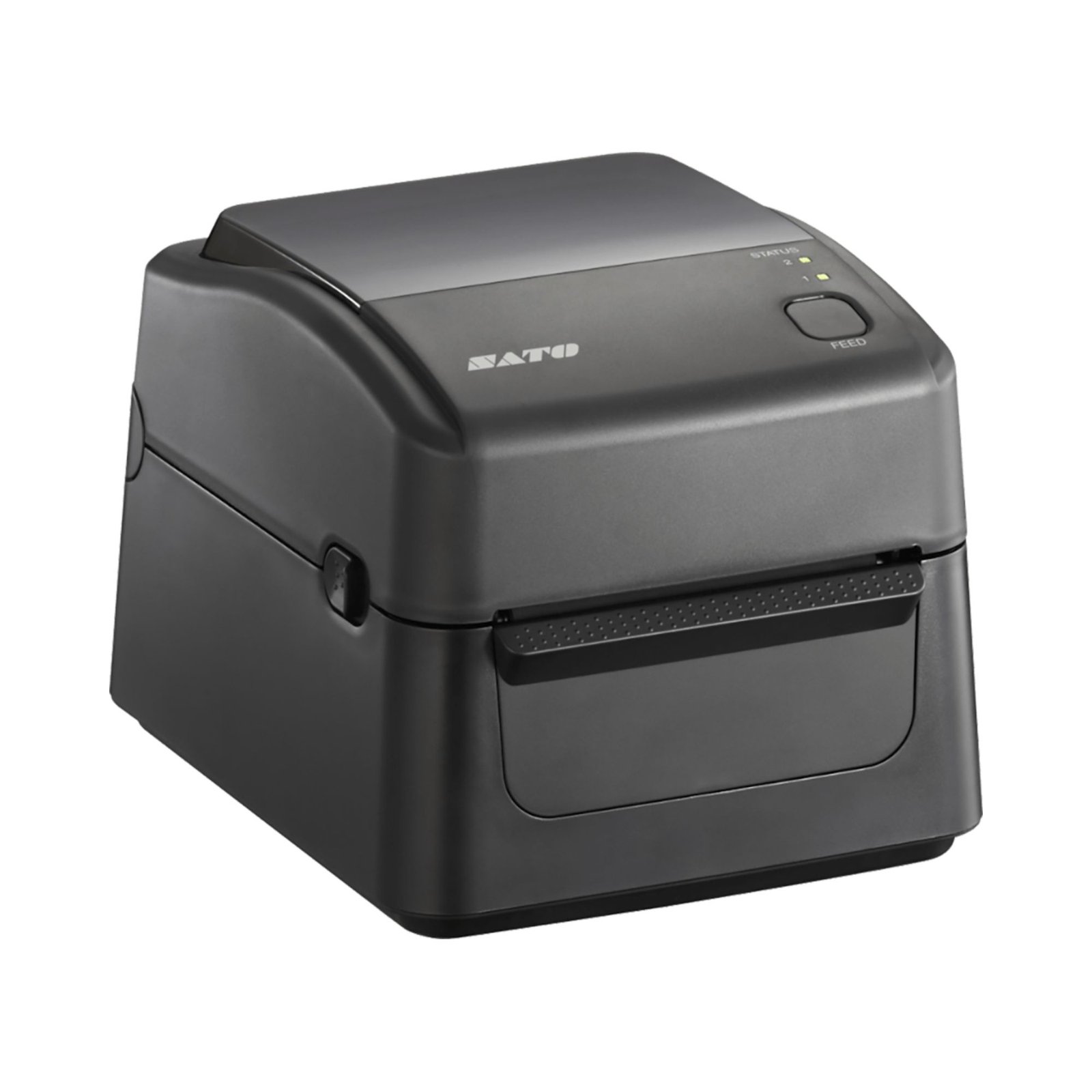

The SATO WS4-2 is a 4-inch professional desktop printer designed for multiple applications in retail, logistics, healthcare, food, automotive and manufacturing. With a modern and robust design, large media capacity and extensive connectivity options, the WS4-2 offers industrial performance at a competitive cost.
Available in Direct Thermal (DT) and Thermal Transfer (TT) variants, with resolutions of 203 dpi and 300 dpi , the WS4-2 series is ideal for mid-volume applications where reliability and flexibility are essential.
Main benefits
✔ Resolution 203 dpi (WS408-2) or 300 dpi (WS412-2)
✔ Print speed up to 152.4 mm/sec (6 ips)
✔ Maximum print width 104 mm (4.09”)
✔ Ribbon up to 300 meters (TT models)

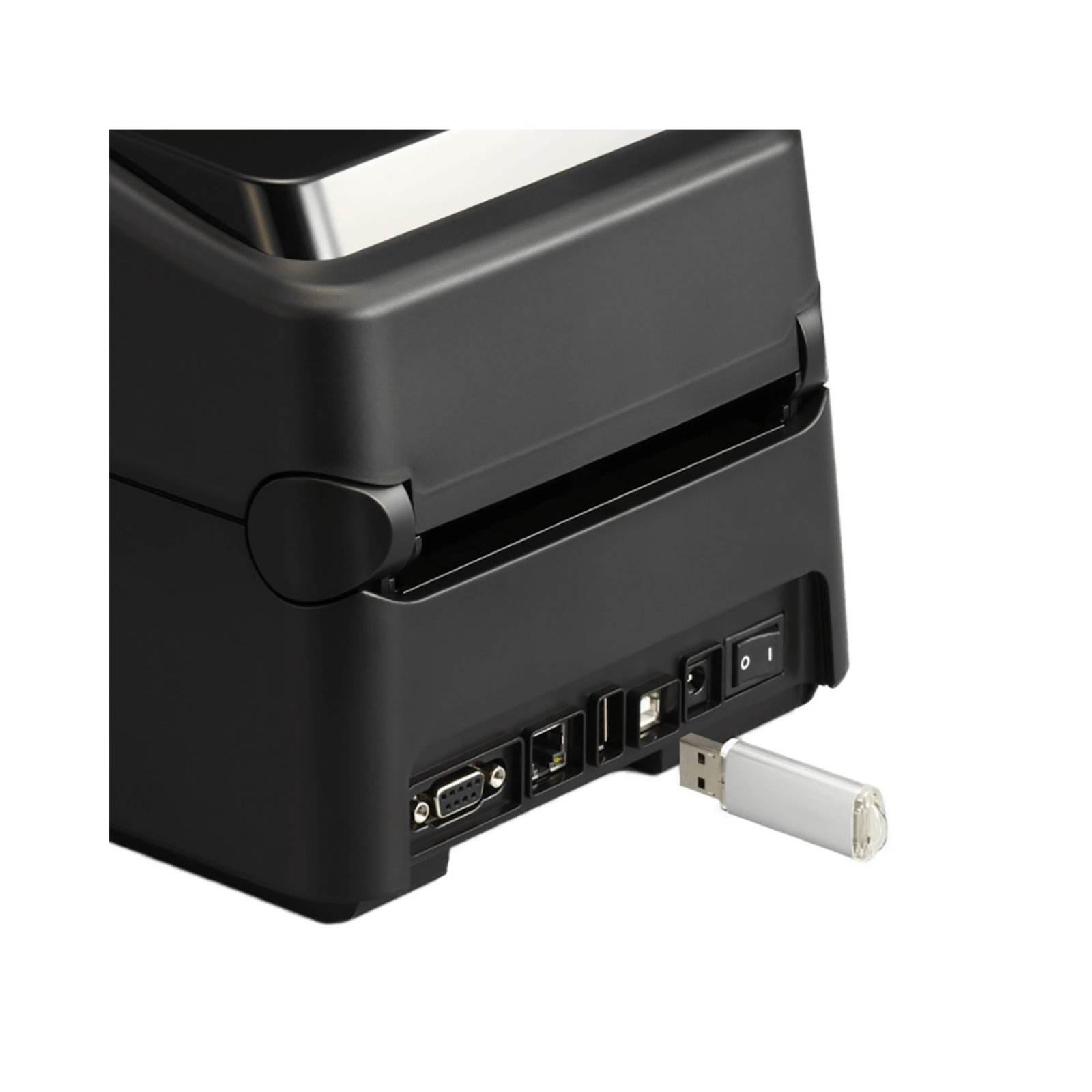

✔ USB, LAN, RS232 standard
✔ WLAN & Bluetooth optional
✔ Cutter, Dispenser, Offwinder available
✔ 5 standard emulations: SBPL, SZPL, SEPL, SDPL, SIPL
✔ Auto-calibration and adjustable I-mark sensor
✔ Firmware upgrade via USB
Technical specifications
Specification
WS408-2 (203dpi)
WS412-2 (300dpi)
Printing method
Direct Thermal / Thermal Transfer
Resolution
203 dpi (8 dots/mm)
305 dpi (12 dots/mm)
Maximum print width
104mm (4.09″)
Maximum print length
996 mm
Maximum speed
152.4 mm/sec (6 ips)
102 mm/sec (4 fps)
Memory
Flash ROM 16MB, RAM 128MB, external USB up to 16GB
Media width
22.4 – 115mm
Average thickness
0.06 – 0.19 mm
Ribbon (TT)
Up to 300m, width 40–110mm
INTERFACE
USB, LAN, RS232 / WLAN & Bluetooth optional
Operating temperature
5 – 40°C
CERTIFICATION
CE, FCC, UL, CSA, TUV GS, EAC, ROHS
Areas of use
Healthcare – patient, laboratory, pharmacy labels
Retail – price labels, barcodes, POS
Transport & Logistics – AWB, shipping labels
Food industry – traceability, expiration dates
Manufacturing & Automotive – component labels
Restaurants & HoReCa – product and ingredient labels
Integration and management
The WS4-2 series offers easy integration into existing infrastructures thanks to support for multiple printing languages and LAN protocols (TCP/IP, LPR, SNMPv2). The SATO Settings Utility allows for quick configuration of the printer, network and wireless connections.

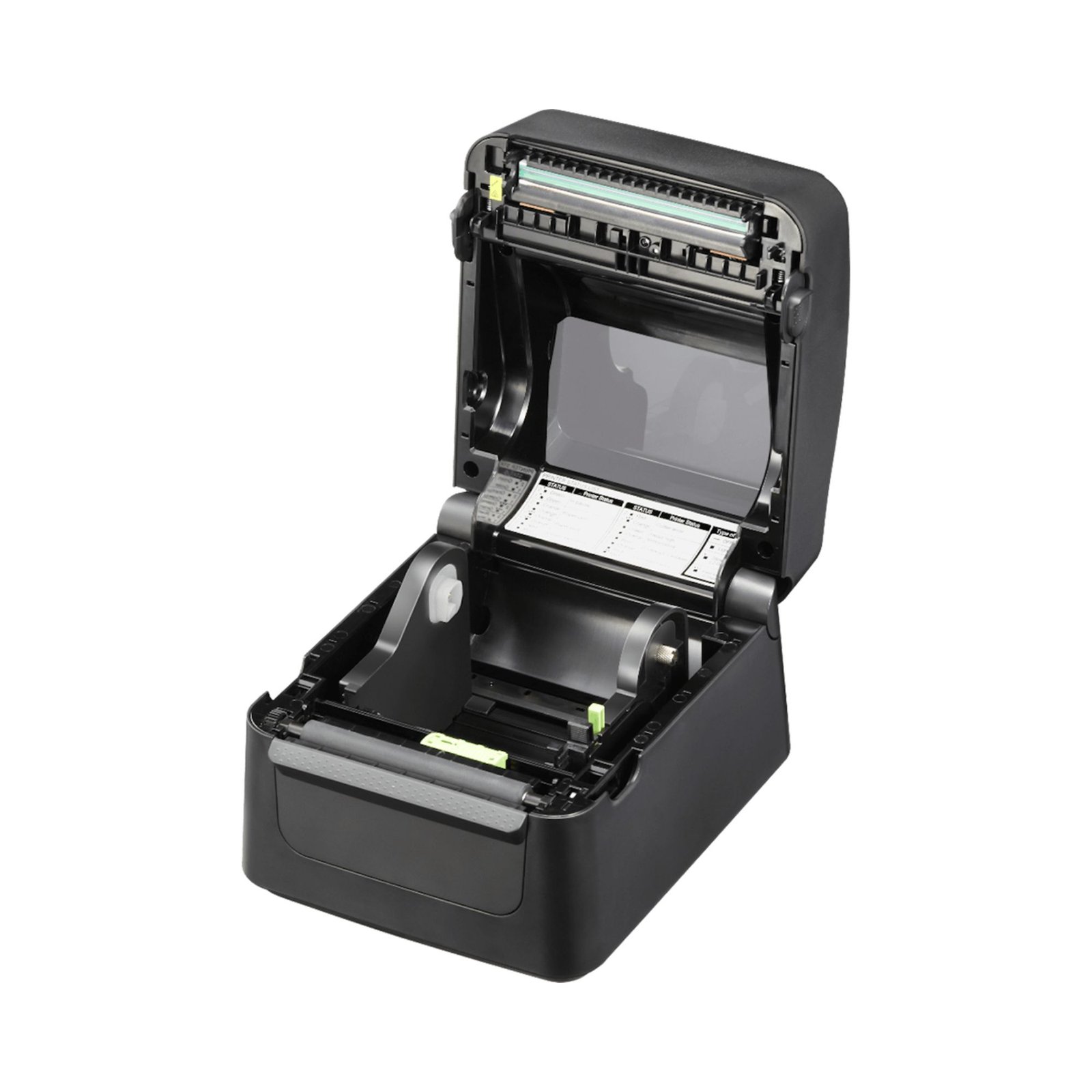

Wide access for changing media, quick printhead replacement and self-diagnostic functions reduce maintenance costs and increase equipment uptime.
Optional accessories
Dispenser (Peel-Off)
Full Cutter
External Rewinder
Unwinder
Bluetooth
Wireless LAN Kit
Real Time Clock
Cleaning Kit
