Panel PC 15.6″ Touchscreen Android 12, POE, NFC/RFID, RGB LED, IPS, 10 Touch – iiyama TW1625LASC-B3PNR
539,66 € incl. VAT
IIYAMA TW1625LASC-B3PNR All-in-one Android 14 with 15.6” Full HD screen (PCAP 10-touch, optical bonding), PoE, NFC/RFID, RGB LED, Wi-Fi/Bluetooth, 5MP camera and VESA 75×75 – ideal for meeting rooms, receptions and interactive signage.
IIYAMA ProLite TW1625LASC-B3PNR – 15.6” Touch Panel PC (Android 14), PCAP 10-touch, PoE, NFC/RFID, 5MP camera and RGB LED bar for meeting rooms, receptions & interactive signage
iiyama ProLite TW1625LASC-B3PNR is a 15.6” Full HD Android all-in-one with PCAP 10-touch and optical bonding for precise touch and reduced reflections. It is powered and connected via Power over Ethernet (PoE – IEEE 802.3at, 30W), simplifying installation at the door of rooms, in receptions or in corridors. It integrates NFC/RFID reader, RGB LED bar for status (free/busy), 5MP camera, microphone and speakers, and on the hardware side it offers Rockchip RK3576 octa-core, 4GB DDR4, 32GB eMMC, Wi-Fi 6/6E-ready (ax) and Bluetooth 5.3. It mounts quickly on the wall via VESA 75×75, runs Android 14 with Kiosk mode and is easily managed for 24/7 projects (iiSignage² included).
Strengths at a glance
- A single cable (PoE) for data + power – clean installation in high-traffic areas.
- Modern interaction: PCAP 10-touch with optical bonding, edge-to-edge glass.
- Identification & access control via NFC (NXP PN7160) and RFID 125kHz (ISO/IEC 11784/11785, EM4100/TK4100).

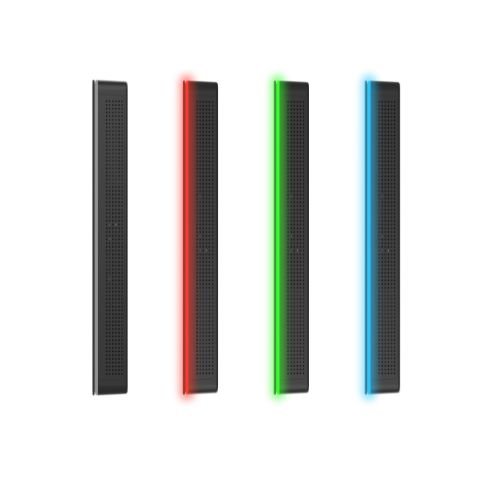

- Instant visual signaling with RGB LED bar (room status: free/occupied).
- Android 14 + Kiosk mode: install applications directly on the device; runs 24/7.
Recommended scenarios
- Room/desk booking with light status (RGB) visible from a distance.
- Receptions & self-check-in (camera + microphone + NFC/RFID).
- Interactive digital signage (iiSignage², landscape/portrait/face-up).
- Retail/QSR & hospitality: loyalty, questionnaires, fast feedback.
Technical specifications
| Section | Specifications |
|---|---|
| Screen | 15.6″ IPS, 1920×1080 (16:9), 450 cd/m² panel / 390 cd/m² with touch, 86% transmittance, 1000:1 contrast, 20 ms GTG response time, 178°/178°, edge-to-edge glass with anti-glare; optical bonding. |
| Touch | PCAP 10 points (HID); input: finger, latex glove, capacitive stylus; USB interface. |
| Platform | Android 14, RK3576 octa-core (A53×4 + A72×4, up to 2.2 GHz), 4GB DDR4, 32GB eMMC, SD slot. |
| Network & wireless | RJ-45 (PoE IEEE 802.3at/30W), Wi-Fi IEEE 802.11ax/ac/a/b/g/n, Bluetooth 5.3. |
| Front I/O & lateral | USB-A 3.2 Gen1 (5 Gbit, 900 mA) ×1, USB-A 2.0 (500 mA) ×1, USB-C (5V, 900 mA) ×1; Audio-out 3.5 mm; microphone; 2×2 W speakers. |
| Identification | NFC (NXP PN7160); RFID 125 kHz (ISO/IEC 11784/11785, EM4100/TK4100/GK4100). |
| Camera | 5 MP webcam integrated. |
| Software features | Kiosk mode, auto-rotation, on/off scheduling, basic application suite; iiSignage² CMS supported. |
| Mounting & mechanical | VESA 75×75 mm, cable-management, cable protection cover included; glass thickness 2.05 mm, hardness 6H. |
| Power & consumption | External adapter 12 V DC (EU/UK plugs included) or PoE; 11 W typical, 0.5 W stand-by/off. |
| Dimensions & weight | 397 × 256 × 28.5 mm, 2 kg (net) / 3 kg (gross). EAN: 4948570125692. |
| Conformity | CE, EAC, RoHS, ErP, WEEE, REACH, UKCA; REACH SVHC >0.1%: Lead. |
Why customers choose it
- Quick deployment: Apps install directly on the device (Android 14) and run in Kiosk mode.
- Single cable, zero clutter: PoE delivers data and power simultaneously.
- Remote status: Visible RGB LED for room availability.
- Contactless authentication: NFC/RFID for check-in/SSO/trigger scenarios.
Frequently Asked Questions (FAQ)
Can it work on PoE only, without an adapter?
Yes, the RJ-45 with PoE (802.3at) port provides power + data over a single cable.
Can it be locked for public use?
Yes, there is Kiosk mode and button/port locking options.
Does it support wall mounting?
Yes, via VESA 75×75 mm; accessories and cable cover are included.
What RFID standards does it recognize?
125 kHz: ISO/IEC 11784/11785, EM4100/TK4100/GK4100.
How bright is the screen?
Up to 450 cd/m² (panel), 390 cd/m² with touch layer.
