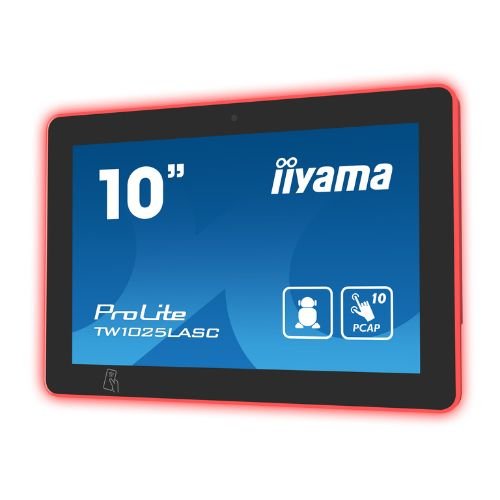

Panel PC 10.1″ Touchscreen Android 12, POE, NFC/RFID, RGB LED, IPS, 10 Touch – iiyama TW1025LASC-B1PNR
419,87 € incl. VAT
IIYAMA TW1025LASC-B1PNR All-in-one Android 10.1” with 10-touch PCAP, PoE, Wi-Fi/Bluetooth, camera & microphone, VESA 75×75. Ideal for kiosk, check-in, room booking, interactive signage.
IIYAMA ProLite TW1025LASC-B1PNR – 10.1” Touch Panel PC (Android), 10-touch PCAP, PoE, Wi-Fi, camera & microphone, VESA 75×75 – for kiosk, retail, reception & interactive signage
iiyama ProLite TW1025LASC-B1PNR is a 10.1” Android all-in-one with a 10-touch PCAP screen and full connectivity: Ethernet with PoE, Wi-Fi, Bluetooth, plus USB for peripherals. It is designed for self-service, check-in, room booking, interactive digital signage and retail/POS. It integrates a front-facing camera and microphone for recognition/scanning applications, supports 12 V DC or PoE power supply, and the VESA 75×75 mount and mounting kits make it easy to install on a wall, pole or stand.
Why choose TW1025LASC-B1PNR
- All-in-one Android with PCAP 10-touch: smartphone-like experience, fast response, natural gestures.
- Complete connectivity for professional projects: LAN with PoE, Wi-Fi, Bluetooth, USB for readers/NFC/scanners, etc.
- Integrated multimedia: camera, microphone and speakers, ready for check-in, call-desk, video surveys.
- Easy assembly & secure: VESA 75×75, cable management, anti-theft options.
- Reliable 24/7: designed for continuous use in public spaces, with OSD/port lock and easy management.
Recommended scenarios
- Retail & QSR: self-ordering, catalogs, loyalty, feedback terminals.
- Corporate & hospitality: room booking, receptions, visitor registration, wayfinding.
- Transport & public: ticketing, self-service info-desk, appointments.
- Education & museums: info points, guided tours, interactive questionnaires.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite TW1025LASC-B1PNR |
| Platform | Android (recent version for signage), quad-core SoC (industrial grade), integrated GPU |
| Memory & Storage | RAM 3–4 GB • eMMC 32–64 GB • microSD slot for expansion (depending on revision) |
| Screen | 10.1” (25.7 cm) • IPS • resolution 1280×800 (16:10) • brightness ≈300–400 cd/m² • contrast ≈800–1000:1 • viewing angles ≈178°/178° • edge-to-edge anti-glare/anti-fingerprint glass |
| Touch | Projected Capacitive (PCAP) • 10 points • support palm-rejection • input: finger, capacitive stylus, thin glove |
| Network & wireless | LAN RJ-45 (PoE 802.3af/at) • Wi-Fi (dual-band) • Bluetooth |
| I/O & peripherals | USB for peripherals (card reader/NFC/scanner) • USB OTG (after revision) • Audio-out 3.5 mm |
| Multimedia | Front camera (HD) • microphone • integrated speakers |
| Administration & security | OSD/port lock, auto-power-on, schedule programming, Kensington |

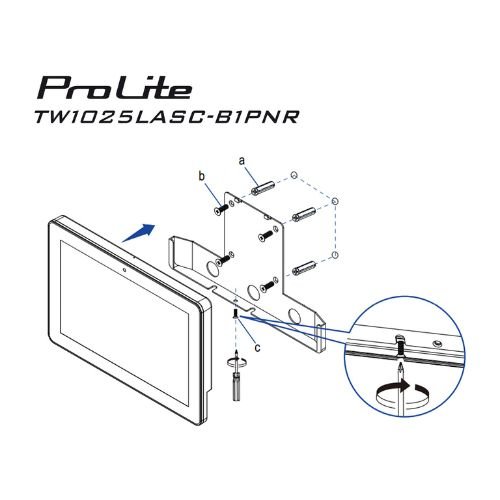

| Mounting | VESA 75×75 mm • wall/stand mounting accessories; cable-management |
| Power | PoE (802.3af/at) or DC 12 V (adapter) |
| Consumption | ≈10–18 W in operation; low standby |
| Environment & reliability | Operation 0…40 °C, humidity 10–80% non-condensing • intended 24/7 |
| Dimensions & weight | Compact format, suitable for eye-level mounting; VESA 75×75 |
| In the box | The TW1025LASC-B1PNR unit, DC adapter (where applicable), basic mounting kit, cables and a quick start guide |
| Compliance | CE, RoHS, ErP, WEEE, REACH, UKCA |
“An all-in-one Android display with PoE and PCAP 10-touch that shortens the path from idea to implementation – ideal for any self-service project.”
Benefits at a glance
- Quick installation: VESA mounting, PoE power supply from the network, simple administration.
- Flawless touch experience: 10-touch PCAP, easy-to-sanitize edge-to-edge glass.
- No external PC: Android integrated with Wi-Fi/Bluetooth/LAN for your application.
- Audience-ready: camera, microphone, speakers – everything you need for interaction.
FAQ (FAQ)
1) Can I power the device only from the network?
Yes, via PoE (802.3af/at). Alternatively there is 12 V DC.
2) Can I connect external readers (NFC/scanner)?
Yes, via USB (and/or serial, after revision) for compatible peripherals.
3) Does it run my Android signage apps?
Yes, it runs Android apps; we recommend those optimized for landscape/portrait orientation.
4) Does it have a camera and microphone?
Yes, they are integrated for authentication/scan and video-interaction.
5) Can it be mounted on a wall?
Yes, via VESA 75×75 or with dedicated kits.
6) Is it suitable for 24/7 operation?
Yes, it is designed for continuous operation in public spaces.
7) Does it support management/chron?
Yes, it includes on/off scheduling and management options (varies by revision).
8) Does the screen work with gloves?
Yes, with thin gloves; it also works with capacitive stylus.
