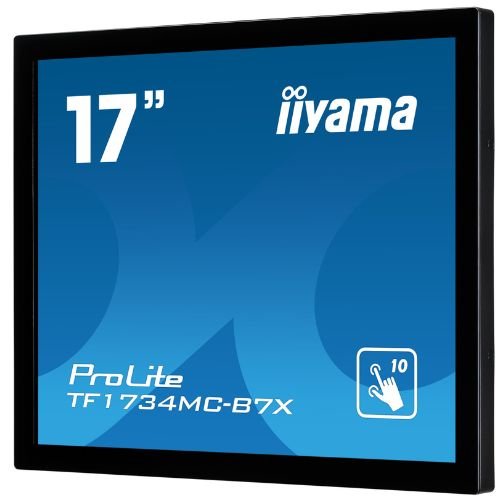

Open Frame Touchscreen Monitor 17″ SXGA PCAP 10 Touch, TN LED, Touch Through Glass, IP65 – iiyama TF1734MC-B7X
601,37 € incl. VAT
IIYAMA TF1734MC-B7X 17″ open frame touchscreen monitor with 10 touch points, PCAP technology and Touch-Through-Glass function. Robust design, IP65 protection, ideal for retail, kiosks and behind-the-window applications.
IIYAMA ProLite TF1734MC-B7X – 17” open-frame touchscreen, PCAP 10-touch, touch-through-glass (6 mm), TN LED, edge-to-edge anti-glare/anti-fingerprint glass, IP65 (front)
iiyama ProLite TF1734MC-B7X is a 17” (1280×1024, 5:4) open-frame touchscreen designed for kiosk, retail/POS, interactive displays and info-point. PCAP 10-touch technology with touch-through-glass (up to 6 mm) allows for behind-glass mounting in display cases or behind a protective panel, maintaining a precise tactile experience. The TN LED panel offers 350 cd/m² (315 cd/m² with touch) and 5 ms response time, and the edge-to-edge glass with anti-glare and anti-fingerprint is easy to clean. The open-frame construction integrates invisibly into furniture/totem, the front is IP65 (dust and splash resistant), and the HDMI / DisplayPort / VGA + USB (touch HID) connectivity makes installation plug-and-play. Perfect for 24/7 projects.
Why choose TF1734MC-B7X
- Touch through glass (6 mm): “behind-glass” installation in showcases or projects with front protection.
- PCAP 10-touch + palm rejection: fast response, natural gestures (tap, pinch, rotate) with finger, stylus or glove.
- Edge-to-edge 3 mm glass: anti-glare & anti-fingerprint, quick sanitization.
- IP65 on the front: dust and splash resistance – safe for public spaces.
- Easy integration: open-frame, VESA 100×100, optional OMK1-1 external brackets.
- Universal connectivity: HDMI / DisplayPort / VGA + USB (HID); essential cables in the box.
Recommended scenarios
- Retail & QSR: self-ordering, interactive catalogs, dynamic “behind-glass” menus.
- Showcases & interactive signage: campaigns behind the glass, experiences without direct access to the panel.
- Receptions & hospitality: check-in/out, wayfinding, self-service info counters.
- Public/education/museum sectors: ticketing, questionnaires, compact interactive installations.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite TF1734MC-B7X |
| Panel / Image | 17” (43 cm) • TN LED • 1280×1024 @60 Hz (5:4) • panel brightness 350 cd/m² (315 cd/m² with touch) • transmittance 90% • contrast 1000:1 (with touch) • response time 5 ms (BTB) • viewing angles 170°/160° (R/L 85°/85°, U/D 80°/80°) • 16.7 mil. colors (8-bit) • pixel pitch 0.264 mm • viewable area 338 × 270.5 mm (13.3 × 10.6”) • matte black frame |
| Touch (PCAP) | 10 points (HID on supported OS) • touch-through-glass up to 6 mm • palm rejection • methods: capacitive stylus, finger, glove (latex) • USB |
| Glass & Protection | Edge-to-edge, thickness 3 mm, anti-fingerprint, anti-glare • IP65 (front) |

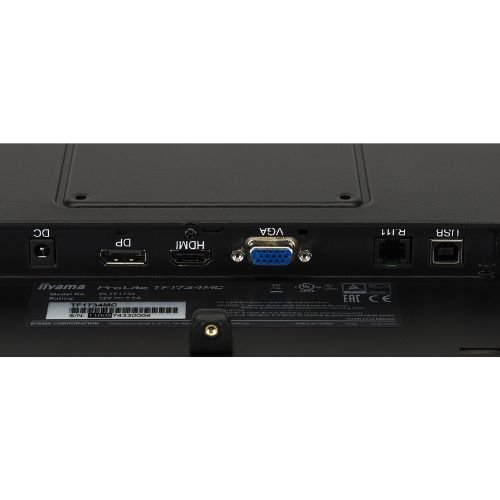

| Video inputs | HDMI ×1 • DisplayPort ×1 • VGA ×1 • HDCP: yes |
| OSD & Control | Buttons: Menu, Up/Brightness, Down/Contrast, Select, Power • OSD: Picture / Advanced / OSD / Option • Touch switch, OSD key-lock, Plug&Play DDC2B • languages: EN, DE, FR, ES, IT, CN, JP |

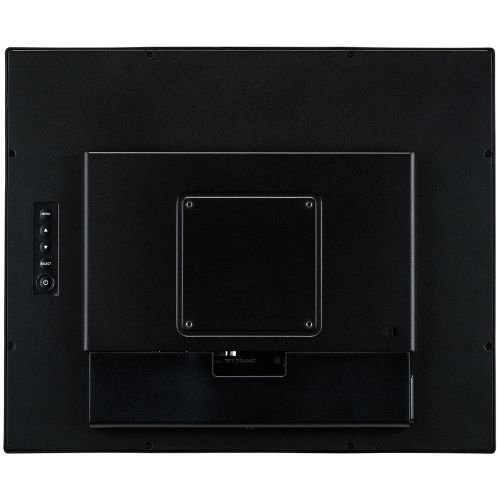

| Orientation & Montage | Landscape / Portrait / Face-up • VESA 100×100 mm • open-frame; optional external OMK1-1 brackets |
| Power & Consumption | External power supply, DC 12 V • consumption 13 W typical, 1.5 W stand-by, 0.3 W off |

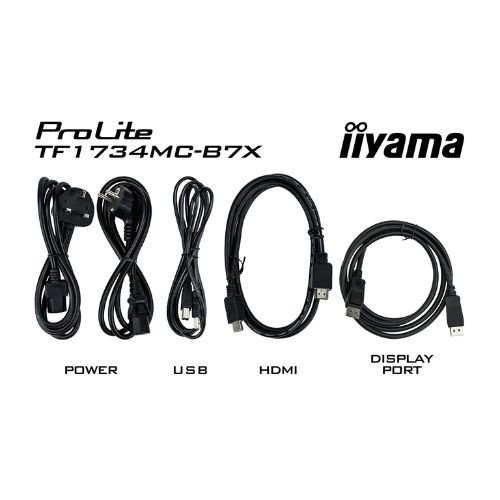

| Accessories in the package | Cables: power, USB, HDMI, DisplayPort • cable cover • Startup guide & Safety Guide |
| Dimensions & Weight | 369 × 307 × 47.5 mm (W × H × D) • box 455 × 387 × 145 mm • 3.6 kg net / 4.9 kg gross |
| Compliance & Energy | CE, EAC, RoHS, ErP, WEEE, cULus, REACH • Energy class E (EU 2017/1369) • REACH SVHC: Lead >0.1% |
| EAN code | 4948570118397 |
“Behind-glass without compromises: touch-through-glass 6 mm + IP65 front = safe, clean and easy-to-maintain solution for spaces public.”
Benefits at a glance
- Precise 10-point touch, including through glass.
- Public-friendly construction: IP65 front, 3 mm glass, anti-fingerprint.
- Clean integration: open-frame format, VESA 100×100, optional brackets.
- Universal connectivity: HDMI/DP/VGA + USB touch (HID).
- Low power consumption: ~13 W typical, ideal for 24/7 operation.
FAQ (FAQ)
1) Can I mount the screen behind a protective glass?
Yes, touch-through-glass works through glass up to 6 mm.
2) Is it suitable for continuous use in public?
Yes, the IP65 face, 3 mm glass, and open-frame design make it ideal for 24/7 projects.
3) What operating systems support touch?
Works as HID on Windows and Linux; for more details, see the driver file.
4) What video ports does it have?
HDMI, DisplayPort and VGA, plus USB for touch function.
5) How do I fix it to the totem/furniture?
With VESA 100×100 or with OMK1-1 external brackets (optional).
6) What is the typical consumption?
Approx. 13 W, with 1.5 W in standby.
7) Do the cables come in the box?
Yes: power, USB, HDMI and DisplayPort, plus cable management cover.
8) What advantage does the 5:4 format offer over 17”?
More height for industrial/POS UI (lists, tables, large buttons) – less scrolling.
