Omron Sentech MIPI Camera STC-S133MIP-NF

Omron Sentech MIPI Camera STC-S133MIP-NF

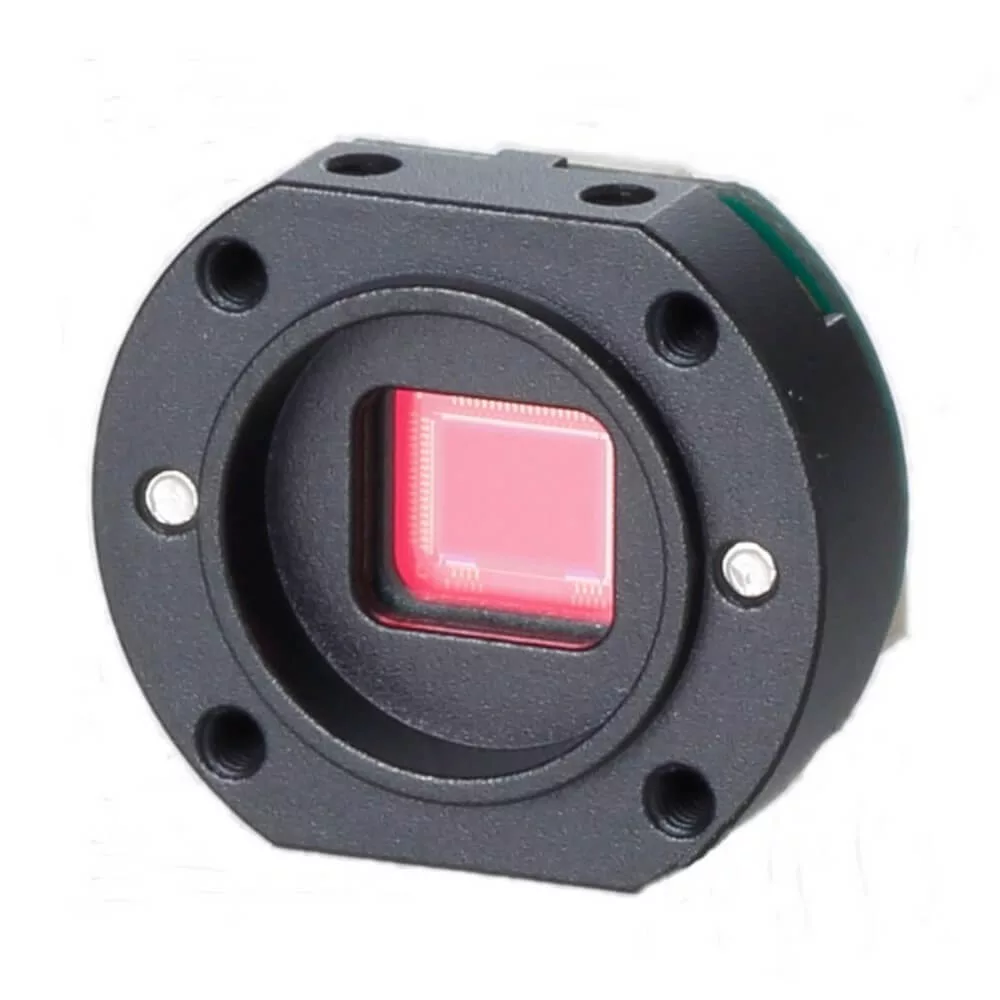

The Omron Sentech STC-S133MIP-NF MIPI Camera is a board-level camera designed for applications that require capturing clear, detailed images at high speed. This compact and versatile camera is ideal for various industrial and commercial applications due to its advanced features and flexible design.

Key Features:

• Resolution: 1.3 MP (1280×960)
• Frame Rate: 60 fps (frames per second)
• Sensor: 1/3.2″ ISX017
• Dimensions: 3.5 x 3.5 mm
• Interface: MIPI
• Type: Board-level camera
• Optical Filter: No Filter optical
• Lens: No lens included

Detailed description:

1. High performance: The STC-S133MIP-NF camera delivers high-quality images at a resolution of 1.3 MP, capturing clear and precise details.
2. High speed: With a frame rate of 60 fps, the camera is ideal for applications that require fast image capture, such as industrial monitoring and automation.
3. Advanced sensor: Equipped with the 1/3.2″ ISX017 sensor, the camera ensures excellent sensitivity and accurate color reproduction.
4. MIPI interface: The MIPI interface allows for a easy integration with various platforms and devices, providing flexibility in design and use.
5. Compact design: The camera’s small size (3.5 x 3.5 mm) and board-level form factor make this camera easy to integrate into compact and portable systems.
6. No optical filter and lens: The camera comes without optical filter and lens, allowing users to add their own filters and lenses according to specific application requirements.

Applications:

• Industrial automation
• Manufacturing process monitoring
• Robot vision systems
• Quality inspection
• Medical and imaging applications
• Research and development projects
