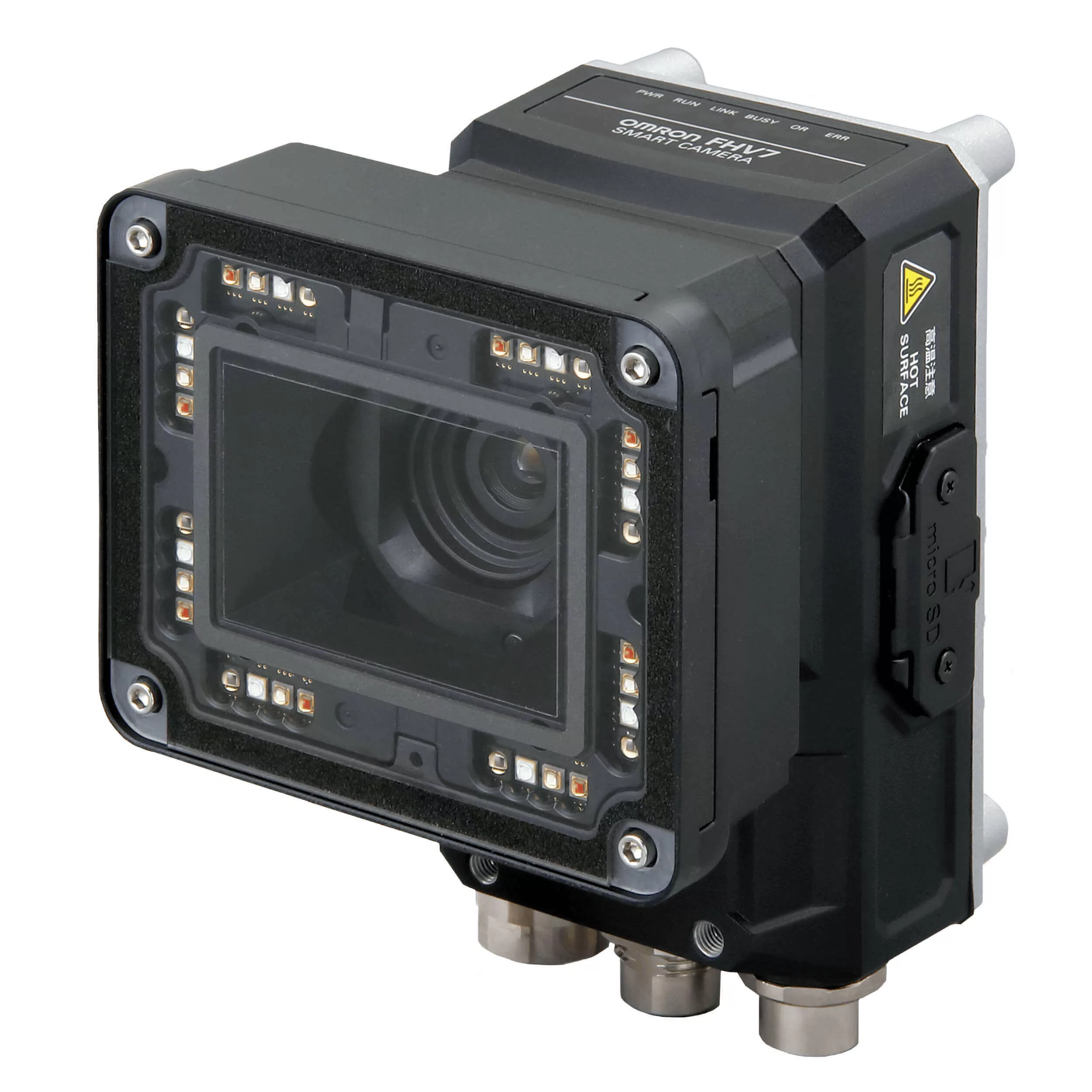

Omron FHV7 Smart Camera FHV7H-M004-S06-W
9.183,90 € incl. VAT
FH Vision Smart Camera, high performance, monochrome type, 0.4 Mpix resolution, 6.9 µm pixel size, 1/2.9″ chip size, global shutter, motorized lens module, focal length 6 mm, white illuminator, 24 VDC, IP67, pre-assembled
Omron FHV7 Smart Camera – Model FHV7H-M004-S06-W
Omron FHV7H-M004-S06-W is an industrial smart camera from the FHV7 range, designed for fast visual inspections and traceability applications.
The model features a 0.4 MP (640 × 480 px, global shutter) sensor and a standard 6 mm (S06, autofocus) lens, which provides a wide field of view, ideal for monitoring large products or for overall inspections.
The integrated white LED (White) illumination provides uniform contrast and stability, making it suitable for standard quality control applications, such as label verification, code reading and simple defect detection.
Thanks to EtherCAT, EtherNet/IP and PROFINET interfaces, FHV7H-M004-S06-W integrates easily into automated production lines, ensuring fast processing of up to 60 fps.
Technical specifications – Omron FHV7H-M004-S06-W
| Feature | Specifications |
|---|---|
| Model | FHV7H-M004-S06-W |
| Sensor resolution | 0.4 MP (640 × 480 pixels) |
| Shutter type | Global shutter |
| Optics | Standard 6 mm (S06, autofocus) |
| Integrated lighting | White LED |
| Supported codes | 1D (UPC/EAN, Code 39, Code 128) / 2D (QR, DataMatrix, PDF417, MicroQR) / DPM |
| Software features | OCR/OCV, basic visual inspection, code verification, defect detection simple |
| Communication | EtherCAT, EtherNet/IP, PROFINET, TCP/IP |
| Trigger | External digital input, encoder (optional) |
| Processing speed | Up to 60 fps |
| Operating temperature | 0 – 50 °C |
| Protection | IP67 (with accessories) optional) |
| Compatible Software | Sysmac Studio, FHV7 Configurator |
| Applications | Overall Inspections, Label and Code Verification, Industrial Traceability, Standard Quality Control |
👉 Omron FHV7H-M004-S06-W is the ideal choice for automotive, electronics, logistics and packaging, where stable contrast and wide field of view are essential for efficiency.
