FH 3D Robot Vision System

Omron’s 3D robot vision system is an advanced solution designed to improve and automate the sorting and picking processes of parts from hoppers. The FH-SMD camera is compact, lightweight and fast, offering flexible and efficient integration on robot arms to capture images and approach objects from various angles.

Key Features:

1. 3D Hopper Collection Camera:

• Precise Identification and Picking: The camera can identify and pick up randomly arranged parts in the hopper, placing them on a conveyor belt, in a parts store or on a tray.
• Compact and Lightweight Sensor: The weight of only 0.6 kg and the small dimensions of 110x97x53 mm make this camera the lightest and smallest on the market.

2. 3D Application Software:

• Advanced Measurement and Recognition: Captures a single image of the object using multi-pattern structured light, reducing measurement time.
• Active One Shot Technology: Acquisition and measurement are fast, in just 0.4 seconds, thanks to the built-in 2D and 3D structured light.

3. Robotic Arm Mounted Camera:

• Flexibility in Approach: Mounting on the robotic arm allows capturing images from difficult angles, ensuring complete emptying of the hopper.
• 0.2 mm Repeatability: Ensures consistent accuracy in sorting and picking operations.

4. Small Footprint Collection System:

• Compact Dimensions: The camera mounted on the robot arm reduces the size of the cell and allows for larger fields of view without fixed installation.
• 200 mm Working Distance: 400×300 mm field of view for precise image capture.

5. Easy Integration and Implementation:

• Partnership and Support: A single supplier for robot, vision, safety, I/O, etc., ensuring seamless integration and reducing design cycle and start-up time.
• Flexible Software: Software changes to the robot and camera instead of physical changes to the cell, allowing for maximum flexibility.

6. Compatibility:

• Support for Omron and Third-Party Robots: The system is compatible with a wide range of robots, ensuring flexibility in equipment selection.

Benefits:

• Reduce Errors and Increase Productivity: Automating part sorting and picking reduces errors and improves operational efficiency.
• Improve Safety: Eliminates the need for manual handling of heavy parts, reducing the risk of injury.
• Optimize Workspace: The compact dimensions of the chamber allow installation in confined spaces, optimizing the use of working space. work.

Applications:

• Manufacturing and Assembly Industries: Ideal for automating parts sorting and collecting in assembly processes.
• Warehousing and Logistics: Used for efficient inventory management and parts sorting in warehouses.

Package Contents:

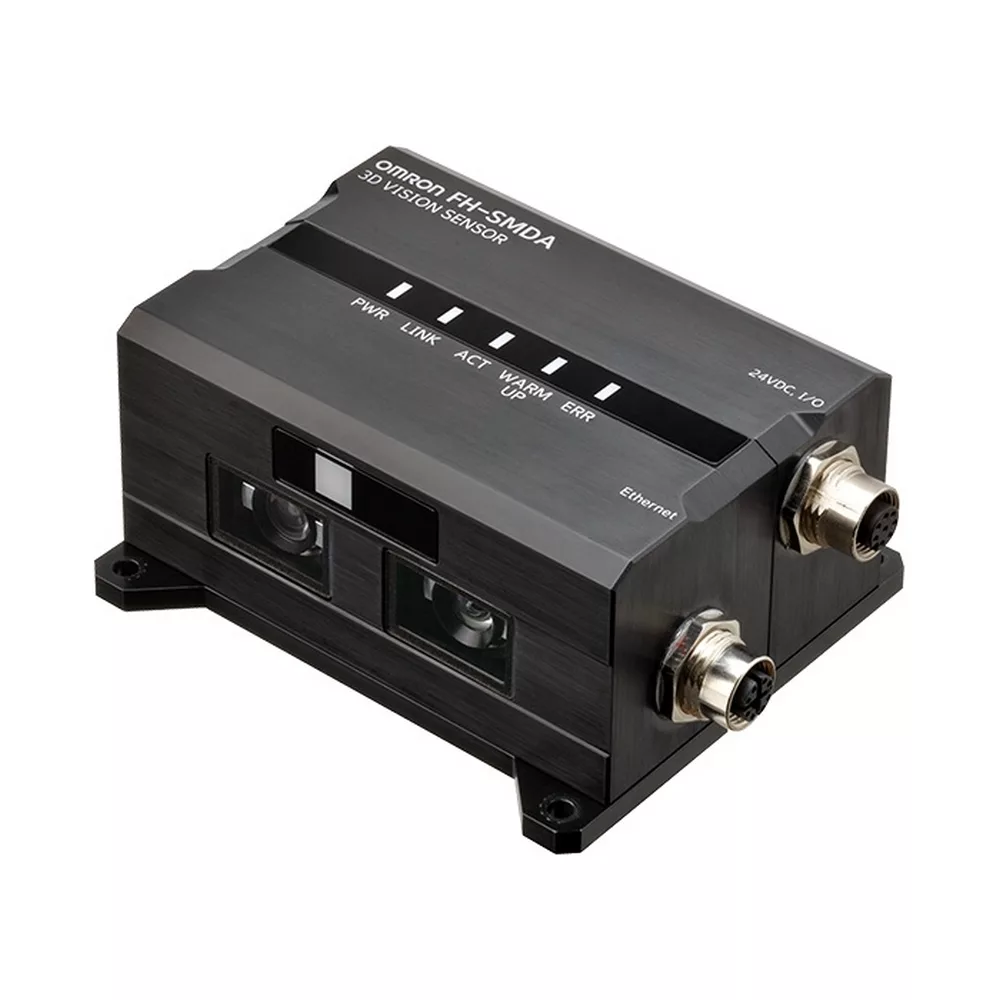

• FH-SMD 3D Hopper Collection Chamber
• 3D Application Software
• User Manual
• Accessories Mounting

Technical Specifications:

• Repeatability: 0.2 mm
• Placement Tolerance: +/- 2 mm
• Camera Dimensions: 110x97x53 mm
• Camera Weight: 0.6 kg
• Working Distance: 200 mm
• Field of View: 400×300 mm
• Acquisition Time: 0.4 seconds
