Newland N1 2D CMOS scanning module
301,29 € 83,49 € incl. VAT
Newland N1 2D CMOS scanning module with USB/TTL, white LED illumination and Red Dot aimer. Compact, efficient and ideal for embedded or mobile equipment.

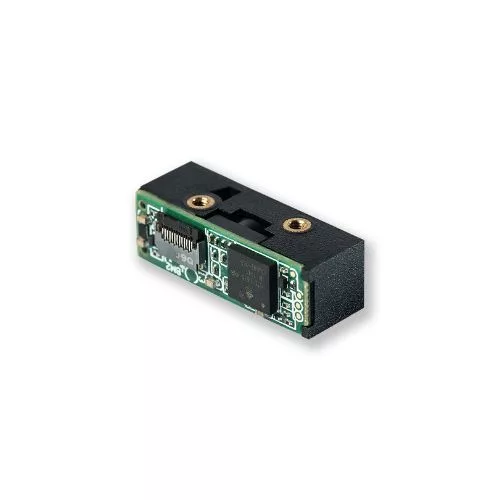

Newland N1 2D CMOS Scanning Module
The Newland N1 is an ultra-compact and lightweight 2D CMOS scanning engine, ideal for integration into embedded equipment, POS, kiosks and mobile devices. Featuring an all-in-one design with USB and TTL232 interfaces, this module offers a versatile and efficient solution for reading 1D and 2D barcodes, including directly from digital displays.
Equipped with 6th generation UIMG® technology, white LED illumination and a red dot aiming system, N1 easily decodes poor quality, laminated, warped or low contrast barcodes – even when displayed on dimly lit or foil-protected screens.
Key Features
-
Ultra-compact and lightweight design – ideal for miniaturized equipment
-
Screen reading – excellent performance even with screen protectors
-
Multiple interfaces – USB and TTL-232 for total flexibility
-
White illumination + Red Dot aimer – for visibility in all conditions
-
UIMG® Gen. Technology 6 – reliable decoding of damaged codes
Main technical specifications
-
Sensor: 2D CMOS
-
Illumination: White LED
-
Aimer: Red LED dot
-
Supported symbols: 1D and 2D codes (e.g. QR, DataMatrix, PDF417, EAN, Code 128 etc.)
-
Minimum resolution: up to 5 mil
-
Scanning distance: between 30 mm and 350 mm (depending on code)
-
Scan angle: standard ±60°
-
Interfaces: USB, TTL-232
-
Dimensions: extremely small (exact not fully declared)
-
Current: 91 mA operating / 0.3 mA standby
-
Operating temperature: -20°C to 60°C
-
Ambient brightness: up to 100,000 lux
Recommended applications
-
Mobile or fixed POS equipment
-
Self-checkout terminals and kiosks
-
Industrial on-board scanners
-
Integration into portable OEM terminals
-
Embedded systems in retail, transportation or manufacturing
