Monitor Touch 21.5″ PCAP+ 10 points, Full HD, IPS, Anti-Glare, Edge-to-Edge – iiyama T2252MSC-W2AG
The IIYAMA T2252MSC-W2AG is a 21.5” touchscreen monitor with 10-point DeepContrast PCAP+ technology, IPS panel and Edge-to-Edge design, ideal for retail, POS, interactive signage and creative spaces.

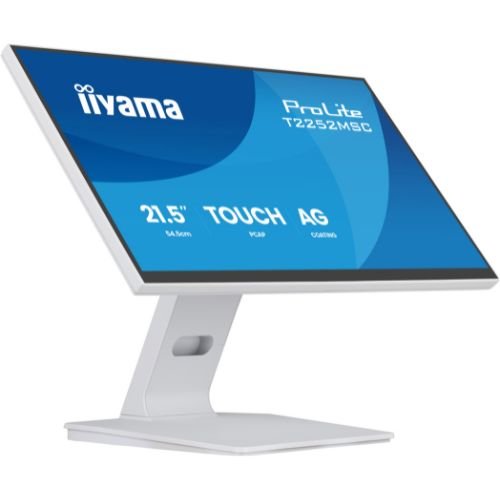

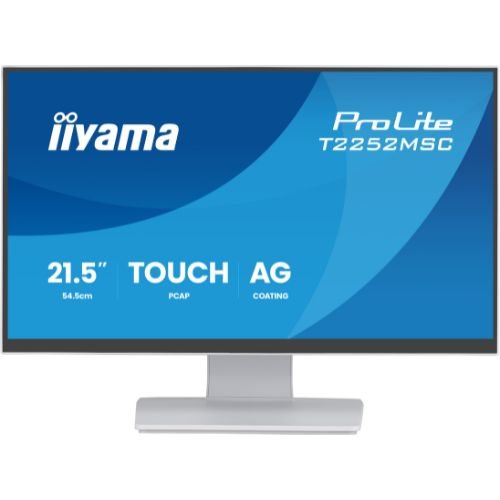

IIYAMA ProLite T2252MSC-W2AG – 21.5” Touch Monitor, DeepContrast-PCAP+ 10-touch, IPS, edge-to-edge glass, anti-glare & anti-fingerprint (white)
iiyama ProLite T2252MSC-W2AG is a 21.5” Full HD touch monitor with an IPS panel and DeepContrast-PCAP+ (optical bonding) technology, for fast and precise 10-point touch. The edge-to-edge glass has an anti-glare and anti-fingerprint coating, so content remains clear even in bright spaces, and cleaning is easy. The clean, white design with integrated cable management and USB 3.2 hub provides a tidy setup for retail, POS, hospitality, information points or creative spaces. The ergonomic +90° / –5° tilt stand allows you to position yourself for writing, signing or front-desk interactions.
Why choose T2252MSC-W2AG
- DeepContrast-PCAP+ (optical bonding): reduced reflections, better perceived contrast, instant response.
- IPS 21.5” Full HD: rich colors, 178°/178° viewing angles, clear image from any position.
- Anti-glare + anti-fingerprint: increased readability and easy-to-clean surface.
- Modern connectivity: HDMI + DisplayPort, USB 3.2 hub (x2), audio output, integrated speakers.
- Ergonomics & order: tilt 90°/5°, VESA 100×100, cable management, OSD joystick.
- Safe & reliable: Palm rejection, Blue Light Reducer, Flicker-Free, OSD lock functions.
Recommended scenarios
- Retail & POS: points of payment, forms, digital signature, customer feedback.
- Reception & hospitality: check-in, wayfinding, quick surveys, self-help.
- Healthcare/education/office: interactive counter, classroom, info desk, kiosk desktop.
- Creative & production: control panels, presets, timelines, touch “on the desk”.
Technical specifications
| Section | Specifications |
|---|---|
| Panel / Image | Diagonal 21.5” (54.6 cm) • IPS Technology • 1920×1080 (Full HD, 16:9) Resolution • Panel brightness 250 cd/m² (225 cd/m² with touch) • Transmittance 90% • Static contrast 1000:1 (with touch) • Response time 5 ms GTG • Viewing angles 178°/178° • Colors 16.7 mil. (8-bit) • Viewable area 478.6 × 260 mm • Pixel pitch 0.249 mm • Frame color white, matte • Design Edge-to-Edge glass. |
| Touch | DeepContrast-PCAP+ (PCAP with optical bonding) • 10 points (HID on supported OS) • Methods: stylus, finger, latex glove (up to +2 mm) • Palm rejection: Yes • USB touch interface. |
| Inputs / Outputs | HDMI ×1 • DisplayPort ×1 • Audio out (3.5 mm) ×1 • 2×1 W built-in speakers • USB Hub ×2 (USB 3.2 Gen1, 5 Gbps, 5V/900 mA) • HDCP: Yes. |
| OSD Functions & Comfort | Joystick OSD (right/menu/enter, left/input/exit, up/eco, down, power) • Blue Light Reducer, Flicker-Free • i-Style/Adv. Contrast, OD, X-Res • OSD key lock • Kensington-lock ready • Plug&Play DDC2B. |
| Ergonomics & Montage | Inclination: +90° / –5° • VESA 100×100 mm • Landscape / face-up • Cable management system. |
| Power & Consumption | Internal power supply • AC 100–240 V, 50/60 Hz • Consumption 13 W typical, 0.5 W stand-by, 0.3 W off. |
| Dimensions & Weight | 493.5 × 361.5 × 239.5 mm (W×H×D) • Box 560 × 350 × 150 mm • Net weight 4.5 kg, gross weight 6 kg. |
| Package contents | Cables: power (1.8 m), USB (1.5 m), HDMI (1.5 m) • cable cover • screwdriver • startup guide & safety guide. |
| Conformity / Miscellaneous | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA, cTUVus • Energy class D (EU 2017/1369) • REACH SVHC: Lead >0.1% • EAN 4948570127191. |
Benefits at a glance
- Premium 10-point touch with optical bonding – natural response, minimal parallax.
- Always clean screen: anti-glare + anti-fingerprint for excellent visibility.
- Connect everything you need: HDMI, DP and built-in USB 3.2 hub.
- Ready to work on your desk: tilt wide +90° – perfect for signatures, surveys, POS.
- Safety & visual comfort: Flicker-Free, Blue Light Reducer, OSD/port lock.
Frequently Asked Questions (FAQ)
1) Does the touch work with gloves?
Yes, it supports latex glove (~2 mm), stylus and finger.
2) Can it reduce reflections?
Yes, optical bonding + anti-glare reduce reflections and increase perceived contrast.
3) Does it have an integrated USB hub?
Yes, 2 USB 3.2 Gen1 ports for peripherals or sticks.
4) Is it VESA mountable?
Yes, VESA 100×100 mm – wall, arm, stand.
5) Can I lock the menu in public spaces?
Yes, it has OSD key lock and Kensington-lock support.
6) What sound does it offer?
Integrated 2×1 W speakers for notifications, explanatory video, basic audio signaling.
7) What viewing angles does it have?
178°/178° thanks to the IPS panel – consistent colors and clarity.
8) What is the typical consumption?
Only ~13 W, energy efficient for intensive daily use.
