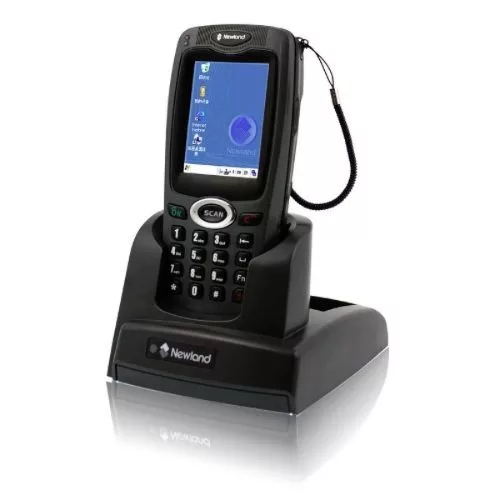

Mobile Terminal PT98 Newland PT983IIRW

PT98 Mobile Terminal Newland PT983IIRW

Newland PT98 (PT983IIRW) is a compact and durable mobile terminal, designed for efficient data collection in difficult environments such as warehouses, logistics, deliveries or mobile accounting. Equipped with Windows Embedded CE 6.0 operating system, Marvell XScale PXA270 processor at 520 MHz and multiple scanning options (1D Laser, 1D CCD, 2D Imager, IR), PT98 is a reliable tool for digitizing and automating workflows,

The ergonomic and robust design offers IP54 protection and resistance to drops of up to 1.2 meters onto concrete, making it ideal for long-term intensive use in industrial and commercial environments,

Key Features

• Scanning versatility: supports 1D and 2D codes, via Laser, CCD and Imager

• Wi-Fi connectivity (optional): for fast data transfer

• Windows CE 6.0 operating system: compatible with applications developed in Visual Studio

• 2.83″ TFT touch display: with 320 x 240 pixel resolution

• Increased autonomy: 2400 mAh battery for full-shift operation

• Robust construction: IP54 protection, withstands 1.2m drops

Technical specifications

• Model: PT983IIRW

• CPU: Marvell XScale PXA270, 520 MHz

• Memory: 128MB SDRAM / 128MB Flash ROM

• Operating system: Windows Embedded CE 6.0

• Display: TFT 2.83″, 320 x 240 px, touch

• Scanner: Laser 1D / CCD 1D / 2D Imager / IR Reader

• Scan speed: 100 scans/sec

• Battery: 2400 mAh

• Interfaces: RS-232, USB

• Card slot: microSD

• Protection: IP54, 1.2 m drop

• Operating temperature: -10°C to +50°C

Recommended applications

• Logistics and deliveries – mobile scanning for traceability

• Stock management – ​​real-time verification and updating

• Retail – inventory and order taking

• Production – process monitoring and product identification

• Field services – inspections, collections, reporting
