Matrox Clarity UHD Zebra CLA4GHDSA Multi-Format Video Card
3.043,15 € incl. VAT
Zebra Clarity UHD CLA4GHDSA – PCIe 2.0 x8 video capture card, 4GB. Supports HDMI, DisplayPort, SDI and analog. Up to 8 HD or 2 UHD streams.

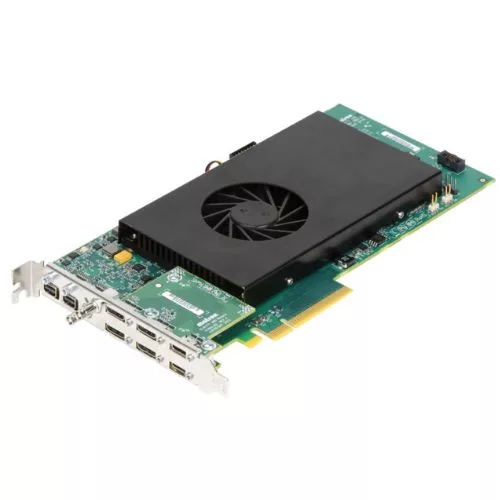

Zebra Clarity UHD CLA4GHDSA – PCIe 2.0 x8, 4GB Multi-Format Video Capture Card
The Zebra Clarity UHD CLA4GHDSA, powered by Matrox technology, is a professional multi-format video capture card designed for industrial, medical, surveillance, and simulation applications. With a PCIe 2.0 x8 interface and 4 GB DDR3 SDRAM, this card supports video capture from analog SD to UHD 4K (2160p60) formats, providing stable performance and maximum flexibility.
Compatible with multiple connectivity standards – HDMI, DisplayPort 1.2, SDI (12G) and analog inputs (RGB, Y/C, CVBS, DVI) – Clarity UHD enables rapid integration of video sources into a single system.
✅ Key Features:
-
Multi-format: Supports analog SD, HD and digital UHD 4K.
-
Simultaneous Streams: Capture up to 8 HD (1080p60) streams or 2 UHD (2160p60) streams.
-
Versatile Connectivity: HDMI, DisplayPort, 12G SDI and analog via DVI adapter.
-
Integrated Pre-Processing: Scaling, hardware de-interlacing and color conversion.
-
Dedicated Memory: 4 GB DDR3 SDRAM for buffering and fast processing.
-
Software Compatibility: Full support for Aurora Imaging Library (MIL) for video application development.
-
Supported Operating System: Windows 7/10 (64-bit) and Linux (64-bit).
⚙️ Specifications technical:
| Specification | Details |
|---|---|
| Model | Zebra Clarity UHD CLA4GHDSA |
| Host Interface | PCIe 2.0 x8 |
| Memory | 4 GB DDR3 SDRAM |
| Inputs video | HDMI, DisplayPort 1.2, SDI (12G), Analog (RGB, Y/C, CVBS, DVI) |
| Maximum streams | 8x HD (1080p60) or 2x UHD (2160p60) |
| Bandwidth | 4 GB/s combined |
| Dimensions | 21.3 × 1.87 × 11.5 cm |
| Power Consumption | 45 W typical |
| Operating Temperature | 0°C – 55°C |
| Humidity | Up to 95% (non-condensing) |
🔧 Recommended applications:
-
Medical industry: capture and analysis of video images for diagnosis.
-
Professional video surveillance: multi-camera, UHD.
-
Simulation & training: real-time capture for training.
-
Automation and visual inspection: quality control and traceability.
