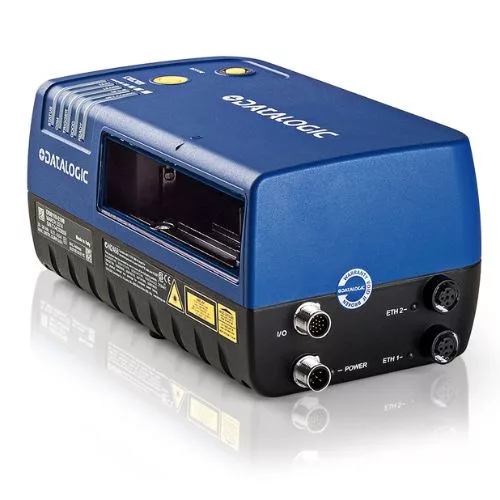

Long-range scanner Datalogic DS8110 932500005
7.032,52 € 6.329,27 € incl. VAT
Datalogic DS8110 932500005 – industrial scanner with long range and low resolution, IP65, Ethernet and serial, ideal for logistics and large codes.
Datalogic DS8110 932500005 Low Resolution Long Range Scanner
Datalogic DS8110 932500005 (model DS8110-2300 Low Resolution) is an industrial laser scanner designed for applications where large and visible barcodes from extended distances must be read.
This model uses DST™ (Digital Signal Technology) and ASTRA™ G3, which gives it stability and consistent performance even in difficult conditions. The ACR™ G5 algorithm and the PackTrack™ G2 optimizes accuracy in high-speed sorting processes, even when codes are worn or in variable positions.
The solid aluminum alloy housing and IP65 protection make the DS8110-2300 a reliable solution for demanding industrial environments. Configuration is simple thanks to e-Genius (browser-based configuration tool), without the need for specialized software.
Technical specifications Datalogic DS8110 932500005
| Feature | Details |
|---|---|
| Product code | 932500005 |
| Model | DS8110-2300 Low Resolution |
| Type scanner | Industrial fixed, long range |
| Technology | DST™, ASTRA™ G3, ACR™ G5, PackTrack™ G2 |
| Reading distance | 500 – 1900 mm |
| Resolution | 0.50 mm (20 mils) – for large codes |
| Scanning speed | up to 1000 scans/second |
| Beam type | Linear |
| Multilabel | up to 10 codes in a single scan |
| Connectivity | 2x Ethernet TCP/IP, RS232/RS422, auxiliary port RS232 |
| Fieldbus | EtherNet/IP, Profinet-IO, Profibus-DP |
| Protection | IP65 |
| Dimensions | 216 × 96 × 127 mm |
| Weight | 2.0 kg |
| Power | 20–30 VDC, 20W power consumption |
| Applications | Baggage sorting, logistics, long-range reading of large codes |
👉 Datalogic DS8110 932500005 is the optimal choice for applications where barcodes are large in size and reading from a distance is essential, such as in distribution centers, airports and industrial logistics.
