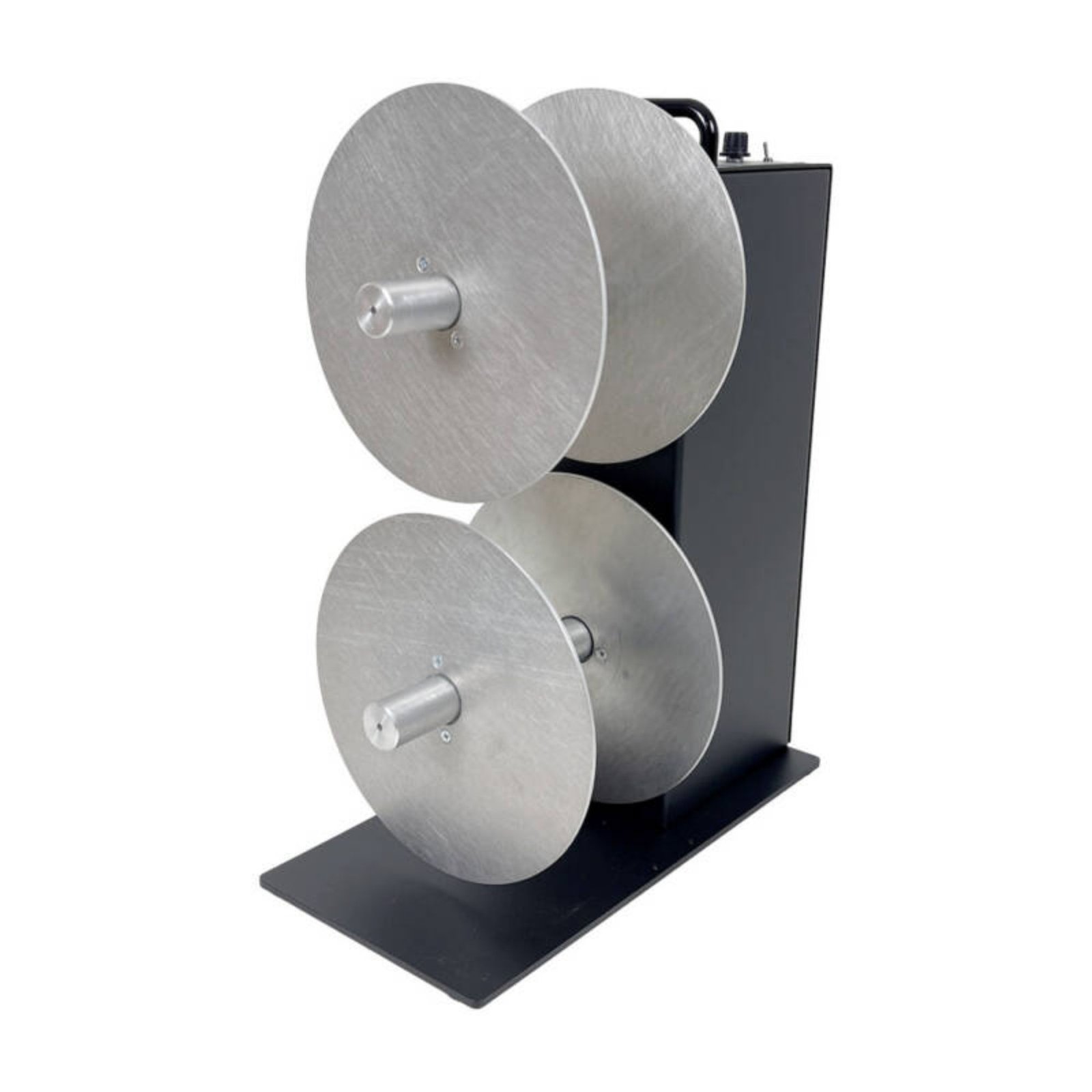

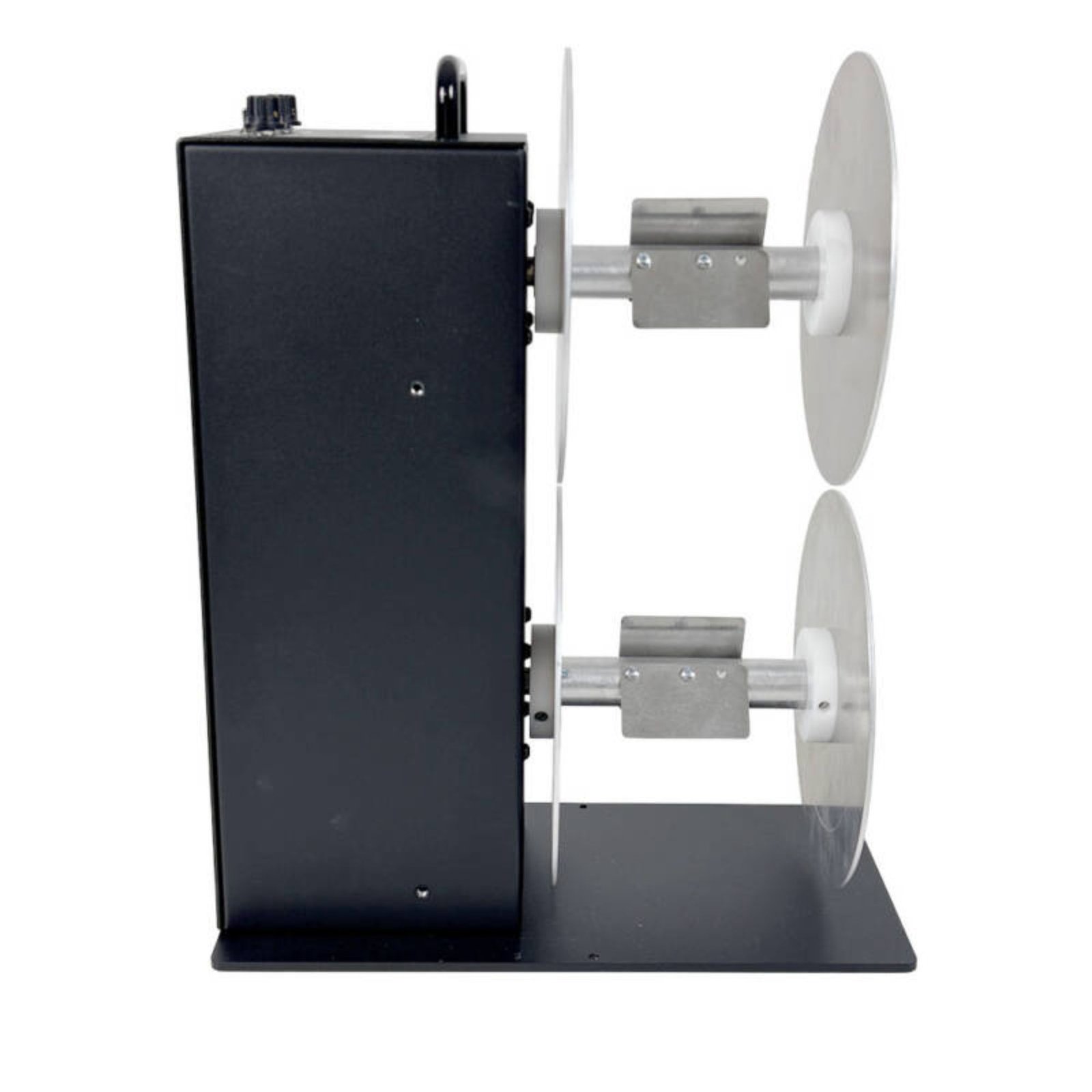

Labelmate LMR016/LMX461/LMX470 TWIN-CAT-2-ST dual spindle label rewinder with inspection (INSP-1)
MSRP: 1395 € ex. VAT
1.687,95 € incl. VAT
Labelmate TWIN-CAT-2-ST-INSP-1 dual spindle station (LMR016/LMX461/LMX470) with standard 76 mm media and INSP-1 inspection module. Independent control, speed 125 cm/s, 2×Ø220 mm, 2×5 kg, 15VDC.
Request a quote for availability
Labelmate LMR016/LMX461/LMX470 TWIN-CAT-2-ST dual spindle label rewinder with inspection (INSP-1)
When you need to rewind and visually inspect the tape at the same time, this configuration is the “sweet spot”: Labelmate TWIN-CAT-2 (dual spindle station with 2 motors) + Standard Core Holders + INSP-1 inspection option. In short: you prepare your rolls exactly how you want them, with correct tension, controlled direction and an extra guide/inspection on the side.
- Dual spindle (2 axes) + 2 motors – each axis is controlled independently.
- Bi-directional Rewind & Unwind – ideal for core changing, inside/outside wound reversal, roll reconditioning.
- Control Panel : direction + speed/torque for each axis, separately.
- INSP-1 option – 2-roller bracket mounted on the side (useful also for matrix removal in specific scenarios).
What this setup includes (and why it matters)
- LMR016 – TWIN-CAT-2 station (base unit).
- LMX461 – Standard Core Holders (standard spindle with valves and flanges), for material widths up to 155 mm .
- LMX470 – INSP-1 : 2-roller bracket, mounted on the side of the station, for guidance/inspection.
Technical specifications
| Characteristic | Value |
|---|---|
| Brandi | Labelmate |
| Model / Series | TWIN-CAT-2-ST-INSP-1 (Dual Spindle Station) |
| SKU / P/N | LMR016/LMX461/LMX470 |
| Configuration | Dual spindle + Standard Core Holders + INSP-1 Inspection option |
| Number of axles | 2 (dual spindle) |
| Direction | Bi-directional (Unwind & Rewind) |
| Control | Direction + speed/torque for each axis (independent) |
| Maximum material width (with Standard Core Holders) | 155mm |
| Maximum speed | up to 125 cm/sec (at the beginning of the roll on 76 mm core) |
| Maximum roll diameter | 2 × 220mm |
| Maximum roll weight | 2 × 5 kg |
| Dimensions (W × D × H) | 180 × 370 × 470mm |
| feeding | Input 230V / 50Hz, Output 15VDC – 4.6A |
| Guarantee | 2 years (1 year for power supply) |
