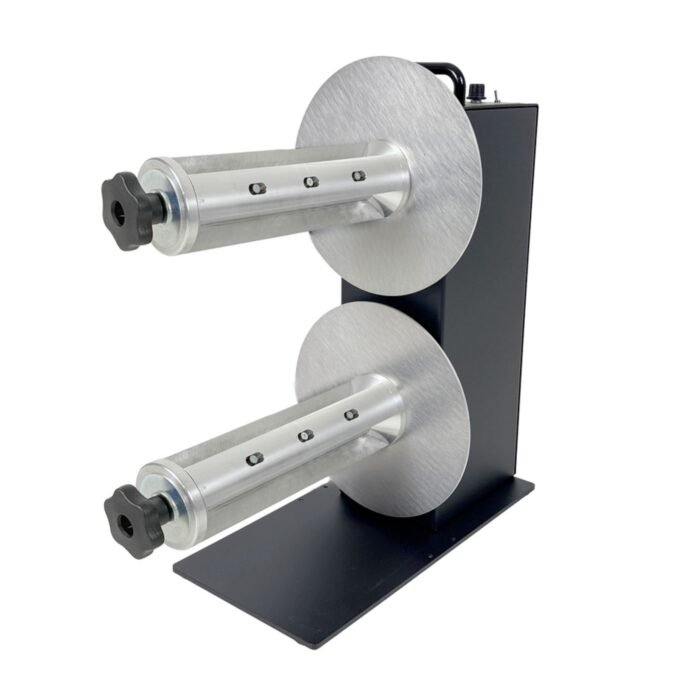

Label Rewinder TWIN-CAT-2 Quick-Chuck 76 mm (C-76270) dual spindle Labelmate LMR016/LMX466
MSRP: 2015 € ex. VAT
2.438,15 € incl. VAT
Labelmate TWIN-CAT-2 dual spindle station with 2 Quick-Chuck C-76270 (LMR016/LMX466) for 76 mm core and width up to 270 mm. Independent torque/speed + direction control, 2×Ø220 mm, 2×5 kg, speed up to 125 cm/s.
Request a quote for availability
Label Rewinder TWIN-CAT-2 Quick-Chuck 76 mm (C-76270) dual spindle Labelmate LMR016/LMX466
If you work with very wide labels and need a station that lets you change rolls quickly, without any fuss, the TWIN-CAT-2/C-76270 configuration is just what you need. You get a dual spindle station (two axes, two motors) equipped with 2 Quick-Chucks C-76270 for 76 mm cores , designed to work with material up to 270 mm wide .
- 2 axes + 2 motors – each axis is controlled independently (rewind & unwind).
- Quick-Chuck C-76270 – quick clamping on 76 mm core, ideal for frequent roll changes.
- Wide setup – supports material up to 270 mm wide.
- Fine control – direction + speed/torque separately on each axis (correct tension, uniform rollers).
- Perfect for : core change, inside/outside wound reversal, roll reconditioning, preparation for application/packaging.
What does the configuration include (LMR016/LMX466)
- LMR016 – TWIN-CAT-2 station (base unit, dual spindle).
- LMX466 – 2 × Quick-Chuck C-76270 (76 mm core, width up to 270 mm).
Technical specifications
| Characteristic | Value |
|---|---|
| Brandi | Labelmate |
| Model / Series | TWIN-CAT-2/C-76270 (Dual Spindle Station) |
| SKU / P/N | LMR016/LMX466 |
| Configuration | Dual spindle + 2 × Quick-Chuck C-76270 |
| Compatible core(s) | 76mm (3″) |
| Maximum material width (C-76270) | up to 270 mm |
| Direction | Bi-directional (rewind & unwind) |
| Control | Direction + speed/torque for each axis (independent) |
| Maximum speed | up to 125 cm/sec (under nominal conditions) |
| Maximum roll diameter | 2 × 220mm |
| Maximum roll weight | 2 × 5 kg |
| Dimensions (W × D × H) | 180 × 370 × 470mm |
| feeding | Input 230V / 50Hz, Output 15VDC – 4.6A |
| Guarantee | 2 years (1 year for power supply) |
