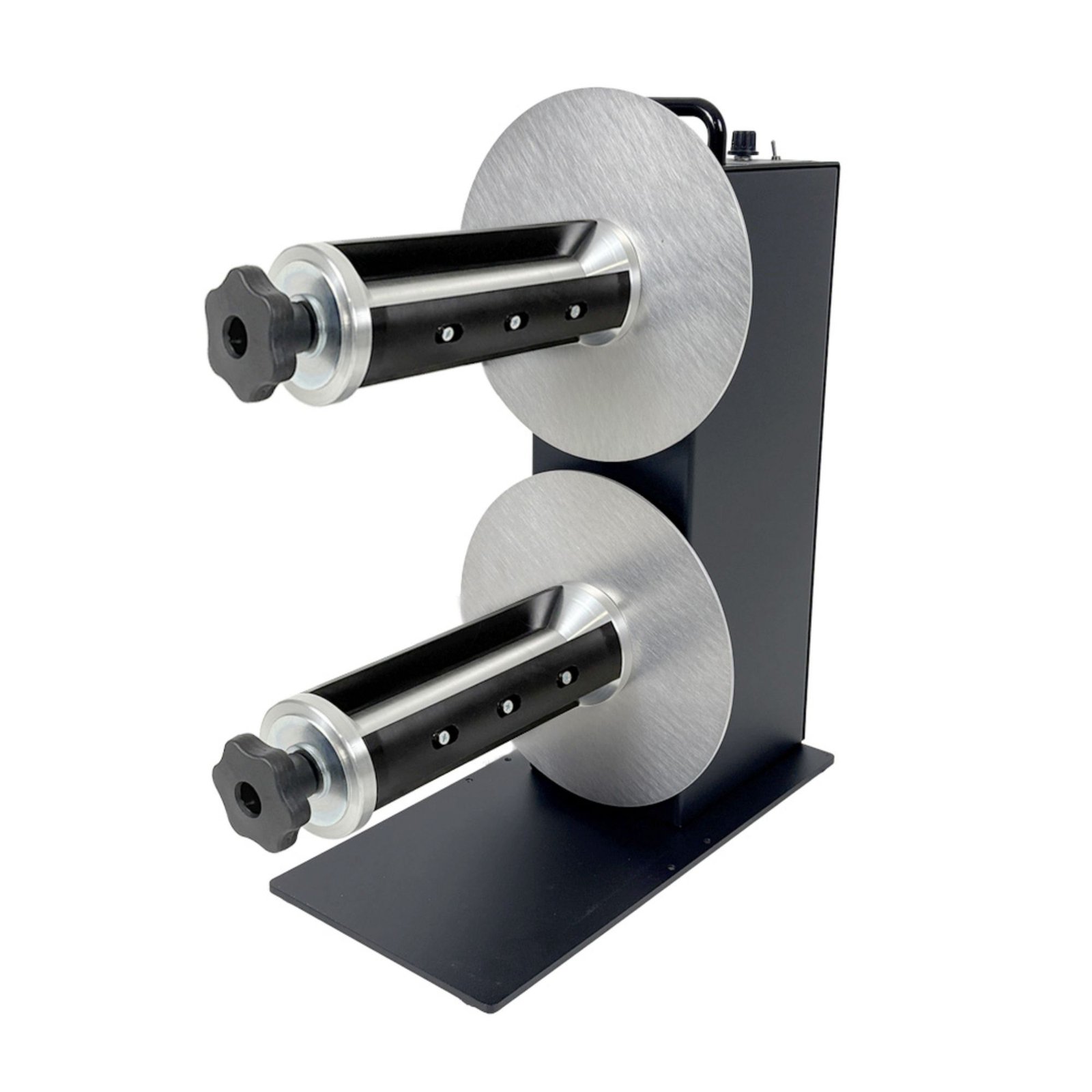

Label Rewinder TWIN-CAT-2 Quick-Chuck 76 mm (C-76220) dual spindle Labelmate LMR016/LMX465
MSRP: 1835 € ex. VAT
2.220,35 € incl. VAT
Labelmate TWIN-CAT-2 dual spindle station with 2 Quick-Chuck C-76220 (LMR016/LMX465) for 76 mm core and width up to 220 mm. Independent torque/speed + direction control, 2×Ø220 mm, 2×5 kg, speed up to 125 cm/s.
Request a quote for availability
Label Rewinder TWIN-CAT-2 Quick-Chuck 76 mm (C-76220) dual spindle Labelmate LMR016/LMX465
If you work with wider labels and want fast roll changes (no wasted time), the TWIN-CAT-2/C-76220 configuration is one of the most efficient. You get a dual spindle station (two axes, two motors) equipped with 2 Quick-Chucks C-76220 for 76 mm cores , designed to work with material up to 220 mm wide .
- 2 axes + 2 motors – each axis is controlled independently (rewind & unwind).
- Quick-Chuck C-76220 – quick clamping for 76 mm core, ideal when changing rolls often.
- Wide setup – supports material up to 220 mm wide (compared to the 170 mm version).
- Fine control – direction + speed/torque separately on each axis.
- Perfect for : core replacement, inside/outside wound reversal, roll reconditioning, preparation for application/packaging.
What does the configuration include (LMR016/LMX465)
- LMR016 – TWIN-CAT-2 station (base unit, dual spindle).
- LMX465 – 2 × Quick-Chuck C-76220 (76 mm core, width up to 220 mm).
Technical specifications
| Characteristic | Value |
|---|---|
| Brandi | Labelmate |
| Model / Series | TWIN-CAT-2/C-76220 (Dual Spindle Station) |
| SKU / P/N | LMR016/LMX465 |
| Configuration | Dual spindle + 2 × Quick-Chuck C-76220 |
| Compatible core(s) | 76mm (3″) |
| Maximum material width (C-76220) | up to 220 mm |
| Direction | Bi-directional (rewind & unwind) |
| Control | Direction + speed/torque for each axis (independent) |
| Maximum speed | up to 125 cm/sec (under nominal conditions) |
| Maximum roll diameter | 2 × 220mm |
| Maximum roll weight | 2 × 5 kg |
| Dimensions (W × D × H) | 180 × 370 × 470mm |
| feeding | Input 230V / 50Hz, Output 15VDC – 4.6A |
| Guarantee | 2 years (1 year for power supply) |
What do you get in the package?
- Dual spindle station Labelmate TWIN-CAT-2 (LMR016)
- 2 × Quick-Chuck C-76220 (LMX465) for 76 mm core and width up to 220 mm
- Power supply
- Documentation / instructions
