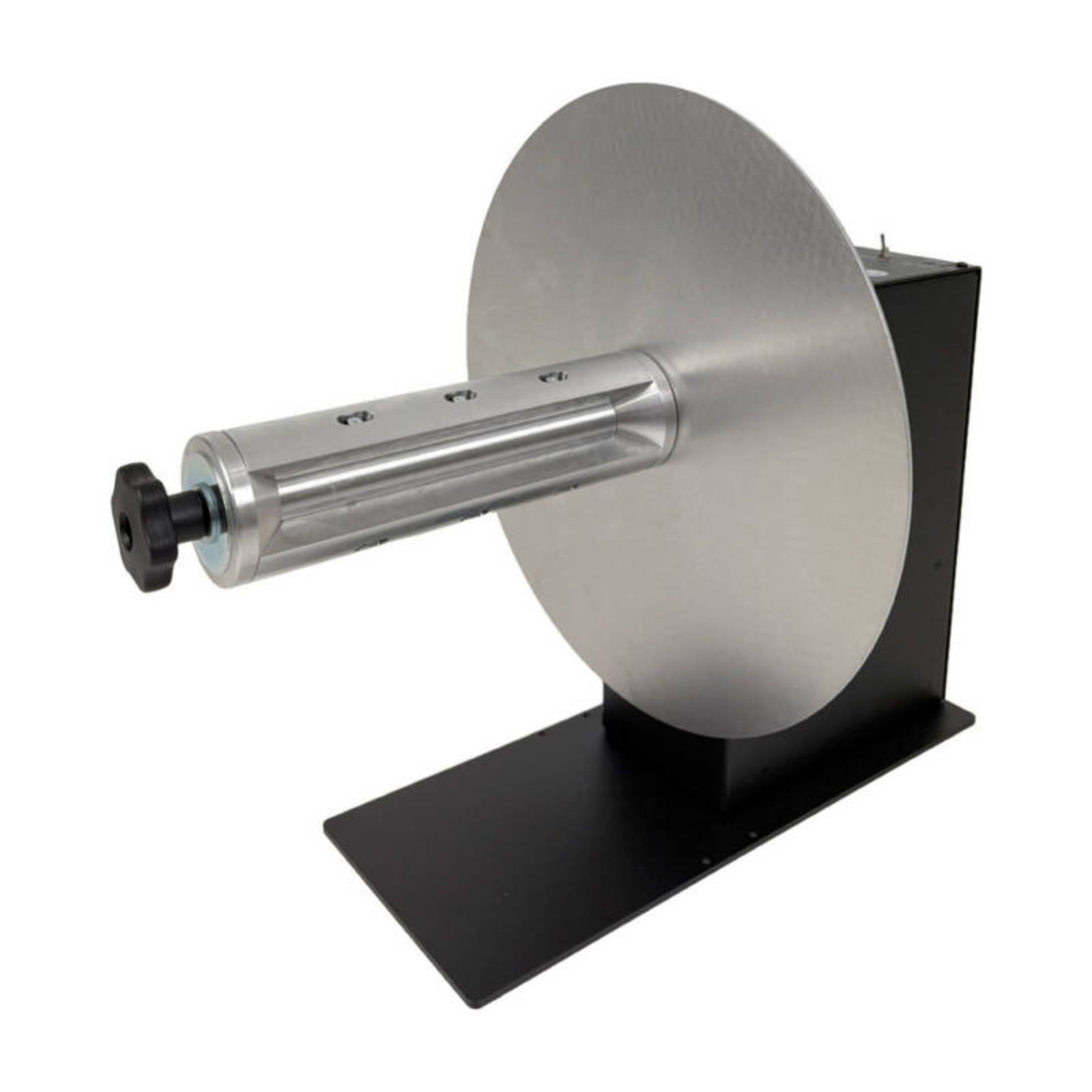

Label Rewinder CAT-40G/V2 core 76 mm Labelmate LMR009/LMX485/V2
MSRP: 1695 € ex. VAT
2.050,95 € incl. VAT
Labelmate CAT-40G/V2 (LMR009/LMX485/V2) label rewinder with Quick-Chuck C-76270 for 76 mm core. Supports rolls Ø 400 mm and 14 kg, max. width 270 mm, speed up to 38 cm/s, torque/speed + direction control.
Request a quote for availability
Label Rewinder CAT-40G/V2 core 76 mm Labelmate LMR009/LMX485/V2
Do you have very wide labels and heavy rolls? Then you need a rewinder with serious torque , not just “a motor that spins”. The Labelmate CAT-40G/V2 is the heavy-duty version with a gear motor (high torque), and the LMR009/LMX485/V2 configuration includes the Quick-Chuck C-76270 – quick clamping for 76 mm cores and working with material up to 270 mm wide .
Why is the C-76270 configuration worth it?
- Quick-Chuck – change rolls quickly, without wasted time (excellent in production).
- Wide setup – supports labels up to 270 mm wide.
- High torque – geared motor for heavy rollers and more “difficult” materials.
- Large capacity – rolls up to Ø 400 mm and 14 kg .
- Full control – torque/speed + direction adjustment from the control panel (internal/external winding).
Technical specifications
| Characteristic | Value |
|---|---|
| Brandi | Labelmate |
| Series / Model | CAT-40G/V2 |
| SKU / P/N | LMR009/LMX485/V2 |
| Chuck configuration | Quick-Chuck C-76270 (76 mm core, 270 mm width) |
| Core | 76mm (3″) |
| Maximum label width | 270mm |
| Maximum roll diameter | 400mm |
| Maximum roll weight | 14 kg |
| Maximum speed | up to 38 cm/sec (at the beginning of the roll on 76 mm core) |
| Control | Torque/speed and direction settings from Control Panel (dual torque ranges) |
| Dimensions (W × D × H) | 400 × 450 × 460mm |
| Power supply | Input 100–240VAC, 50Hz / Output 15VDC, 4.33A |
| Guarantee | 2 years (1 year for power supply) |
What do you get in the package?
- Rewinder Labelmate CAT-40G/V2 (base LMR009/V2)
- Quick-Chuck C-76270 for 76 mm core and max. width 270 mm (LMX485)
- Power supply
- Documentation / instructions
