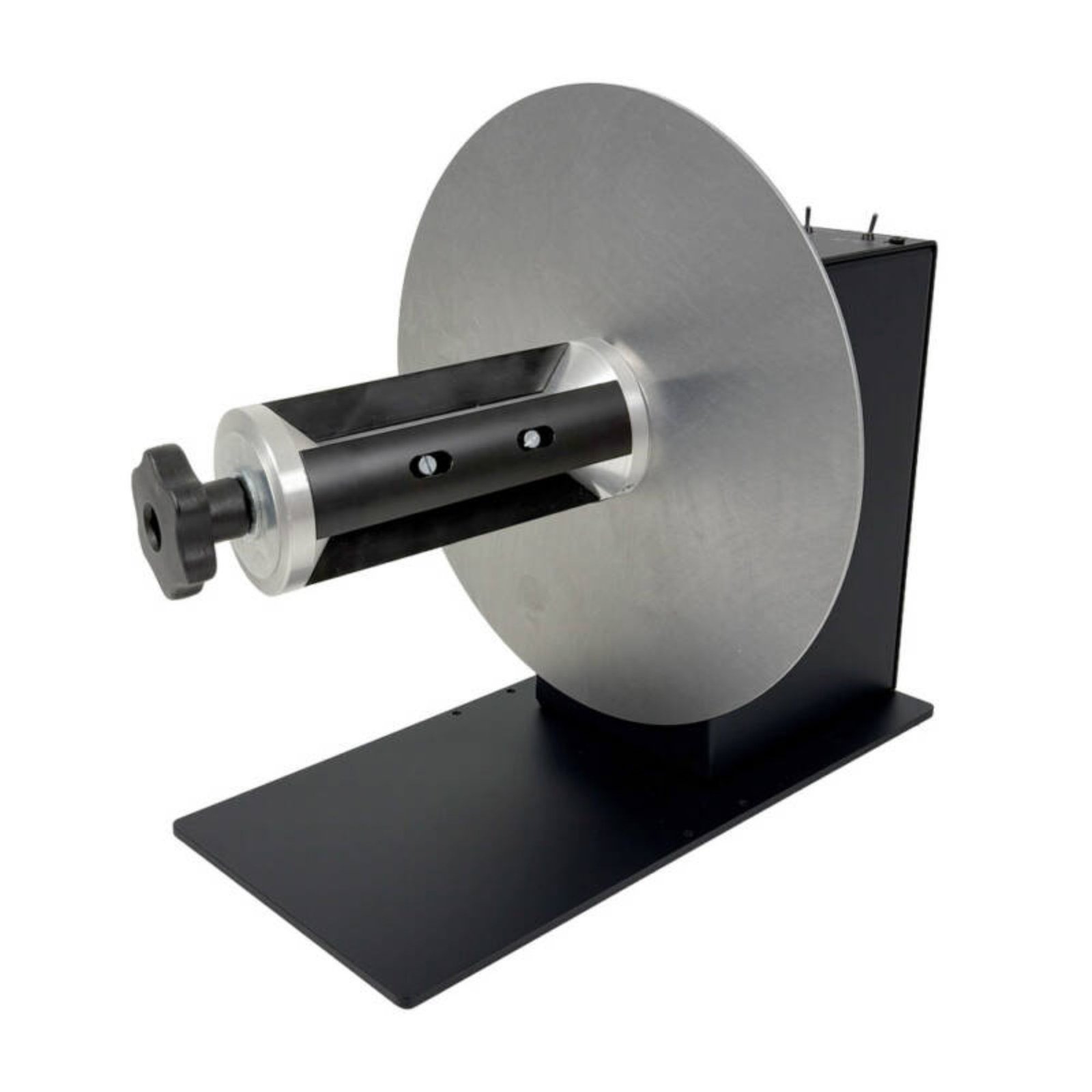

Label Rewinder CAT-3-CHUCK/R-16 core 76 mm Labelmate LMR006/LMX457
MSRP: 1065 € ex. VAT
1.288,65 € incl. VAT
Labelmate CAT-3-CHUCK/R-16 (LMR006/LMX457) label rewinder with Quick-Chuck for 76 mm core. Max. width 170 mm, roll Ø 300 mm, max. 10 kg, speed up to 125 cm/s, torque/speed + direction control, 15VDC.
Request a quote for availability
Label Rewinder CAT-3-CHUCK/R-16 core 76 mm Labelmate LMR006/LMX457
For high throughput, where you change rolls frequently and want to “go razor sharp”, the Labelmate CAT-3-CHUCK is one of the fastest rewinding systems. The LMR006/LMX457 variant is the CAT-3-CHUCK/R-16 configuration, based on the Quick-Chuck mechanism (quick core clamping), plus the R-16 kit/variant for specific production rewinding setups.
What makes it “production”, not just office?
- Quick-Chuck – fast core and roll loading/unloading (less downtime).
- Full control from the front panel: torque/speed + direction .
- High speed – up to 125 cm/sec (under nominal conditions).
- Industrial capacity – rolls up to Ø 300 mm and max. 10 kg .
- Wide labels – supports up to 170 mm wide.
- Silent heavy-duty motor – designed for constant work.
Core compatibility
- Standard : 76 mm (3″) for CHUCK models.
- On request : 38 / 40 / 44 / 70 mm (depending on configuration).
Technical specifications
| Characteristic | Value |
|---|---|
| Brandi | Labelmate |
| Series / Model | CAT-3-CHUCK/R-16 |
| SKU / P/N | LMR006/LMX457 |
| Clamping type | Quick-Chuck (quick core clamping) |
| Standard core(s) | 76mm (3″) |
| Maximum label width | 170mm |
| Maximum roll diameter | 300mm |
| Maximum roll weight | 10 kg |
| Maximum speed | up to 125 cm/sec |
| Control | Front panel: torque/speed + direction |
| Dimensions (W × D × H) | 300 × 385 × 320mm |
| Power supply | Input 100–240V / 50Hz, Output 15VDC / 4.33A |
| Guarantee | 2 years (1 year for power supply) |
What do you get in the package?
- Labelmate CAT-3-CHUCK Rewinder (LMR006 base) with Quick-Chuck system
- R-16 configuration/kit (LMX457)
- Power supply
- Documentation / instructions
