Label printer 4″ BX420T, Flat Head, 104mm, 203 x 203 DPI, 305mm/sec, USB LAN Ethernet Toshiba BX420T-GS02-QM-S
2.171,95 € incl. VAT
Toshiba BX420T-GS02-QM-S is a 4-inch, 203 dpi, thermal and direct thermal industrial label printer, 305 mm/s speed, USB 2.0, Gigabit LAN, color LCD and A-BRID platform for rapid integration into logistics, manufacturing and retail.

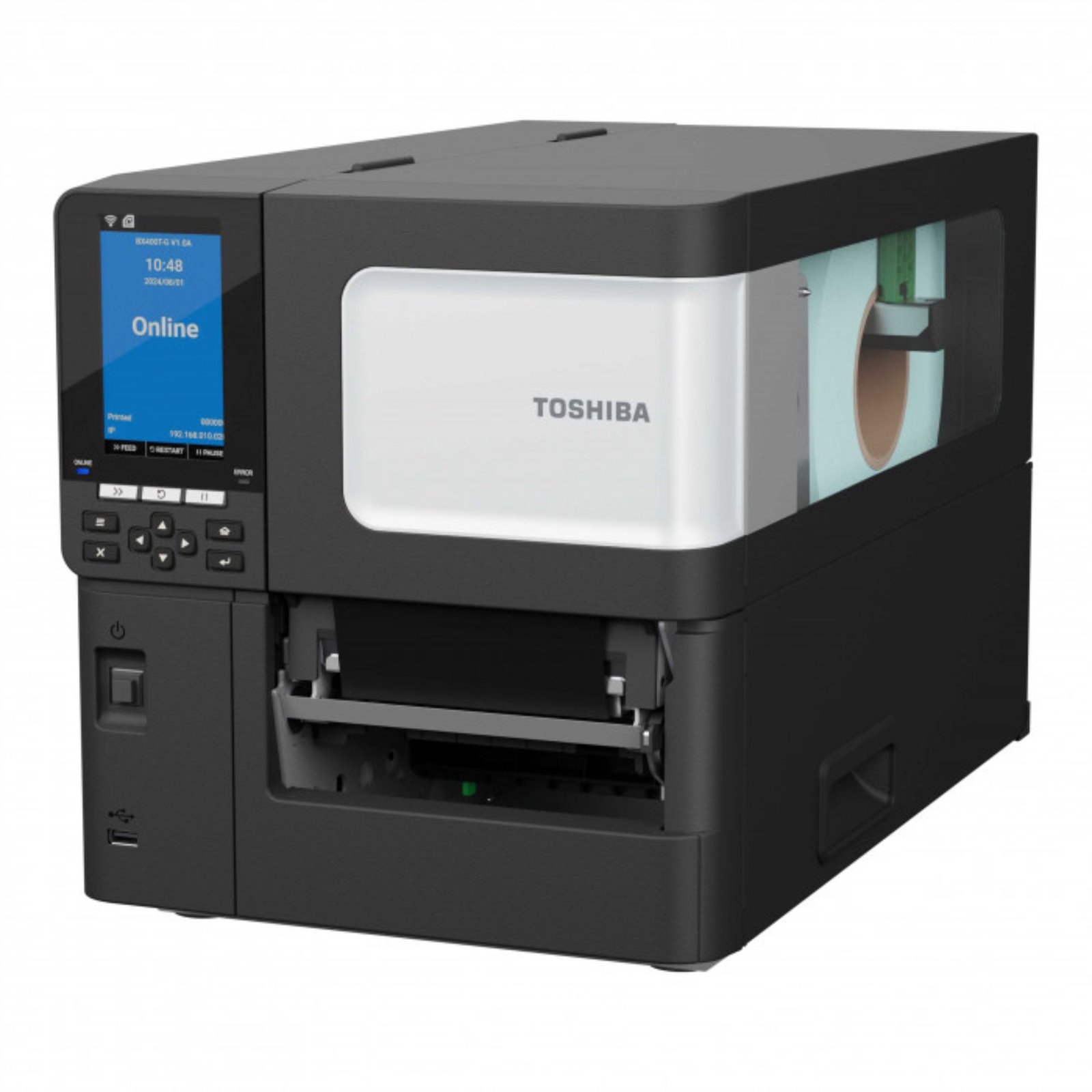

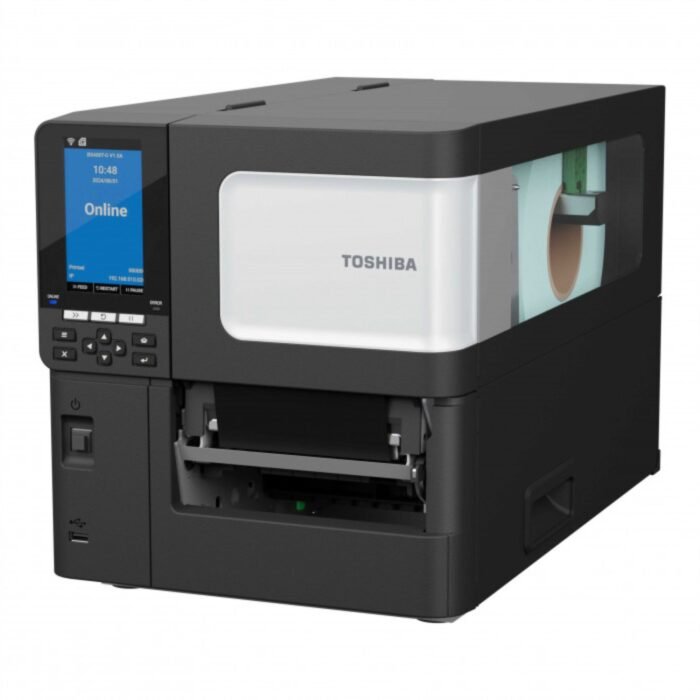

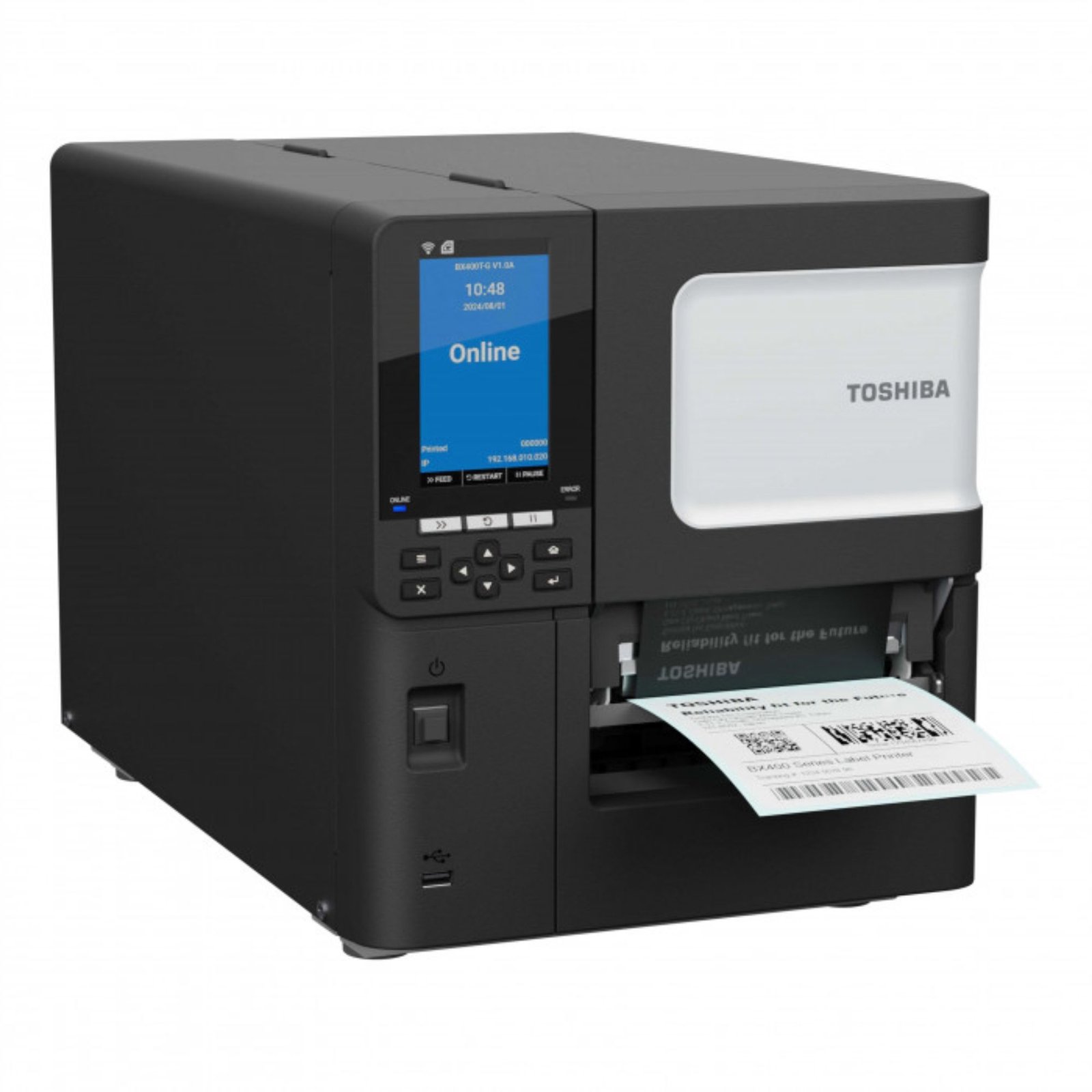

Toshiba BX420T-GS02-QM-S 4 inch industrial thermal transfer printer
The Toshiba BX420T-GS02-QM-S is an industrial label printer designed for businesses that need speed, reliability and easy integration into modern workflows. This 4-inch model uses thermal transfer and direct thermal printing technology, making it suitable for product labels, logistics labels, shelf labels, identification labels and industrial applications where print clarity and durability are essential.
Equipped with a resolution of 203 dpi and a speed of up to 305 mm/s, the Toshiba BX420T-GS02-QM-S offers high productivity in environments such as warehouses, distribution centers, manufacturing and retail. The A-BRID platform with a dual-core processor simultaneously runs a Linux-based system and an RTOS print engine, which enables fast processing, intelligent management and easy integration with existing IT infrastructures. In addition, the functions of PDF Direct Printing, auto-emulation and e-BRIDGE CloudConnect significantly simplify operation and connectivity.
The BX420T-GS02-QM-S features a flat head printhead, color LCD display, intuitive 11-key interface and USB 2.0 connectivity plus Gigabit Ethernet LAN. Ribbon support up to 600m helps reduce operator intervention and increase efficiency in high-volume printing applications. It is an excellent choice for companies looking for a robust, multi-language Toshiba industrial printer ready for today’s labeling requirements.
- 4 inch industrial thermal transfer and direct thermal printer
- Print resolution 203 dpi
- Maximum speed of 305 mm/s
- Maximum printing width up to 111 mm
- A-BRID Platform with Dual OS: Linux-based and RTOS
- Memory 1 GB RAM and 8 GB ROM
- PDF Direct Printing with auto rotate and auto scaling
- USB 2.0 and LAN 10/100/1000 BaseT connectivity
- Color LCD, 2 LEDs and 11 keys
- Compatible with logistics, manufacturing and retail applications
| Technical specification | Value |
|---|---|
| Product code | BX420T-GS02-QM-S |
| Print type | Thermal transfer, direct thermal |
| Print width | 4 inches / max. 111 mm |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum speed | 12 fps / 305 mm/s |
| Maximum print length | Batch: 6-1496 mm, Cut: 21.4-1492 mm, Peel-off: 21.4-1496 mm |
| Memory | 1GB RAM, 8GB ROM |
| Standard interfaces | USB 2.0, USB Host/HID, LAN Ethernet 10/100/1000 |
| User interface | Color LCD, 2x LED, 11x keys |
| Print head | Flat head |
| size | 278 x 460 x 310 mm |
| Weight | 16.4 kg |
Printhead comparison
The Toshiba BX420T-GS02-QM-S uses a flat head printhead, which is renowned for its robustness, broad industrial application compatibility and balanced operating costs. Compared to near-edge technology, flat head is a great choice for companies looking for reliability, predictable maintenance and consistent label printing results.
