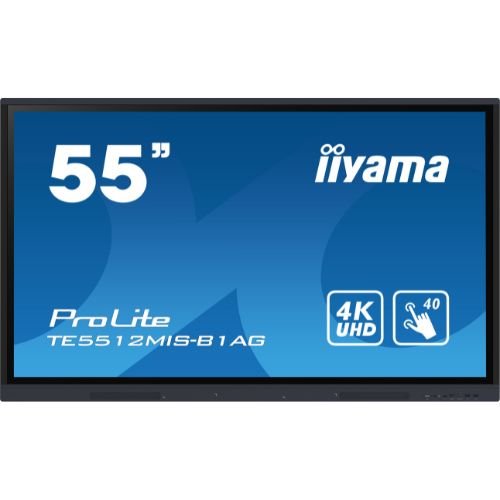

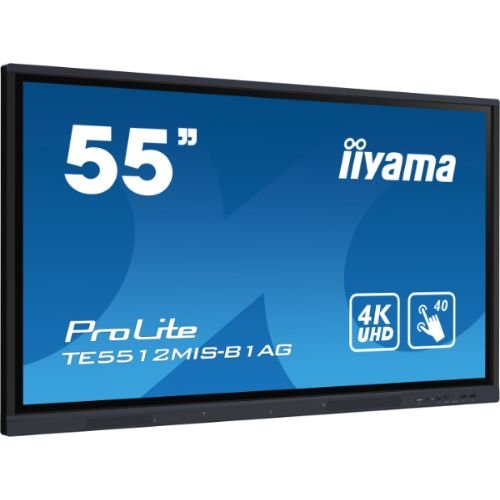

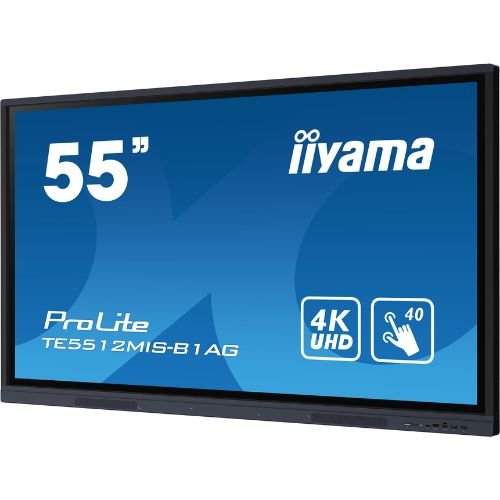

Interactive display 55″ 4K, IR multi-touch, iiWare (Android), HDMI/DP, OPS – iiyama TE5512MIS-B1AG
1.529,44 € incl. VAT
IIYAMA TE5512MIS-B1AG 55” 4K interactive display with IR multi-touch, iiWare (Android), wireless sharing, HDMI/DP/VGA, USB (touch), HDMI out, OPS slot – ideal for meeting rooms, education and training.
IIYAMA ProLite TE5512MIS-B1AG – 55” Interactive Display, 4K UHD, IR multi-touch, iiWare (Android), Wi-Fi, OPS – for Meeting Rooms, Education & Hybrid Collaboration
iiyama TE5512MIS-B1AG is a 55” 4K interactive display designed for fluid collaboration in businesses and schools. IR multi-touch (multi-user) technology offers natural writing with a stylus or finger, and anti-glare glass reduces reflections and eye fatigue. Runs iiWare (Android) for whiteboarding, annotation and web browsing directly on the screen, and with iiyama Share/EShare you can share wirelessly from your laptop or phone. Rich connectivity – HDMI, DisplayPort, VGA, USB (for touch and media), LAN – and the OPS slot for modular Windows PCs make integration simple, regardless of infrastructure. Front-facing speakers provide clear sound, and the 24/7 design makes it ideal for use in classrooms, offices, and public spaces.
Why choose TE5512MIS-B1AG
- Natural interaction: IR multi-touch with fast touch recognition and fluent writing with a stylus.
- 4K image on 55”: fine text, consistent colors and anti-glare layer for visibility in ambient light.
- Ready-to-work ecosystem: iiWare (Android) – whiteboard, browser, file manager, capture/annotation, wireless sharing (iiyama Share/EShare).
- Comprehensive connectivity: HDMI/DP/VGA, USB (media & touch), LAN, RS-232, OPS slot for Windows PC.
- Designed for teams: user profiles, cloud/USB backup, OSD security, remote management.
Usage scenarios
- Meeting rooms / Huddle spaces: 4K presentations, annotation, wireless multi-device mirroring.
- Education (K-12 / University): interactive lessons, student-teacher collaboration, web content/apps without an external PC.
- Training & workshop: whiteboarding, quick export to PDF, file sharing from USB or network.
- Public spaces & signage: Kiosk mode, on/off programming, network monitoring.
Technical specifications
| Section | Specifications |
|---|---|
| Diagonal / Panel | 55” (139 cm) • VA/IPS panel for educational & corporate use • anti-glare |
| Resolution / Ratio | 3840 × 2160 (4K UHD), 16:9, 60 Hz |
| Brightness / Contrast | ≈350–400 cd/m² • ≈4000:1 (native) |
| Angles / Colors | 178°/178° • 10-bit (8-bit + FRC), ≈1.07 billion colors |
| Touch technology | IR multi-touch (multi-user) • input: double-ended stylus, finger, glove • USB (HID) for touch-back |
| Built-in software | iiWare (Android) – Whiteboard/Note, Browser, File Manager, capture/annotation, cloud connection; iiyama Share/EShare for wireless mirroring |
| Video inputs | HDMI x3 (4K@60) • DisplayPort x1 • VGA x1 |
| Outputs / Audio | HDMI out (4K@60) for display cascade • Audio out 3.5 mm • Front speakers (typical power 2×10–16 W) |
| Data & control | USB 3.x/2.0 (front & side) for files/peripherals • LAN RJ-45 • RS-232 • IR |
OPS & extensions| OPS slot for modular Windows PC (NUC/mini PC on dedicated stand) | |
| Security & OSD | OSD key-lock, pin/profiles, Kiosk |
| Mounting / Mechanical | VESA 400×400 mm • metal casing, fanless design |
| Operation | 24/7 • recommended temperature 0…40 °C |
| Power / Consumption | AC 100–240 V • typical consumption ≈120–180 W • stand-by ≤0.5 W |
| Dimensions / Weight | slim format for wall mounting or mobile stand; net weight ≈30–40 kg |
| In the package | Remote control, stylus (set), cables (Power/USB/HDMI), accessories grip/cable-cover, quick guide |
| Compliance | CE, RoHS, ErP, WEEE, REACH, UKCA |
“Connect, write, share. TE5512MIS-B1AG brings 4K + multi-touch and the iiWare suite directly to your room, without an external PC.”
Key benefits
- Frictionless collaboration: USB/HDMI/DP or wireless connectivity, native whiteboard, cloud/PDF export.
- Easy management: LAN/RS-232 control, OSD lock, Kiosk mode.
- Scalability: OPS for Windows, easy integration with UC/cameras and sound bars.
Frequently Asked Questions (FAQ)
Can I share my iPhone/Android/Windows screen wirelessly?
Yes, via iiyama Share/EShare (AirPlay/Chromecast/Miracast compatible – depending on the application).
Can I use a stylus and finger simultaneously?
Yes, IR multi-touch technology allows multi-user work with a stylus, finger or glove.
Can I run applications without a PC?
Yes, iiWare (Android) offers a whiteboard, browser, and basic tools directly on the screen.
Is it suitable for heavy use?
Yes, it is designed for 24/7 operation and has anti-glare glass for durability.
Does it have video output for a second display?
Yes, there is HDMI out for extending content to a second screen.
