Industrial tape dispenser with peeler Start Int. TDA080-LR

Industrial tape dispenser with peeler Start Int. TDA080-LR

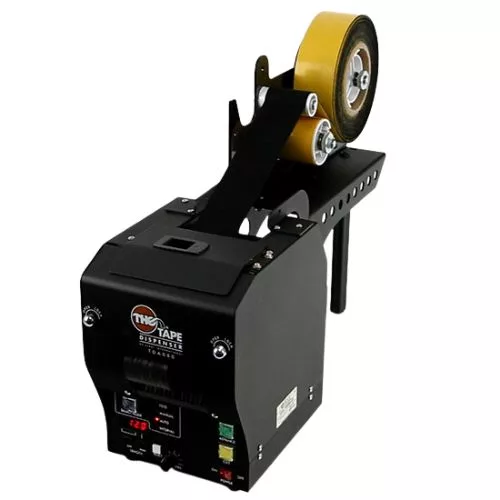

The Start International TDA080-LR Industrial Tape Dispenser with Liner Remover is designed to automatically dispense and cut a variety of tape types up to 2″ (51 mm) wide. Originally introduced by Start International, this device is ideal for high-volume production lines and operations that require repetitive labeling. The TDA080-LR automatically removes the liner from tape, dispenses and cuts with precision, with four operating modes: Manual Feed and Cut, Manual Feed and Auto Cut, Auto Feed and Cut, and Intermittent Feed and Cut.

Key Features

1. Advanced Features:
   • Removes Liner: Ideal for aluminum tape and other materials that requires removal of the protective layer.
   • 5 Programmable Length Memory: Facilitates automatic dispensing of multiple tape lengths.
   • Multiple Operating Modes: Manual Feed and Cut, Manual Feed and Auto Cut, Auto Feed and Cut, Intermittent Feed and Cut.
2. Capacity and Compatibility:
   • Material Width: Accepts tape widths from 0.25″ (6 mm) to 2″ (51 mm).
   • Material Length: Allows tape to be cut to lengths from 1.6″ (40 mm) to 394″ (9999 mm).
   • Diameter Roll: Supports rolls up to 9″ (251 mm) outside diameter.
3. Precision and Efficiency:
   • Digital Display: Provides a digital display with switch for precise belt length adjustments.
   • Cutting Accuracy: Cuts with an accuracy of +/- 0.04″ (1 mm), ensuring consistency and quality.
4. Robust Construction:
   • Design and Materials: Compact and solid metal construction, ideal for continuous industrial applications.
   • Safety Lock: Includes safety features to protect operator.
5. Versatility:
   • Dispenses and Cuts Non-Adhesive Materials: Can also dispense some non-adhesive materials.
   • Power Options: Switchable voltage (100V/115V or 230V).

What’s in the box?

• TDA080-LR Electric Tape Dispenser: The main component for automatic dispensing and cutting of adhesive tapes.
• User Manual: Detailed guide for installing and using the device.
• Silicone Oil: Accessory for maintenance and optimal device operation.
• Power Cord: Provides connection to the power source.

Product Specifications

• Model: TDA080-LR
• Tape Width: from 0.25″ (6 mm) to 2″ (51 mm)
• Cut Length: from 1.6″ (40 mm) to 394″ (9999 mm)
• Maximum Roll Outer Diameter: 9″ (251 mm)
• Core: 3″ (76 mm)
• Cutting Accuracy: +/- 0.04″ (1 mm)
• Weight: 21 lbs (9.5 kg)
• Dimensions: 18″(L) x 7″(W) x 12″(H)
• Electrical Requirements: 117V 50/60Hz, under 1 amp (also available in 230V 50/60Hz)

Benefits

• Efficiency and Productivity: Increases production speed due to its superior performance.
• Precision and Reliability: Provides precise and consistent cuts, ensuring product quality final.
• Versatility: Compatible with various types of adhesive tapes and materials, making it ideal for multiple industrial applications.
• Durability: Robust metal construction ensures long life and reliable performance.

Applications

The Start International TDA080-LR industrial tape dispenser is ideal for use in various industries and applications, including:

• Manufacturing and Production: Efficient use of adhesive tapes in production processes.
• Packaging and Labeling: Precise cutting and application of tapes on packages and products.
• Food and Beverage Industry: Safe and hygienic packaging of food products.
• Electronics and Electrical: Use in the assembly and production processes of electronic and electrical components.
