Industrial Printing Module 6″ S86NX 203dpi TT LH + UK cable SATO WWS8N41AUK
7.382,48 € incl. VAT
Industrial print module 6” SATO S86NX 203dpi TT LH with UK cable (WWS8N41AUK). Thermal Transfer & Direct Thermal, speed 14 ips, width 167.5 mm, ribbon 600 m, LCD 3.5”, USB, LAN. Ideal for durable industrial labels.

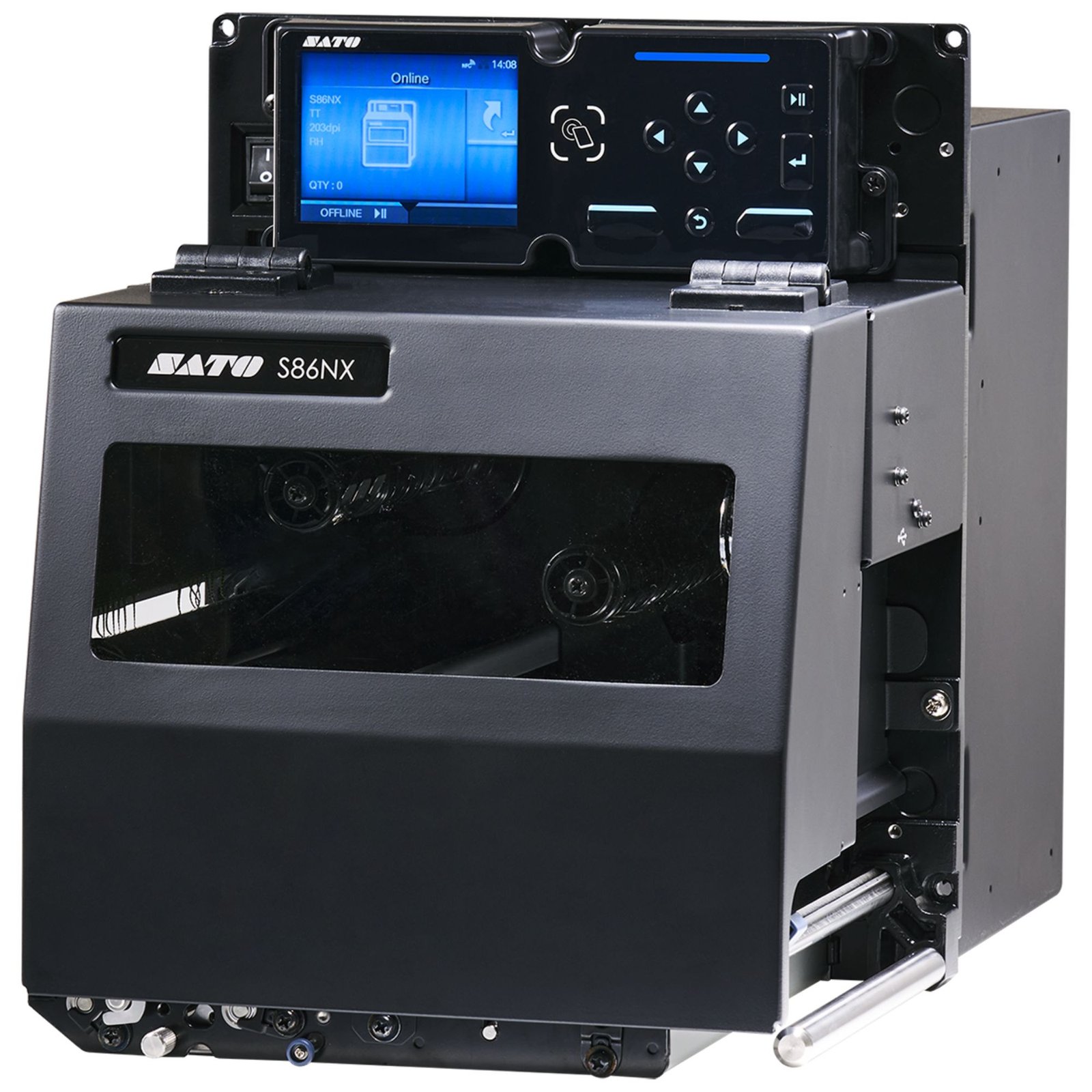

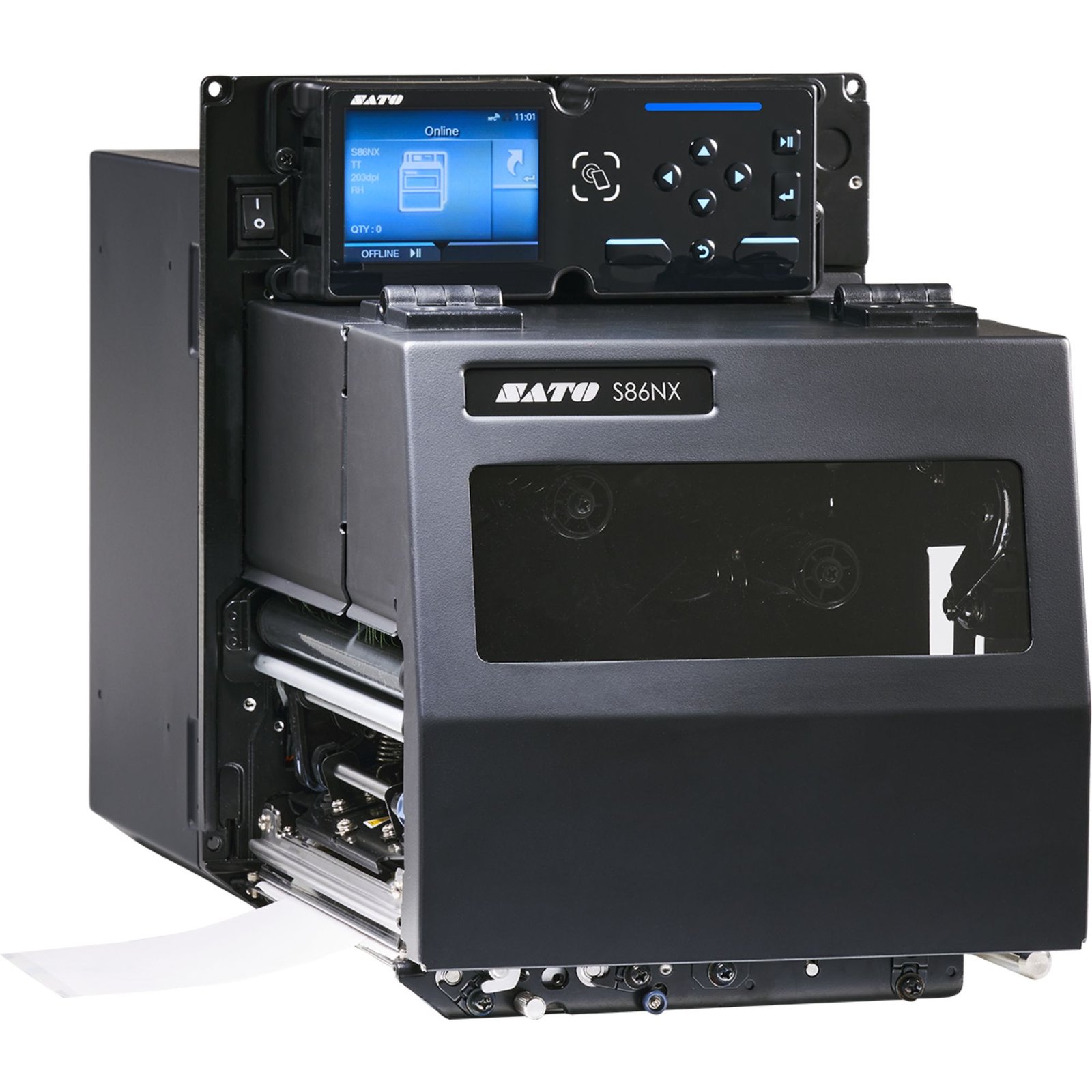

Industrial Printing Module 6” S86NX 203dpi TT LH – SATO WWS8N41AUK
SATO WWS8N41AUK – S86NX 203dpi TT LH + UK cable is a 6-inch industrial print module designed for applications where label strength and consistent performance are essential. Equipped with Thermal Transfer (TT) and Direct Thermal (DT) technology, this model offers maximum flexibility and superior print durability.
With 203 dpi resolution and speeds of up to 14 inches per second (356 mm/s) , the S86NX TT is ideal for high-volume industrial applications. The LH (Left Hand) configuration allows for optimal integration into automated lines, and the version includes a UK power cord .
Thermal Transfer – durable labels in harsh environments
Thermal Transfer technology uses ribbon to create prints that are resistant to friction, chemicals, and temperature variations.
- TT & DT printing – flexibility in application choice
- Speed up to 14 ips (356 mm/s)
- Maximum print width 167.5 mm (6.59”)
- Ribbon support up to 600 m
- Ideal for logistics, automotive and industrial labels
Professional integration into automated lines
The S86NX 203dpi TT LH is designed for direct integration into complex industrial systems.
- Compatibility with industrial PLCs
- Simple Standalone Mode
- Supported emulations: SZPL, SDPL, SIPL, SBPL

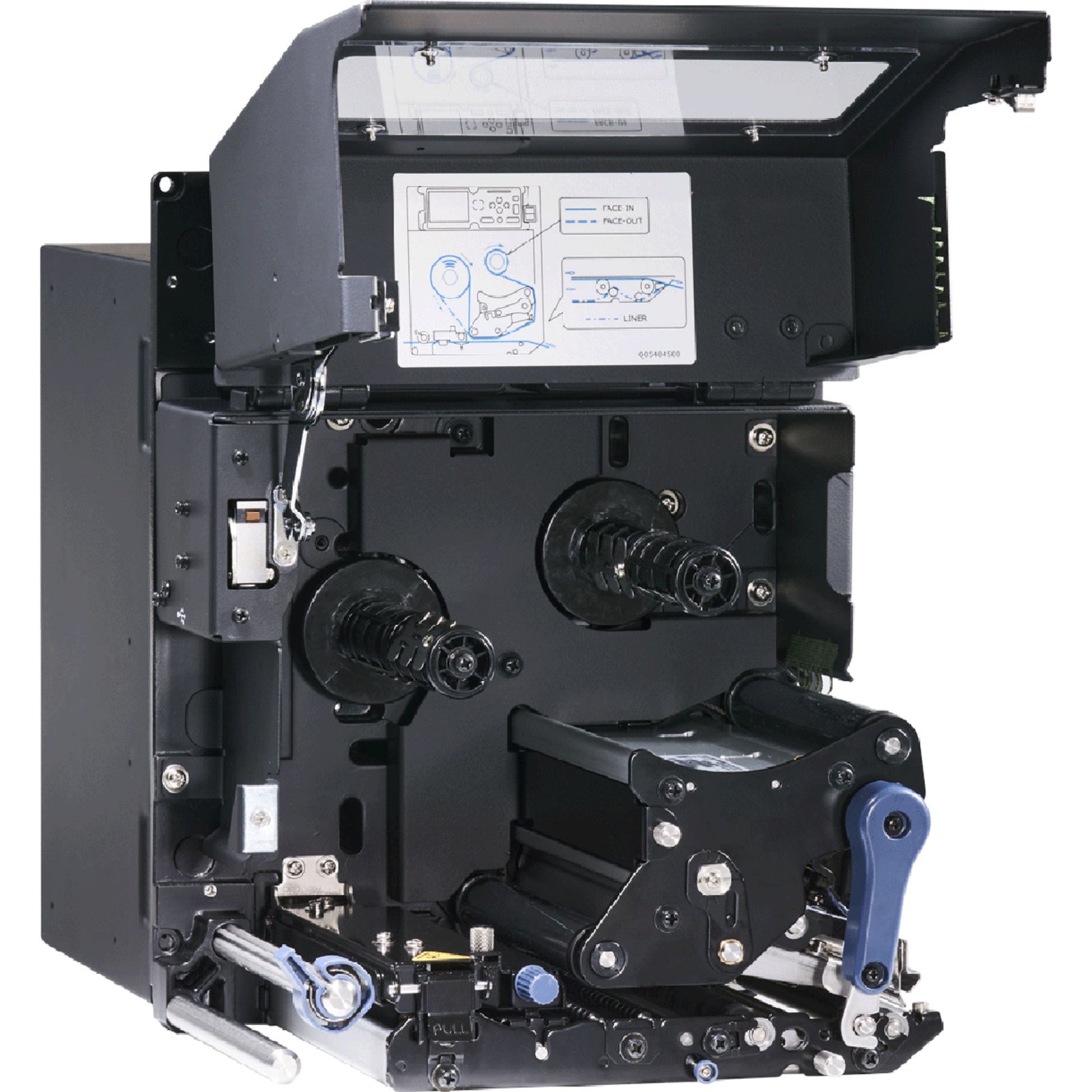

- Face-in / Face-out ribbon support
Advanced Intelligence with AEP
Application Enabled Printing (AEP) technology allows operation without an external PC, optimizing infrastructure and reducing system complexity.
- Dual CPU & Dual OS (Linux + ITRON)
- Memory: 2GB ROM + 256MB RAM
- Rapid integration into automated industrial flows
Intuitive operation and quick maintenance
Control is achieved via the 3.5” (320 x 240) color TFT screen, with intuitive menu and support for 31 languages.
- Tool-free printhead replacement
- Electronic ribbon tensioning system
- Integrated video guidance for users
- Robust metal construction for 24/7 use
Complete industrial connectivity
- USB 2.0 (Type-B + 2 x Type-A Host)
- 10/100Mbps Ethernet LAN
- RS232C
- EXT I/O
- Optional: Wireless LAN
Recommended apps
- Transport & Logistics
- road
- Food industry
- Industrial production
- Healthcare
- Automated warehouses
Main technical specifications
| Characteristic | Specification |
|---|---|
| Product code | WWS8N41AUK |
| Series | S86NX |
| Resolution | 203 dpi |
| Printing method | Thermal Transfer (TT) & Direct Thermal (DT) |
| Configuration | LH (Left Hand) |
| Maximum speed | 14 fps (356 mm/s) |
| Maximum print width | 167.5mm |
| Ribbon | Up to 600 m |
| Display | 3.5” color TFT |
| feeding | Includes UK power cord |
SATO S86NX 203dpi TT LH – WWS8N41AUK is the ideal solution for companies that need durable labels, consistent industrial performance, and flexible integration into modern automated processes.
🎥 Video Presentation
https://www.youtube.com/watch?v=7c-TA435xjs
