Industrial Printing Module 4″ S84NX 609dpi DT RH RFID + EU cable SATO WWS8N16BEU
10.990,64 € incl. VAT
SATO S84NX 609dpi DT RH RFID (WWS8N16BEU) is a 4” industrial Direct Thermal print module with 609 dpi resolution and integrated UHF RFID. Includes EU power cable. Ideal for critical applications requiring maximum accuracy and full traceability.
Industrial Printing Module 4” S84NX 609dpi DT RH RFID – WWS8N16BEU
The SATO S84NX 609dpi Direct Thermal RH RFID (WWS8N16BEU) is a 4-inch industrial printer module designed for applications where ultra-high accuracy and RFID traceability are essential. With 609 dpi (24 dots/mm) resolution and integrated UHF RFID technology, this model delivers maximum performance in automated industrial environments.
The Direct Thermal (DT) version eliminates the use of ribbon, making it suitable for specialized applications and labels with controlled life. The RH (Right Hand) configuration allows for optimal integration depending on the module’s positioning in the production line.
Ultra-high 609 dpi resolution for critical applications
When every detail counts, the S84NX 609dpi delivers exceptional clarity for micro-text, very dense 2D codes and complex technical labels.
- Resolution: 609 dpi (24 dots/mm)
- Maximum speed: 6 ips (152 mm/sec)
- Maximum print width: 104 mm (4.1”)
- Maximum print length: up to 400 mm
Recommended for:
- Electronics industry
- Automotive – precision components
- Medical devices and equipment
- Very high density QR/DataMatrix codes
Integrated UHF RFID for full traceability
The WWS8N16BEU model is equipped with UHF RFID technology (ISO 18000-6 Type C, EPC Gen 2 Class 1) , enabling simultaneous printing and encoding of smart labels in the industrial flow.
- Operating frequency: 868 – 960 MHz
- Accurate “right-first-time” encoding
- Reducing errors and operational costs
- Direct integration into ERP/WMS systems
Heavy-duty industrial construction

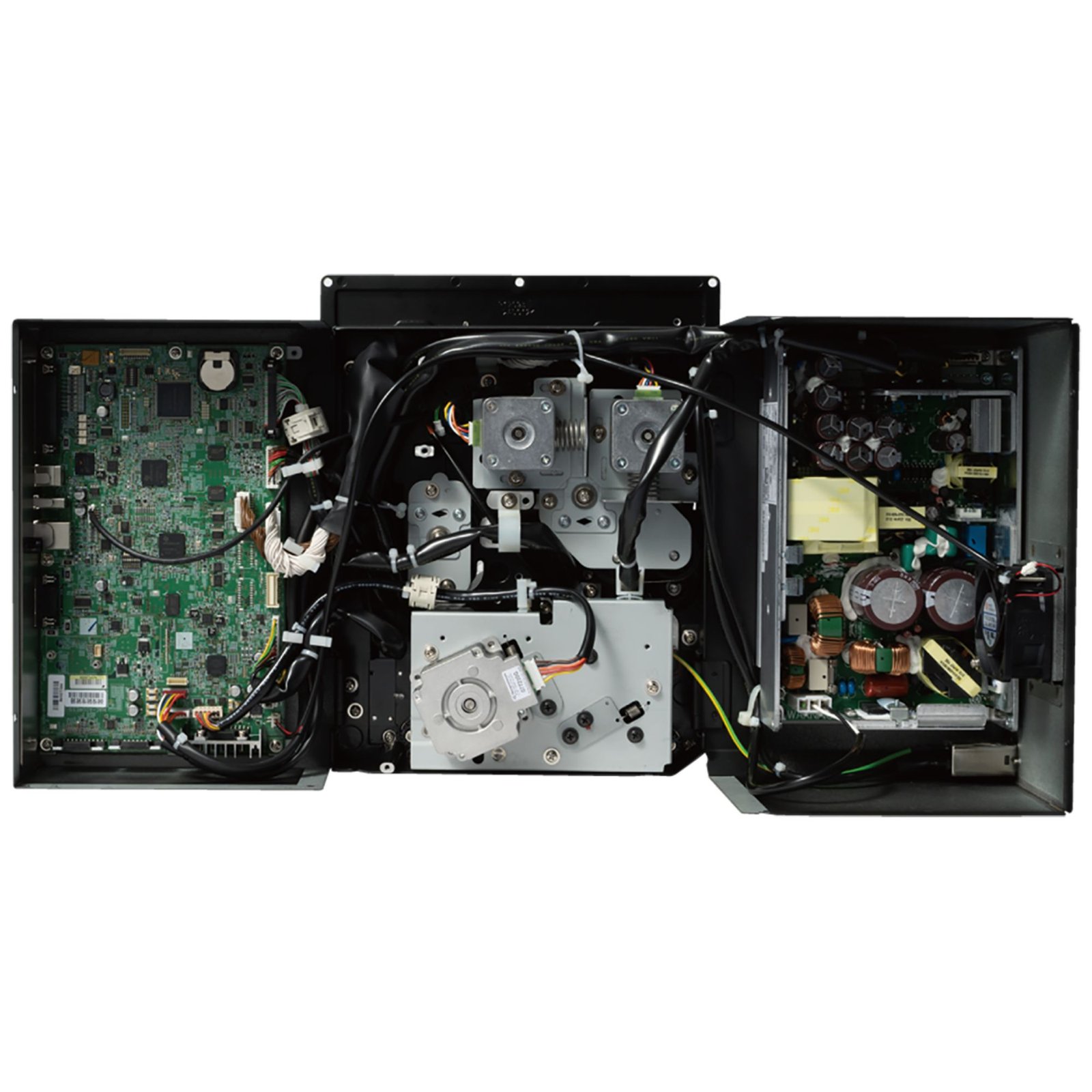

The S84NX is built on a robust metal structure, designed for continuous operation in demanding industrial environments.
- Industrial metal housing
- Reinforced hinges for increased strength
- Non-stick surface to prevent blockages

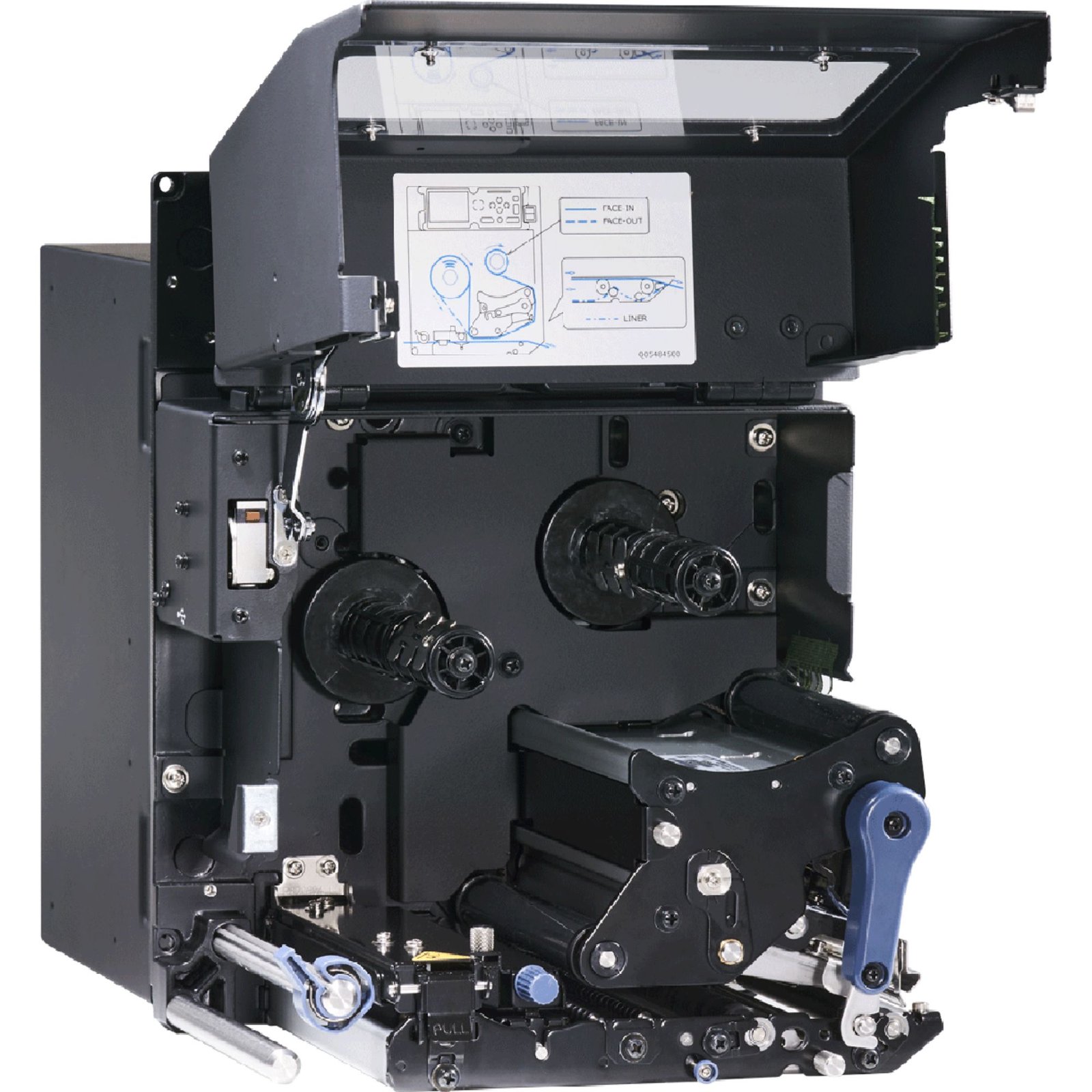

- Quick print head replacement without tools
Complete integration into automated systems
- USB 2.0 (device + 2 x USB Host)
- 10/100Mbps Ethernet LAN
- RS232C
- Industrial I/O EXT
- Simple Standalone Mode
- Emulation support: SBPL, SZPL, SDPL, SIPL

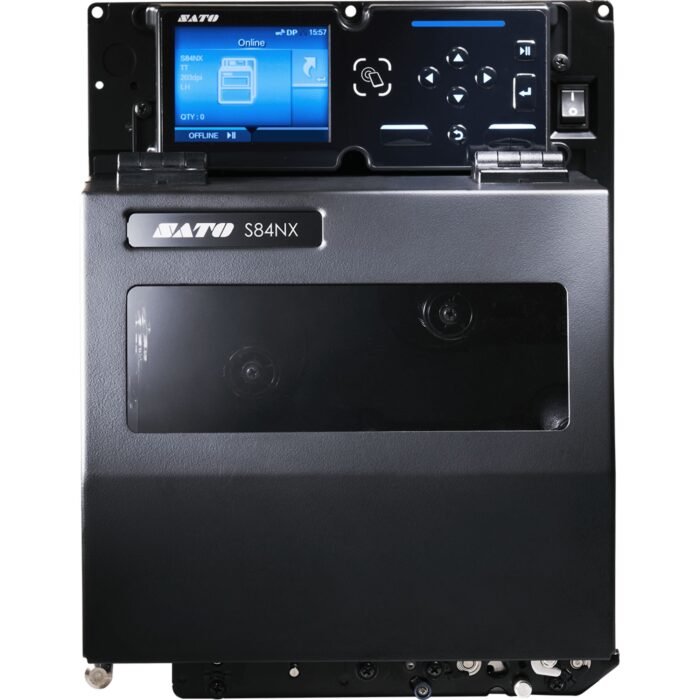

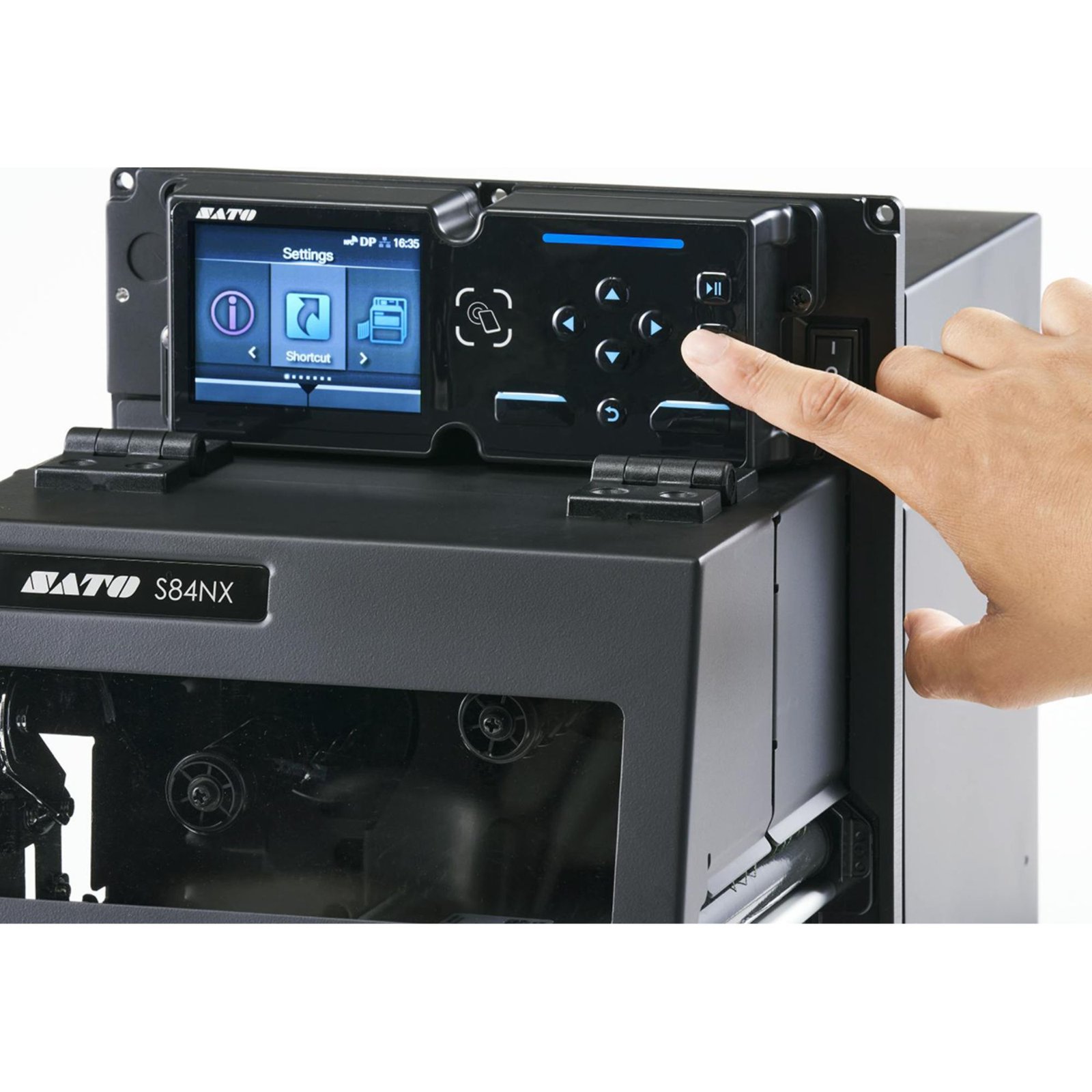

Intuitive operation with 3.5” TFT color display
- Full color LCD 3.5″ (320 x 240)
- 9 control buttons
- Menu available in 31 languages
- Integrated video guides for quick setup
Technical specifications – SATO S84NX 609dpi DT RH RFID (WWS8N16BEU)
| Characteristic | Specification |
|---|---|
| Product code | WWS8N16BEU |
| Exemplary | S84NX 609dpi Direct Thermal RH RFID |
| Printing method | Direct Thermal (DT) |
| Resolution | 609 dpi (24 dots/mm) |
| Maximum speed | 6 fps (152 mm/sec) |
| Maximum print width | 104mm (4.1”) |
| Maximum print length | 400mm |
| RFID | UHF RFID ISO 18000-6 Type C, EPC Gen 2 Class 1 |
| Processor | Dual CPU & Dual OS (Linux + ITRON) |
| Memory | CPU1: 2GB ROM, 256MB RAM / CPU2: 4MB ROM, 64MB RAM |
| INTERFACE | USB 2.0, 2 x USB Host, LAN, RS232C, EXT I/O |
| Display | 3.5” full-color LCD |
| feeding | AC 100–240V ±10%, 50/60Hz |
| size | 245 x 408 x 300 mm |
| Weight | 12.7 kg (Direct Thermal) |
| Orientation | RH (Right Hand) |
| Included accessories | EU power cord |
Video presentation
For a full demonstration of the SATO S84NX capabilities, watch the official presentation:
▶ Watch SATO S84NX presentation video
https://www.youtube.com/watch?v=7c-TA435xjs
