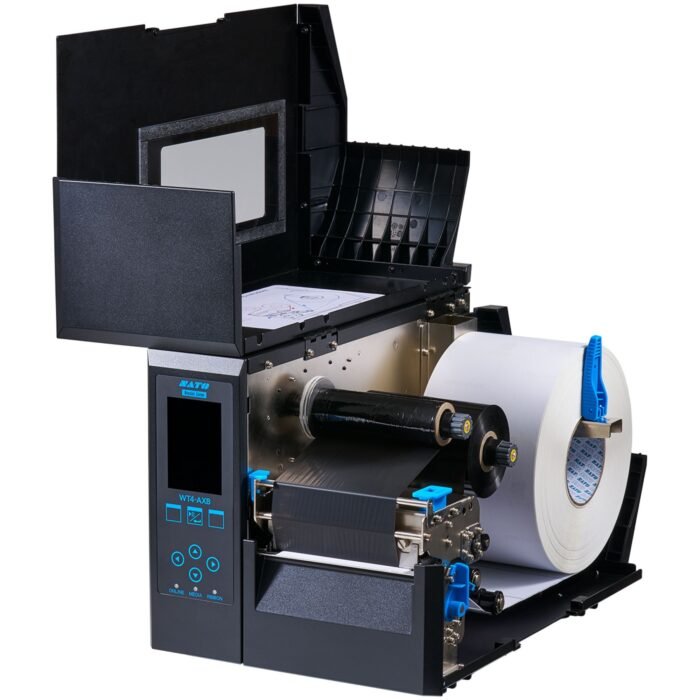

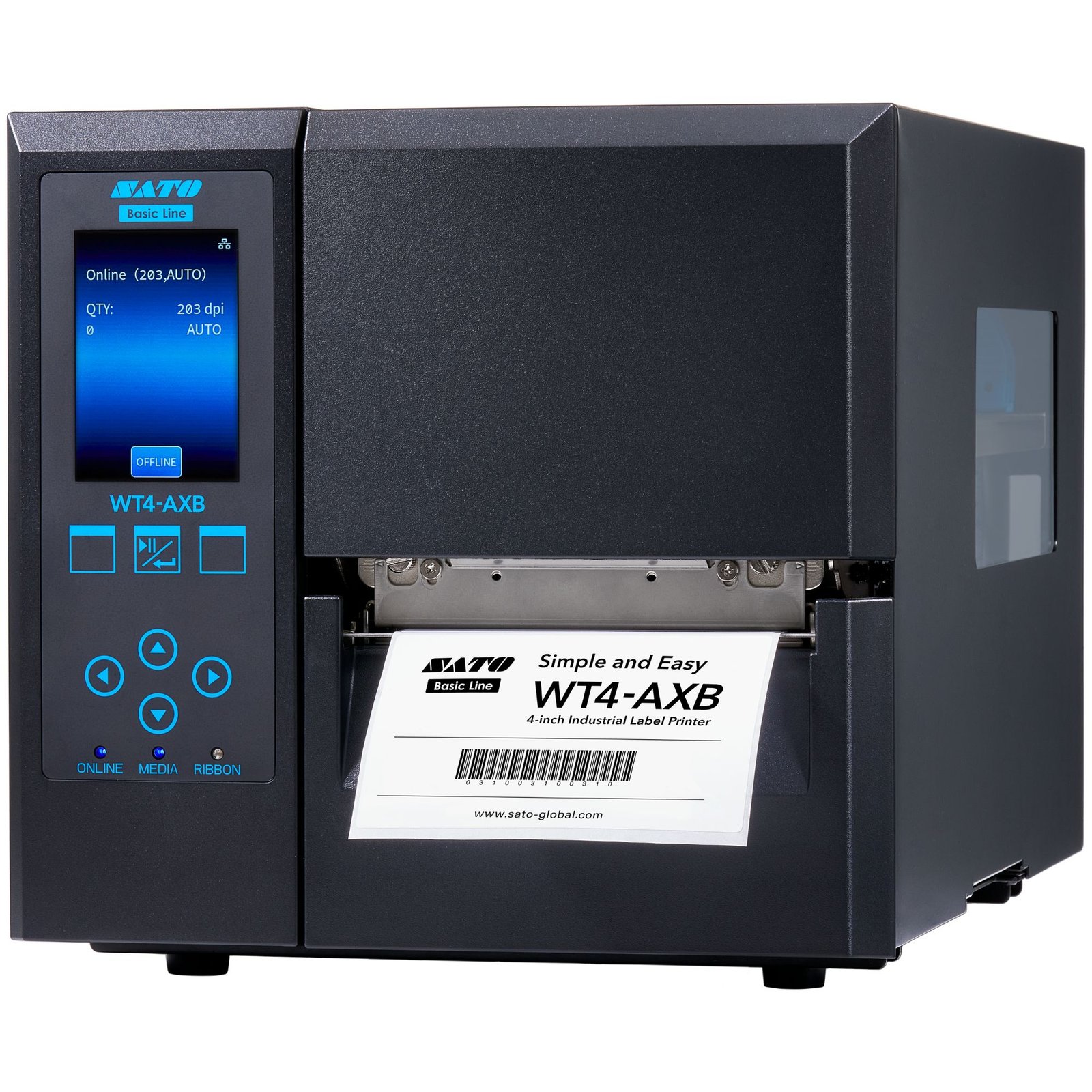

Industrial Label Printer WT4AXB 300 dpi with dispenser + power cable United Kingdom SATO WWWTA432I-UK

SATO WT4AXB 300 dpi WWWTA432I-UK Industrial Label Printer with Dispenser – High Accuracy and Efficient Application

The SATO WT4AXB 300 dpi WWWTA432I-UK is a 4-inch industrial label printer equipped with a dispenser/peel-off and supplied with a UK power cord . This configuration combines high 300 dpi resolution with automatic label presentation, making it ideal for precision applications in modern industrial environments.

Designed for reliability and intensive use, the WT4AXB is suitable for advanced manufacturing, high-accuracy electronics, medical, automotive and logistics industries.

300 dpi resolution – fine details for critical applications

With a resolution of 300 dpi (12 dots/mm) , the printer is optimized for:

• Small 2D codes (QR Code, DataMatrix)
• Labels with small fonts and detailed graphics
• Electronic component labeling
• Medical and pharmaceutical applications

• Maximum print width: 104 mm (4.09”)
• Maximum print length: up to 1,500 mm
• Maximum speed: up to 152.4 mm/sec (6 ips)

The result is a clear print with precise edges and perfectly readable codes.

Integrated dispenser – individually presented labels

The dispensing device automatically separates the label from the liner and presents it to the operator for immediate application.

Main advantages:

• Ready-to-use labels
• Reducing handling time
• Increasing labeling speed
• Organized and efficient workflow

Ideal for picking, packaging and applications where application precision is essential.

Thermal Transfer & Direct Thermal – complete flexibility

• Thermal Transfer (TT) – for labels resistant to abrasion and external factors
• Direct Thermal (DT) – for temporary logistics applications

A single device for multiple types of applications.

Extended battery life for continuous productivity

• Supports label rolls with an outer diameter of up to 203.2 mm (8”)
• Ribbon compatibility up to 450 meters
• Supported media width: 22 – 112 mm
• Average thickness: 0.08 – 0.19 mm

Fewer stops for changing consumables and maximum operational efficiency.

Rapid integration into industrial infrastructures

The WWWTA432I-UK model offers industry standard connectivity:

• USB Type A & USB Type B
• LAN (Ethernet)
• RS-232
• Optional: WLAN & Bluetooth

Compatible emulations

• SBPL (SATO Barcode Printer Language)
• SZPL
• Siple

Allows for rapid integration into ERP and WMS systems without major modifications.

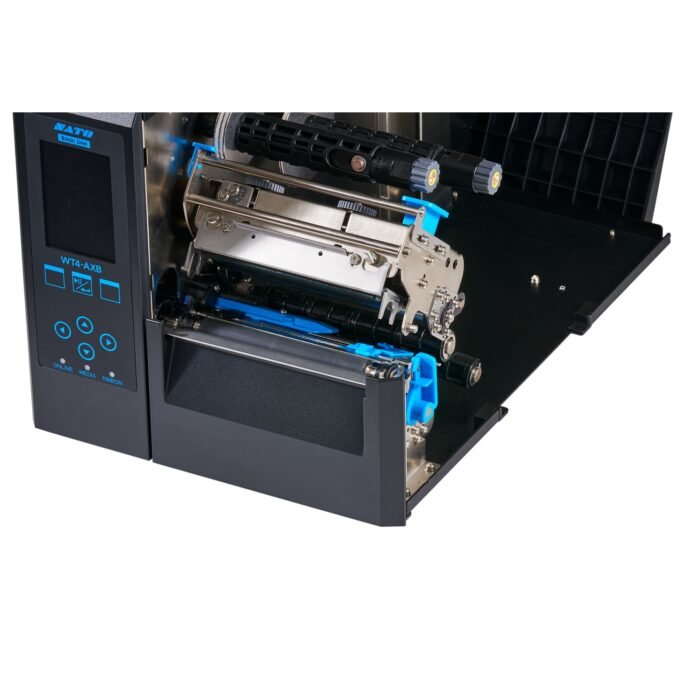

Intuitive operation and simplified maintenance

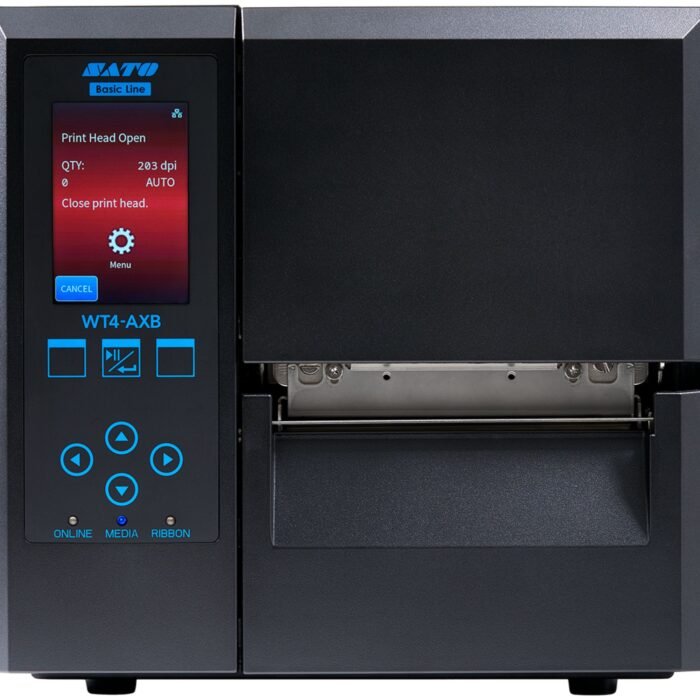

• 3.5” color LCD with coded error messages
• 3 status LEDs
• 7 control buttons
• Easy to replace thermal head

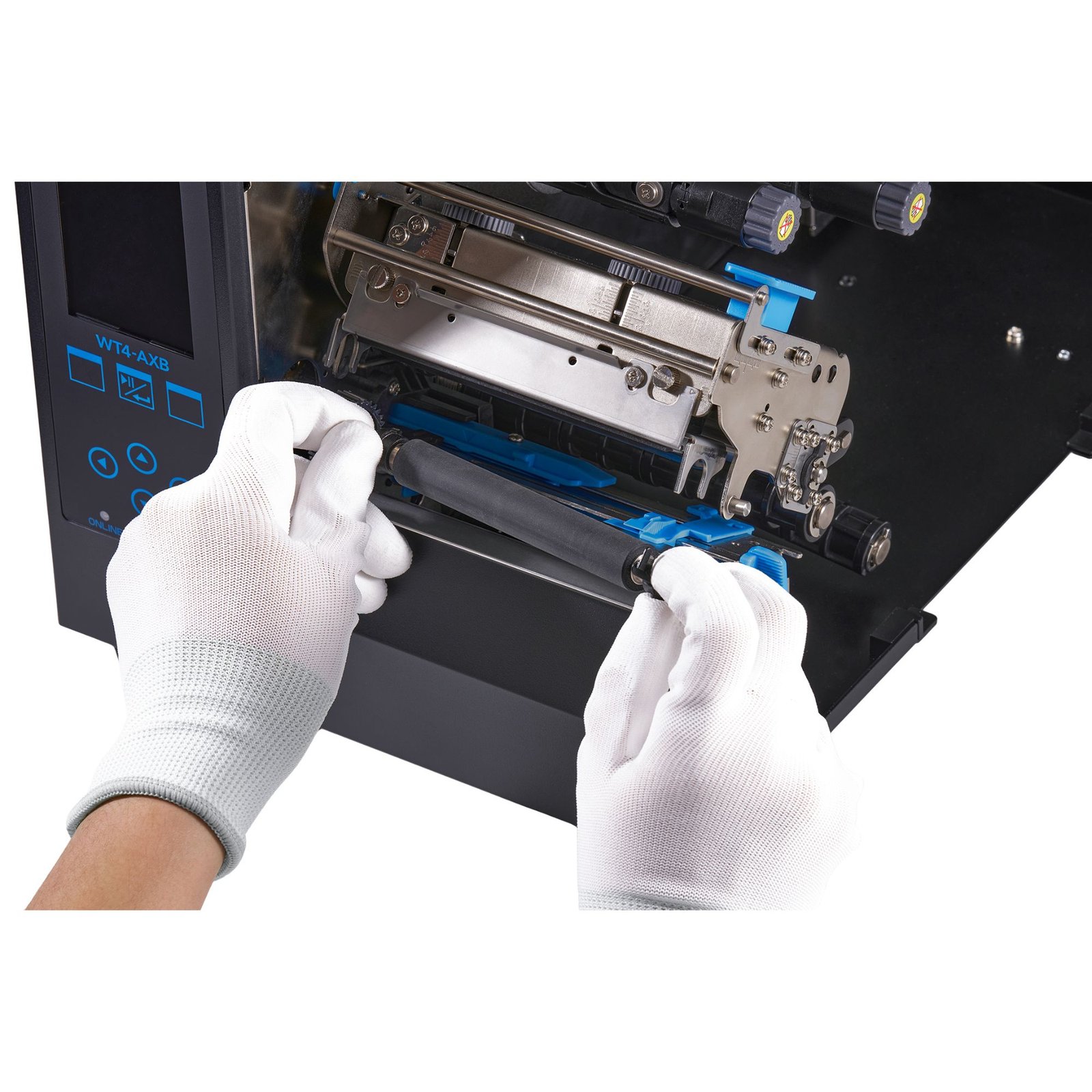

• Tool-free exchangeable platen roller
• Self-diagnosis functions

Compact dimensions: 267.7 x 450 x 261 mm
Weight: 11.4 kg

Technical specifications – SATO WT4AXB 300 dpi WWWTA432I-UK

Recommended apps

• Electronics industry
• Medical and pharmaceutical applications
• Precision industrial production
• Automotive and traceability
• Logistics and packaging

Why choose SATO WT4AXB 300 dpi with dispenser from AutoID?

With AutoID you benefit from specialized technical consulting, complete automatic identification solutions and dedicated after-sales support. We help you choose the right configuration and optimize operational flows for maximum efficiency and reduced costs.
