Industrial Label Printer HR224 609dpi TT SATO WWHR30002
10.306,70 € incl. VAT
SATO HR224 609dpi Thermal Transfer – industrial printer for very small labels, width 56 mm. Ultra-high resolution for electronics, medical and precision applications.

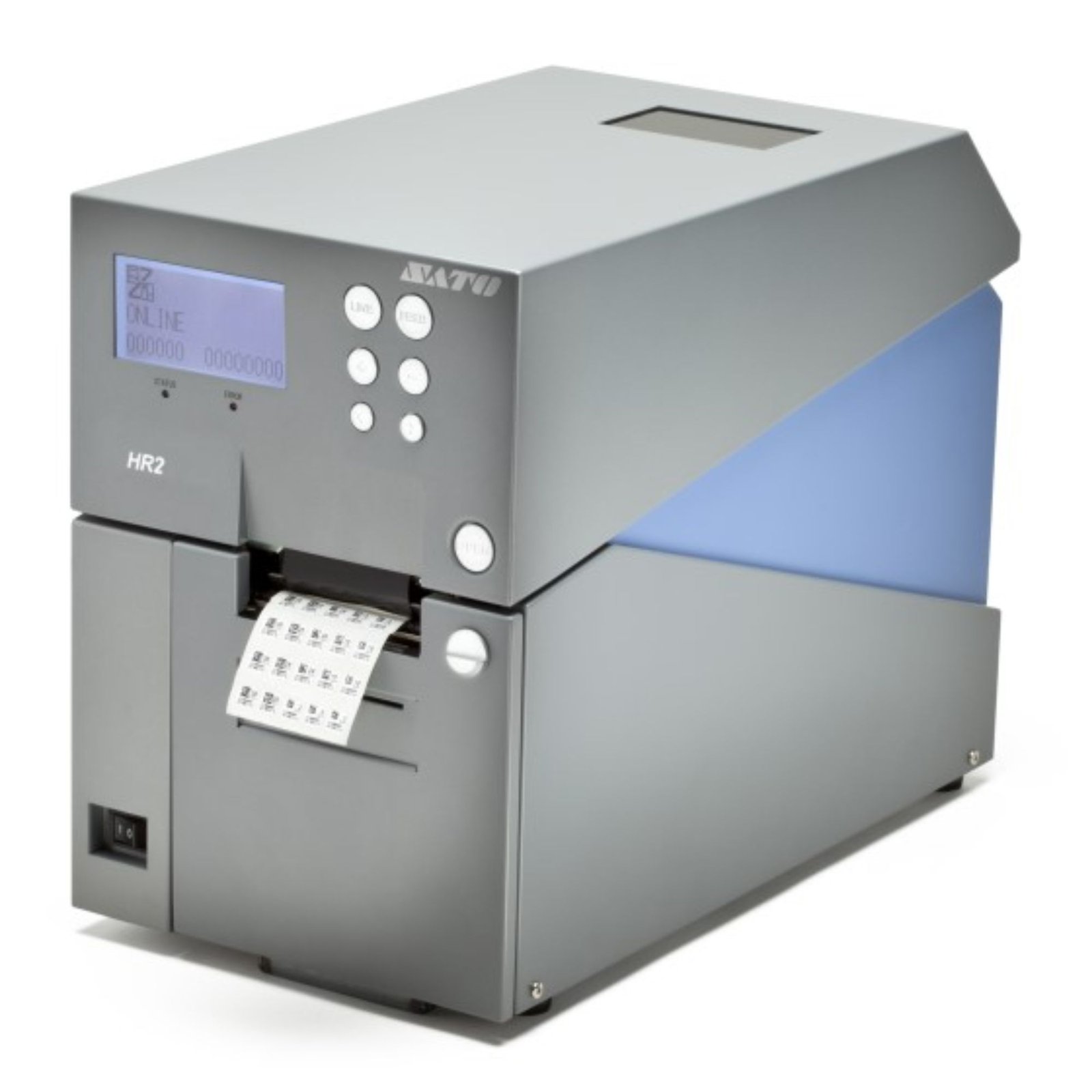

SATO HR224 609dpi TT Industrial Label Printer – WWHR30002
The SATO HR224 (code WWHR30002) is the top model in the HR2 series , offering an ultra-high resolution of 609 dpi (24 dots/mm) . Designed for applications where every detail counts, this industrial Thermal Transfer printer is ideal for very small labels, fine text and high density 2D codes.
If you need microscopic precision for traceability in electronics, automotive or medical devices, the HR224 is the professional choice.
609 dpi Resolution – Fine Detail Clarity
The HR224 is designed for high-density printing, providing superior clarity for micro-text, DataMatrix codes, QR codes and complex 1D barcodes.
- Resolution: 609 dpi (24 dots/mm)
- Maximum print width: 56 mm (2.2”)
- Technology: Thermal Transfer (TT)
- Precise printing on very small labels (≥3 mm)
It is the ideal solution for applications where readability and scannability are critical.
Stable Industrial Performance
- Print speed: 25 – 100 mm/sec (1 – 4 ips)
- Printing language: SBPL
- Flash ROM memory: 32MB
- SDRAM: 16MB
- SD Card Support: up to 2GB
The combination of high resolution and controlled speed enables precise printing without compromising on quality.

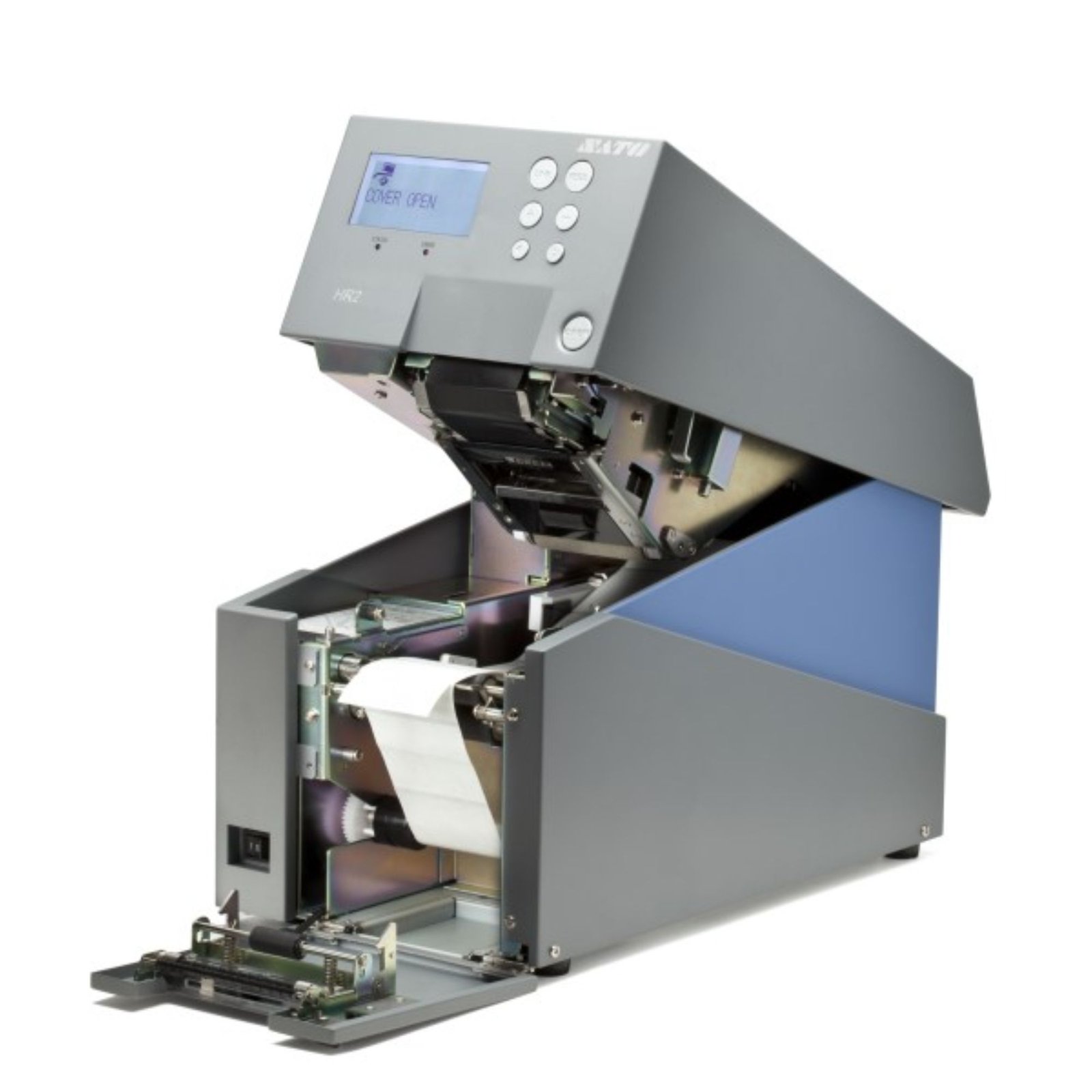

Compact Industrial Design with Integrated Dispenser
The HR224 combines industrial performance with a compact design, saving space in production areas or laboratories.
- Integrated dispenser
- Internal rewinder for liner
- Easy loading of print media
- Robust construction for intensive use
The integrated dispenser allows for fast and efficient label application in semi-automatic workflows.
Connectivity and Integration in Industrial Systems
The HR224 offers multiple interfaces for rapid integration into existing infrastructures:
- LAN to
- USB
- RS232
- EXTERNAL
It is compatible with automated production lines, ERP systems and traceability control applications.
Recommended Applications
- Electronic components and PCBs
- Automotive micro-parts labeling
- Medical devices and laboratory equipment
- Jewelry and premium products
- High-tech industry and microproduction
Technical Specifications – SATO HR224 (WWHR30002)
| Characteristic | Details |
|---|---|
| Exemplary | HR224 |
| Product code | WWHR30002 |
| Series | SATO HR2 |
| Printing method | Thermal Transfer (TT) |
| Resolution | 609 dpi (24 dots/mm) |
| Maximum print width | 56mm (2.2″) |
| Print speed | 25 – 100 mm/sec (1 – 4 fps) |
| Language | SBPL |
| Memory | Flash ROM 32MB, SDRAM 16MB |
| External storage | SD Card up to 2GB |
| INTERFACE | LAN, USB, RS232, EXT |
| Dispenser | Integrated with internal rewinder |
| Brandi | SATO |
Why choose HR224 via AutoID?
AutoID offers complete solutions for automatic identification and industrial labeling, ensuring:
- Technical consultancy for high precision applications
- Integration into existing industrial flows
- Premium compatible consumables and ribbons
- Specialized technical support
Choose the SATO HR224 609dpi when you need industrial printing at the highest level of detail and precision.
