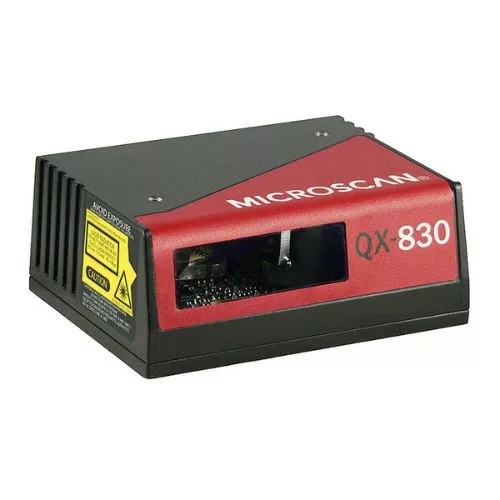

Fixed industrial 1D laser scanner Omron QX-830 FIS-0830-1005G
MSRP: 2445 € ex. VAT
2.958,45 € incl. VAT
Omron FIS-0830-1005G – QX-830 fixed laser scanner, Raster Line, Medium Density, Serial & Ethernet, IP54, up to 1400 scans/sec, for industrial applications.
1 in stock
Omron FIS-0830-1005G – Fixed 1D Laser Scanner, Raster Line, Medium Density, Serial & Ethernet
Omron FIS-0830-1005G is a industrial fixed laser scanner from the QX-830 series, designed for reading medium density 1D codes in dynamic applications. The Raster Line (10 lines) configuration offers increased tolerance for code positioning, and the Serial & Ethernet interfaces allow for rapid integration into modern production and logistics networks.
🔥 Key Benefits
- 📡 Raster Line, Medium Density – ideal for medium-sized codes and compact labels
- ⚡ Adjustable speed – between 300 and 1400 scans/second
- 🌐 Serial & Ethernet Connectivity – RS-232/422/485 + Ethernet TCP/IP and EtherNet/IP
- 🎯 Reading distance – from a few cm to 304 mm, depending on the size bar
- 🛡️ Industrial construction – IP54 die-cast aluminum housing
- 💡 Instant visual feedback – LEDs and 360° visible green signal
- 🛠️ Quick assembly and configuration – Quick Connect, ESP Easy Setup, EZ button
📦 Typical applications
- 🏭 Industrial production – parts and subassemblies traceability
- 📦 Packaging and sorting – MD code scanning on fast flows
- 🚚 Logistics – label verification in warehouses and distribution
- 🔌 Electronics – reading medium codes on plates and components
📐 General specifications – FIS-0830-1005G
| Feature | Details |
|---|---|
| Model | Omron QX-830 FIS-0830-1005G |
| Scan type | Raster Line (10 lines), Medium Density |
| Symbols supported | Code 39, Code 128, UPC, EAN, Interleaved 2 of 5, Codabar, PDF417, MicroPDF, GS1 Databar |
| Scanning speed | 300 – 1400 scans/sec |
| Reading distance | ex. .0075″ at 64–140 mm, .015″ to 216 mm, .030″ to 304 mm |
| Interface | Serial (RS-232/422/485) + Ethernet TCP/IP & EtherNet/IP |
| Housing | Die cast aluminum, IP54 |
| Dimensions | 88 × 66 × 35 mm |
| Weight | 212 g |
| Operating temperature | 0° – 50°C |
| Laser light | Laser diode, 655 nm, Class 2 |
