Display Digital Signage 86″ 4K UHD, Android 11, Wi-Fi, USB, 24/7 – iiyama LH8664UHS-B2AG
2.238,50 € incl. VAT
iiyama ProLite LH8664UHS-B2AG professional display, 86” 4K UHD, 500 cd/m², IPS panel, Android 11, iiSignage², FailOver, WiFi, 2x16W speakers and 24/7 operation, ideal for digital signage in retail and corporate.
Professional 86″ 4K UHD Display, Android 11, FailOver, 24/7 Digital Signage – iiyama ProLite LH8664UHS-B2AG
iiyama ProLite LH8664UHS-B2AG is a professional 86″ 4K UHD display, specially designed for 24/7 digital signage projects in retail, corporate, hospitality, transportation or education. The impressive size and Ultra HD resolution (3840 x 2160) transform your content into spectacular visual experiences, easy to notice even in large or very crowded spaces.
The IPS panel with Anti-Glare glass, matte finish and 25% haze offers natural colors, a very wide viewing angle (178°/178°) and a brightness of 500 cd/m², so the image remains clear and readable from almost any position. The static contrast of 1200:1 and support for 1.07 billion colors ensure balanced blacks and fine details in bright and dark areas, ideal for promotional videos, brand graphics, digital menus or orientation information.
The display runs Android 11, which turns it into an all-in-one player: you can directly install digital signage applications, media players or custom solutions, without an external media player. The integrated iiSignage² (CMS) platform gives you complete control over your content – create layouts, schedule campaigns, manage playlists and remotely manage your entire fleet of screens, securely via LAN or WiFi.
The Signal FailOver feature ensures that you never see a “no signal” message or a black background on your screen. If the primary signal source is no longer available, the ProLite LH8664UHS-B2AG automatically switches to the next set source (including Browser, Media Player or a custom source), so your content stays displayed non-stop – crucial for information boards, storefronts, wayfinding or permanent advertising campaigns.
In terms of connectivity, the display is ready for modern AV infrastructures: it has 3 x HDMI 2.0 for 4K @ 60Hz signal, inputs for audio (mini-jack) and control (RS-232c, LAN RJ45, IR in/out), plus 2 x USB 2.0 for local media playback or content updates. The integrated 2 x 16 W speakers provide powerful sound, sufficient for most commercial and corporate installations, without necessarily needing external speakers.
Dual-band WiFi (2.4 / 5 GHz) connectivity is integrated, so you can easily deliver and update content over the network, without additional cables. With the EShare app, mirroring from a laptop, tablet or smartphone becomes simple and fast, which makes this model also recommended for meeting rooms, conferences or impactful presentations on a very large screen.

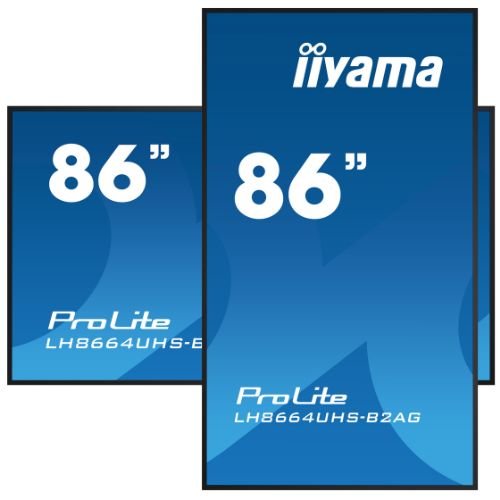

The construction with metal casing, thin bezel design and fanless architecture makes the ProLite LH8664UHS-B2AG robust, silent and suitable for intensive operation. The screen can be mounted both landscape and portrait, with VESA 800 x 600 mm mounting, and the package also includes a wall mounting kit, which simplifies installation in large projects: digital totems, information panels, reception screens or large video walls.
The model is designed for 24/7 non-stop operation, has anti image retention protection, a MTBF of 50,000 hours and typical consumption of 145 W, offering a very good balance between performance, reliability and total cost of ownership. If you need a huge, 4K display, with Android 11, FailOver, WiFi and integrated CMS, the iiyama ProLite LH8664UHS-B2AG, available via AutoID, is a very solid solution for long-term professional digital signage projects.
Technical specifications
| Parameter | Value |
|---|---|
| Model | iiyama ProLite LH8664UHS-B2AG |
| Product type | LFD – Professional display for digital signage |
| Screen diagonal | 85.6″ / 217.4 cm |
| Native resolution | 3840 × 2160 @ 60Hz (4K UHD, 8.3 Megapixels) |
| Aspect ratio | 16:9 |
| Panel type | IPS, AG coated glass, matte finish, 25% haze |
| Panel brightness | 500 cd/m² |
| Contrast static | 1200:1 |
| Response Time (GTG) | 8 ms |
| Viewing Angle | 178°/178° (right/left 89°/89°, up/down 89°/89°) |
| Color Support | 1.07 billion (8-bit + FRC), NTSC 72% |
| Horizontal Frequency | 28 – 160 kHz |
| Viewable area (W × H) | 1895 × 1066 mm, 74.6 × 41.9″ |
| Pixel pitch | 0.493 mm |
| Bezel width (left / top / bottom) | 14 mm / 14 mm / 16 mm |
| Bezel color and finish | Black, matte |
| Material casing (bezel) | Metal |
| Digital video inputs | 3 × HDMI 2.0 (max. 3840 × 2160 @ 60Hz) |
| Audio input | 1 × 3.5 mm mini-jack |
| Monitor control inputs | 1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN), 1 × IR (3.5 mm) |
| Output audio | 1 × 3.5 mm mini-jack |
| Built-in speakers | 2 × 16 W |
| USB ports | 2 × USB 2.0 |
| HDCP compatibility | HDCP 1.4 & 2.2 |
| Integrated operating system | Android 11 OS |
| Integrated software | iiSignage² (CMS), FailOver, EShare |
| Wireless connectivity | Integrated WiFi (2.4 / 5 GHz) |
| Internal hardware | SoC MT9630, CPU: ARM Cortex-A73 × 4, GPU: G52 MP2 |
| RAM memory / storage internal | 2 GB RAM, 16 GB ROM |
| FailOver function | Yes, automatic switching between sources (incl. Browser, Media Player, Custom) |
| Media playback | Yes |
| Anti image retention | Yes |
| Recommended use | Digital signage, retail, corporate, hospitality, education |
| Orientation | Landscape / Portrait |
| Fanless design | Yes |
| Maximum operating time | 24/7, non-stop |
| VESA mount | 800 × 600 mm (wall mounting kit included) |
| Operating temperature | 0°C – 40°C |
| Storage temperature | -20°C – 60°C |
| MTBF (excluding backlight) | 50,000 hours |
| Power | AC 100 – 240 V, 50/60 Hz |
| Power supply | Internal |
| Power consumption (typical) | 145 W, 0.5 W stand-by, 0.3 W off mode |
| Efficiency class energy | F (Regulation (EU) 2017/1369) |
| Product dimensions (W × H × D) | 1938 × 1109 × 79.5 mm |
| Packaging dimensions (W × H × D) | 2125 × 1275 × 275 mm |
| Weight without packaging | 47.9 kg |
| Weight with packaging | 62.2 kg |
| Cables included | Power cable (1.8 m), HDMI cable (1.8 m), RS-232c cable (1.8 m) |
| Guides included | Quick Start Guide, Safety Guide |
| Other accessories | Wall bracket, mounting guide, screws, dowels, hole stickers |
| Remote control | Yes, included (with batteries) |
| Certifications | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| EAN code | 4948570124916 |
