Display Digital Signage 75″ 4K UHD Android 11, HDMI/DP, Wi-Fi, SDM Slot, 24/7 – iiyama LH7575UHS
1.898,49 € incl. VAT
iiyama ProLite LH7575UHS-B2AG professional display, 75” 4K UHD, 500 cd/m², Android 11, iiSignage², FailOver, WiFi and Intel SDM-L slot, 24/7 operation, ideal for advanced digital signage applications.

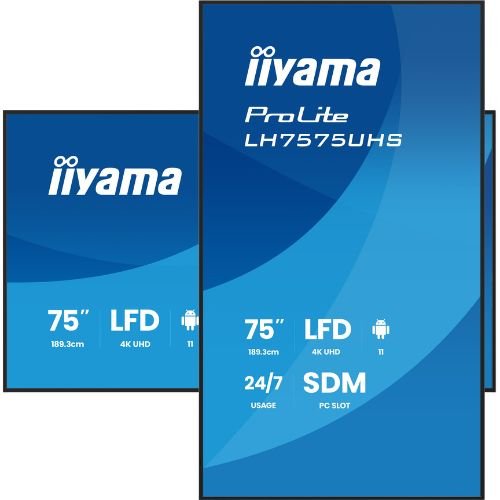

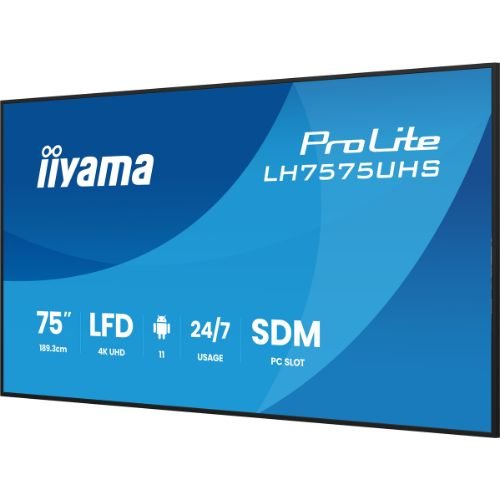

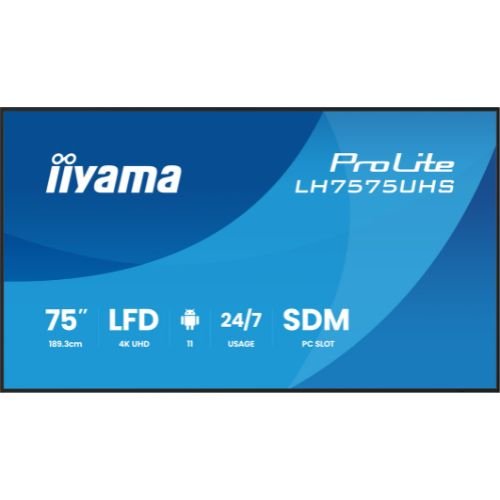

Professional Display 75″ 4K UHD, Android 11, FailOver, 24/7, Digital Signage – iiyama ProLite LH7575UHS-B2AG
iiyama ProLite LH7575UHS-B2AG is a professional display of 75” 4K UHD, created for 24/7 digital signage projects in demanding environments: retail, corporate, transportation, education or HoReCa. The IPS panel with Anti-Glare glass (haze 25%) and 500 cd/m² brightness offers clear images, uniform colors and excellent visibility even in brightly lit spaces.
Thanks to the Android 11 operating system, this display becomes a true all-in-one player: you can directly install the necessary applications (media players, signage solutions, custom applications), without the need for an external media player. The integrated iiSignage² (CMS) platform allows you to create, schedule and remotely manage the displayed content, so that all screens in the network are updated quickly and securely.
The intelligent Signal FailOver function ensures that your messages do not disappear from the screen. If the main source fails, the display automatically switches to the next prioritized source (including Browser, Media Player or custom sources), ensuring continuous display of content – essential for critical information or ongoing campaigns.

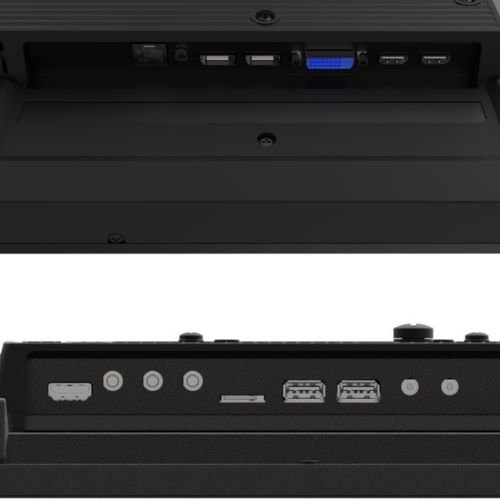

The connectivity is designed for modern AV infrastructures: 3 x HDMI 2.0, 1 x DisplayPort in, 1 x DisplayPort out with MST (daisy-chain) for video walls, LAN, RS-232, IR, USB, audio out. With DisplayPort Out you can daisy-chain multiple displays and create multi-display installations without expensive additional equipment.
The integrated WiFi (802.11ac) and the Intel® SDM-L slot give you maximum flexibility: you can add an embedded PC for complex applications or manage content wirelessly, via the internal network. With the iiControl (DMS), iiShare and EShare applications, the display also becomes an excellent tool for meeting rooms and classrooms, allowing wireless screen sharing from a laptop, tablet or smartphone.
The metal housing, slim bezel design, fanless construction and landscape or portrait mounting options make the ProLite LH7575UHS-B2AG an ideal choice for digital totems, information boards, digital menus or advertising screens in storefronts and high-traffic spaces. It is designed for non-stop, 24/7 operation, with high reliability and anti image retention protection for long-term intensive use.
If you need a large screen with high-quality 4K image, intelligent Android platform, integrated CMS, FailOver and full connectivity for digital signage, the iiyama ProLite LH7575UHS-B2AG is a robust and scalable solution for professional projects.
Technical specifications
| Parameter | Value |
|---|---|
| Model | iiyama ProLite LH7575UHS-B2AG |
| Product type | LFD – Professional display for digital signage |
| Diagonal | 75″ / 189.3 cm |
| Native resolution | 3840 × 2160 @ 60Hz (4K UHD, 8.3 MegaPixels) |
| Aspect ratio | 16:9 |
| Panel type | IPS, Anti-Glare Coated Glass, haze 25% |
| Brightness | 500 cd/m² |
| Contrast static | 1200:1 |
| Response Time (GTG) | 8 ms |
| Viewing Angle | 178°/178° (89° left/right, 89° up/down) |
| Color Support | 1.07 billion (8-bit + FRC, NTSC 72%) |
| Horizontal Frequency | 28 – 160 kHz |
| Viewable Area (W × H) | 1650 × 928 mm, 65 × 36.5″ |
| Bezel Width (Left / Top / Bottom) | 15 mm / 15.25 mm / 15.25 mm |
| Pixel Pitch | 0.429 mm |
| Bezel Color and Finish | Black, mat |
| Digital video inputs | 3 × HDMI 2.0 (max. 3840×2160 @60Hz, ARC on HDMI #3) |
| DisplayPort input | 1 × DisplayPort 1.2 (max. 3840×2160 @60Hz) |
| Monitor control inputs | 1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN), 1 × IR (3.5 mm) |
| Video output DisplayPort | 1 × DisplayPort (max. 3840×2160 @60Hz, MST-out Daisy Chain v1.2) |
| Monitor control outputs | 1 × RS-232c (2.5 mm sub-mini jack), 1 × IR loop-through (3.5 mm) |
| Audio output | 1 × 3.5 mm jack |
| Integrated speakers | 2 × 10 W |
| USB Ports | 2 × USB 2.0 |
| Integrated operating system | Android 11 OS |
| Integrated software | iiSignage², iiControl, iiShare, EShare, FailOver |
| Wireless connectivity | Integrated WiFi 802.11ac |
| Internal hardware | CPU: A311D2 Octa-core (A73×4 + A53×4), GPU: G52 MP8, RAM: 4 GB, ROM: 32 GB |
| Expansion slot | Intel® SDM-L, microSD slot |
| FailOver function | Yes, automatic switching between sources (incl. Browser, Media Player, Custom) |
| Media playback | Yes |
| Videowall / Daisy-chain | Yes, from any source (MST-out via DP-Out) |
| Construction case | Metal |
| OSD Languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, NB |
| Physical Buttons | Power (long press for Quick Menu) |
| Plug & Play | DDC2B |
| Orientation | Landscape / Portrait |
| Fanless design | Yes |
| Anti image retention protection | Yes |
| Maximum operating time | 24/7, non-stop |
| VESA mount | 600 × 400 mm |
| Mini PC Mounting | VESA 75 × 75, VESA 100 × 100 |
| Operating Temperature Range | 0°C – 40°C |
| Storage Temperature Range | -20°C – 60°C |
| MTBF (excluding backlight) | 44,000 hours |
| Power Supply | AC 100 – 240 V, 50/60 Hz |
| Power supply | Internal |
| Power consumption | 187 W (typical), 0.5 W stand-by, 0.3 W off mode |
| Energy efficiency class (EU 2017/1369) | G |
| Product dimensions (W × H × D) | 1679.5 × 958.5 × 55 mm |
| Package dimensions (W × H × D) | 1883 × 1140 × 186 mm |
| Weight without packaging | 29.5 kg |
| Weight with packaging | 41 kg |
| HDCP standard | HDCP 2.2 |

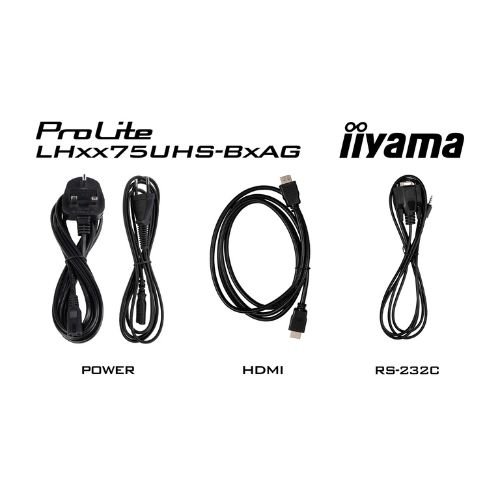

| Cables included | Power cable (1.8 m), HDMI (1.8 m), RS-232c (1.8 m) |
| Guides included | Quick Start Guide, Safety Guide |
| Other accessories | Screw hole stickers, cable clamps |
| Remote control | Yes, included (with batteries) |
| Certifications | CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH |
| Code EAN | 4948570125272 |
