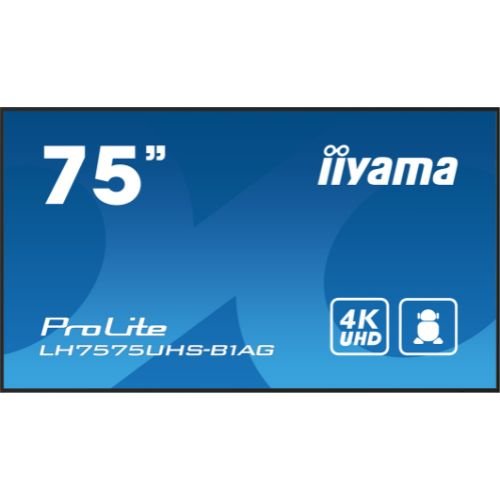

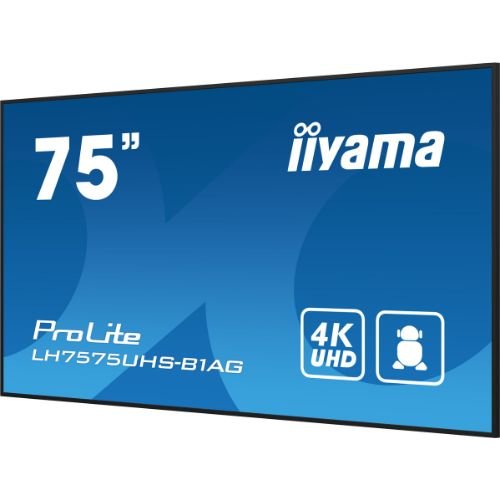

Display Digital Signage 75″ 4K UHD Android 11, HDMI/DP, SDM Slot, Wi-Fi, 24/7 – iiyama LH7575UHS
iiyama ProLite LH7575UHS-B1AG professional display, 75” 4K UHD, 500 cd/m², Android 11, iiSignage², FailOver, WiFi and Intel SDM-L slot, 24/7 operation, ideal for digital signage projects in retail, corporate and education.
Professional Display 75″ 4K UHD, Android 11, FailOver, 24/7 Digital Signage – iiyama ProLite LH7575UHS-B1AG
iiyama ProLite LH7575UHS-B1AG is a professional display of 75″ 4K UHD, designed for 24/7 digital signage applications in environments such as retail, corporate, transportation, education or HoReCa. The IPS panel with AG (Anti-Glare) glass, matte finish and 25% haze, together with a brightness of 500 cd/m² and static contrast of 1200:1, provides clear, legible images and uniform colors even in brightly lit spaces.
Thanks to the Android 11 operating system, the display works as an all-in-one player: you can directly install media playback applications, digital signage solutions or custom applications, without an external media player. The integrated iiSignage² (CMS) platform allows you to centrally create and manage content, schedule campaigns and easily update all screens in the network, securely.
The intelligent Signal FailOver function ensures continuous display of content: when there is no longer a signal on the main input, the display automatically switches to the next available source (including Browser, Media Player or custom sources). This way, your messages always remain visible, a major advantage for critical displays, information panels or digital menus.

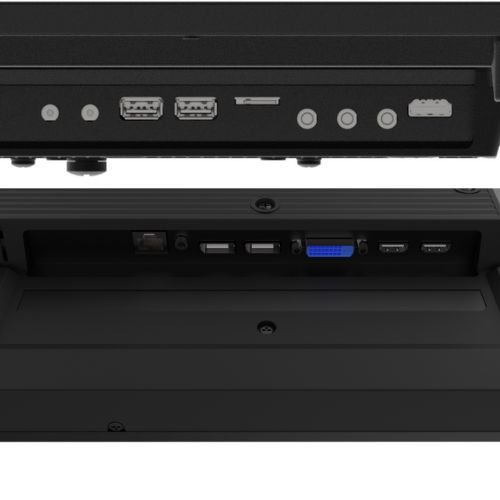

Professional connectivity features include 3 x HDMI 2.0, 1 x DisplayPort 1.2 (in) and 1 x DisplayPort MST-out for daisy-chaining in multi-display or videowall configurations. In addition, LAN (RJ45), RS-232c, IR in/out, 2 x USB 2.0 and 3.5 mm audio jack output allow for easy integration into complex AV infrastructures. Integrated WiFi (802.11ac) facilitates content distribution over the network without additional cables.
The Intel® SDM-L slot and microSD slot provide flexibility for integrating an embedded PC or expanding storage, increasing security and control over the display platform. With support for media playback, video wall / daisy-chain function, fanless design, anti image retention protection and a declared operating time of 24/7, the ProLite LH7575UHS-B1AG is designed for intensive, non-stop use.
The thin bezel design and metal casing make it suitable for both single installations and for integrated solutions in furniture, digital totems or information panels. It can be mounted landscape or portrait using the VESA 600 x 400 mm mount, and the relatively low weight for a 75″ diagonal facilitates professional installation.
If you need a large display with 4K UHD resolution, Android 11 platform, integrated CMS, FailOver, WiFi and Intel SDM-L slot, the iiyama ProLite LH7575UHS-B1AG represents a complete and reliable solution for modern digital signage and professional display projects.
Technical specifications
| Parameter | Value |
|---|---|
| Model | iiyama ProLite LH7575UHS-B1AG |
| Product type | LFD – Professional display for digital signage |
| Diagonal | 75″ / 189.3 cm |
| Native resolution | 3840 × 2160 @ 60Hz (4K UHD, 8.3 MegaPixels) |
| Aspect ratio | 16:9 |
| Panel type | IPS, AG coated glass, matte finish, haze 25% |
| Brightness | 500 cd/m² |
| Static contrast | 1200:1 |
| Response time (GTG) | 8 ms |
| Viewing angle | 178°/178° (89° left/right, 89° up/down) |
| Color support | 1.07 billion (8-bit + FRC, NTSC 72%) |
| Horizontal frequency | 28 – 160 kHz |
| Viewable area (W × H) | 1650 × 928 mm, 65 × 36.5″ |
| Bezel width (left / top / bottom) | 14.9 mm / 14.9 mm / 14.9 mm |
| Pixel pitch | 0.429 mm |
| Bezel color and finish | Black, matte |
| Digital video inputs | 3 × HDMI 2.0 (max. 3840×2160 @60Hz, ARC on HDMI #3) |
| DisplayPort input | 1 × DisplayPort 1.2 (max. 3840×2160 @60Hz) |
| Video outputs | 1 × DisplayPort (max. 3840×2160 @60Hz, MST-out Daisy Chain v1.2) |
| Monitor control inputs | 1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN), 1 × IR (3.5 mm) |
| Control outputs monitor | 1 × RS-232c (2.5 mm sub-mini jack), 1 × IR loop-through (3.5 mm) |
| Audio output | 1 × 3.5 mm jack |
| Integrated speakers | 2 × 10 W |
| USB Ports | 2 × USB 2.0 |
| Integrated operating system | Android 11 OS |
| Software integrated | iiSignage², FailOver, EShare |
| Wireless connectivity | Integrated WiFi 802.11ac |
| Internal hardware | CPU: A73×4 + A53×4, RAM: 4 GB, Storage: 32 GB |
| Expansion slot | Intel® SDM-L, microSD slot |
| FailOver function | Yes, automatic switching between sources (incl. Browser, Media Player, Custom) |
| Media playback | Yes |
| Videowall / Daisy-chain | Yes, via DisplayPort MST-out |
| Case construction | Metal |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, NB |
| Buttons physical | Power |
| Plug & Play | DDC2B |
| Orientation | Landscape / Portrait |
| Fanless design | Yes |
| Anti image retention protection | Yes |
| Maximum operating time | 24/7, non-stop |
| VESA mount | 600 × 400 mm |
| Mini PC mount | VESA 100 × 100 |
| Operating temperature range | 0°C – 40°C |
| Storage temperature range | -20°C – 60°C |
| MTBF (excluding backlight) | 44,000 hours |
| Power | AC 100 – 240 V, 50/60 Hz |
| Power supply | Internal |
| Power consumption | 189 W (typical), 0.5 W stand-by, 0.5 W off mode |
| Energy efficiency class (EU 2017/1369) | G |
| Product dimensions (W × H × A) | 1679.5 × 958.5 × 55 mm |
| Package dimensions (W × H × D) | 1883 × 1140 × 186 mm |
| Weight without packaging | 29.5 kg |
| Weight with packaging | 41 kg |
| HDCP standard | HDCP 2.2 |
| Cables Included | Power Cable, HDMI Cable, RS-232c Cable |
| Guides Included | Quick Start Guide, Safety Guide |
| Other Accessories | Screw Hole Stickers, Cable Clips |
| Remote Control | Yes, included (with batteries) |
| Certifications | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| EAN code | 4948570123483 |
