Display Digital Signage 75″ 4K UHD, 800cd/m², Android 11, Wi-Fi, 24/7 – iiyama LH7565UHSB
1.898,49 € incl. VAT
iiyama ProLite LH7565UHSB-B1 professional display, 75” 4K UHD, 800 cd/m², IPS panel, Android 11, iiSignage², FailOver, WiFi and 24/7 operation, ideal for digital signage projects in retail and corporate.
Professional Display 75″ 4K, 800 cd/m², Android 11, 24/7 Digital Signage – iiyama ProLite LH7565UHSB-B1
iiyama ProLite LH7565UHSB-B1 is a professional display of 75″ 4K UHD, from the vivid-bright range, designed to make your messages impossible to ignore. With a brightness of 800 cd/m², the screen is ideal for shop windows, very bright spaces, reception halls or high-traffic areas, where you need the image to be clear and visible at all times.
The IPS panel with 1% haze offers natural colors, wide viewing angles (178°/178°) and a uniform image, regardless of the viewer’s position. The 4K UHD (3840 x 2160) resolution flawlessly renders fine text, brand logos, menu graphics or high-quality video content, transforming the display into a premium support for visual communication.
The display runs Android 11, so it works as an all-in-one player: you can directly install digital signage applications, media players or custom applications, without an external media player. The integrated iiSignage² (CMS) platform gives you complete control over your content – create layouts, schedule campaigns, manage playlists and remotely manage your entire fleet of displays, in a safe and efficient way.
The Signal FailOver function ensures that “no signal” messages or black screens never appear on the display. If the primary video source fails, the display automatically switches to the next priority input (including Browser, Media Player, or custom sources), so your content keeps playing – a key advantage for mission-critical applications, information boards, or 24/7 advertising.
When it comes to connectivity, the ProLite LH7565UHSB-B1 offers exactly what you need in a modern digital signage project:
- 2 x HDMI 2.0 and 1 x DisplayPort 1.2 for 4K @ 60Hz video signal
- LAN (RJ45) and RS-232c for remote control and management
- 2 x USB 2.0 for local media playback and content updates
- 3.5 mm audio jack output and integrated 2 x 10 W speakers for audio.
The integrated WiFi (802.11ac) module simplifies distribution network content – you can do without additional cables and use content management applications directly wirelessly. With the iiControl, iiShare and EShare applications, the display can also be used for presentations, collaboration and wireless screen sharing in meeting rooms or education.
The metal casing construction, thin bezel design and fanless architecture recommend the ProLite LH7565UHSB-B1 for intensive, discreet and quiet operation in commercial and corporate environments. The display can be mounted in both landscape and portrait positions, using the VESA 600 x 400 mm mount, making it ideal for digital totems, information boards, digital menus or large orientation screens.
It is designed for non-stop, 24/7 operation, has a MTBF of 50,000 hours and a typical consumption of 107 W, which means high reliability and optimized operating costs. If you need an ultra-bright 75″ 4K display with Android 11, integrated CMS, FailOver and WiFi, the iiyama ProLite LH7565UHSB-B1 is an excellent solution for modern and demanding digital signage installations.
Technical specifications
| Parameter | Value |
|---|---|
| Model | iiyama ProLite LH7565UHSB-B1 |
| Type product | LFD – Vivid-bright professional display for digital signage |
| Diagonal | 74.5″ / 189 cm (segment 75″) |
| Native resolution | 3840 × 2160 @ 60Hz (4K UHD, 8.3 Megapixels) |
| Aspect ratio | 16:9 |
| Panel type | IPS, haze 1% |
| Panel Brightness | 800 cd/m² |
| Static Contrast | 1200:1 |
| Response Time (GTG) | 8 ms |
| Viewing Angle | 178°/178° (Right/Left 89°/89°, Up/Down 89°/89°) |
| Support colors | 1.07 billion (8-bit + FRC), NTSC 72% |
| Horizontal frequency | 28 – 160 kHz |
| Viewable area (W × H) | 1650 × 928 mm, 65 × 36.5″ |
| Pixel pitch | 0.429 mm |
| Bezel width (left / top / bottom) | 14.9 mm / 14.9 mm / 14.9 mm |
| Bezel color and finish | Black |
| Digital video inputs | 2 × HDMI 2.0 (max. 3840 × 2160 @ 60Hz) |
| DisplayPort input | 1 × DisplayPort 1.2 (max. 3840 × 2160 @ 60Hz) |
| Monitor control inputs | 1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN) |
| Audio output | 1 × 3.5 mm mini jack (stereo) |
| Built-in speakers | 2 × 10 W |
| USB ports | 2 × USB 2.0 |
| HDCP standard | HDCP 2.2 |
| Operating system built-in | Android 11 OS |
| Integrated software | iiSignage², iiControl, iiShare, FailOver, EShare |
| Wireless connectivity | Integrated WiFi (802.11ac, built-in module) |
| Internal hardware | CPU: A73 × 4 + A53 × 4; GPU: G52 MP8; RAM: 4 GB; ROM: 32 GB |
| FailOver function | Yes, automatic switching between sources (incl. Browser, Media Player, Custom) |
| Media playback | Yes |
| Case | Metal |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Buttons physical | Power |
| Plow & Play | DDC2B |

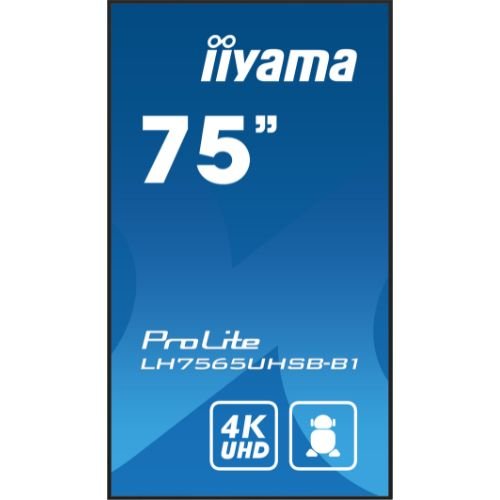

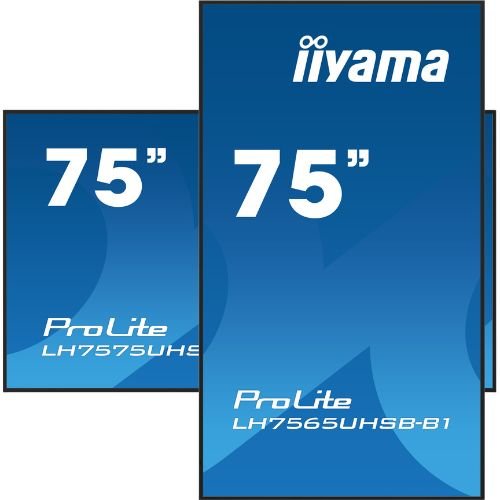

| Orientation | Landscape / Portrait |
| Fanless design | Yes |
| Anti image retention protection | Yes |
| Maximum operating time | 24/7, non-stop |
| VESA mount | 600 × 400 mm |
| Operating temperature range | 0°C – 40°C |
| Storage temperature range | -20°C – 60°C |
| MTBF (excluding backlight) | 50,000 hours |
| Power supply | AC 100 – 240 V, 50/60 Hz |
| Power source power | Internal |
| Power consumption (typical) | 107 W, 0.5 W stand-by, 0.3 W off mode |
| Energy efficiency class | E (Regulation (EU) 2017/1369) |
| Product dimensions (W × H × D) | 1679.5 × 958.5 × 55 mm |
| Packaging dimensions (W × H × A) | 1883 × 1140 × 186 mm |
| Weight without packaging | 29 kg |
| Weight with packaging | 40.5 kg |

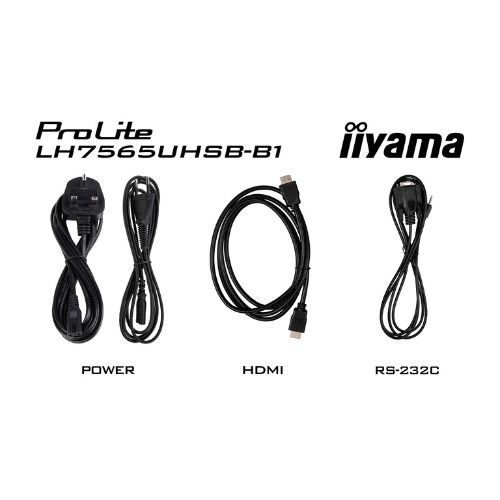

| Cables included | Power cable (1.8 m), HDMI cable (1.8 m), RS-232c cable (1.8 m) |
| Guides included | Quick Start Guide, Safety Guide |
| Other accessories | Screw hole stickers, cable ties, AC switch cover |
| Remote control | Yes, included (with batteries) |
| Certifications | CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA |
| Code EAN | 4948570123599 |
